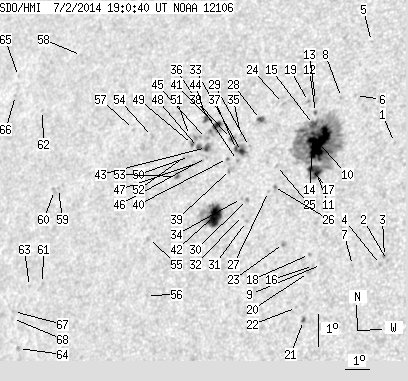

SDO HMI 2014-07-02 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.78 | 382.89 | 57.47 | 242.87 | 15.25 | 259.92 | -37.10 | 69.03 | 0.6250 | -324.3 | -138.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.38 | 15.96 | 264.58 | -32.44 | 65.81 | 0.5675 | -695.0 | -538.6 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 12.29 | 264.90 | -32.12 | 71.99 | 0.5484 | -804.0 | -659.5 | |
| 0.00 | 1.63 | 0.00 | 0.97 | 12.41 | 264.78 | -32.25 | 71.83 | 0.5506 | -761.0 | -743.6 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 12.16 | 264.66 | -32.36 | 72.33 | 0.5513 | -652.0 | -548.2 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 19.11 | 263.05 | -33.97 | 61.60 | 0.6024 | -626.0 | -541.5 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 17.39 | 262.82 | -34.21 | 64.43 | 0.5970 | -623.0 | -525.0 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 12.11 | 263.63 | -33.40 | 72.84 | 0.5654 | -579.0 | -473.8 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 17.31 | 262.29 | -34.74 | 64.83 | 0.6033 | -525.0 | -462.6 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 12.10 | 262.46 | -34.56 | 73.26 | 0.5814 | -588.0 | -524.3 | |
| 34.05 | 217.90 | 21.13 | 135.26 | 15.88 | 261.69 | -35.33 | 67.38 | 0.6048 | -1208.6 | -388.4 | |
| 7.17 | -10.00 | 4.43 | -10.00 | 14.94 | 261.80 | -35.23 | 68.84 | 0.5999 | -1017.3 | 999999 | |
| 0.54 | 1.45 | 0.34 | 0.91 | 16.81 | 261.38 | -35.65 | 66.06 | 0.6126 | -504.5 | -376.7 | |
| 0.00 | 2.09 | 0.00 | 1.31 | 17.19 | 261.30 | -35.73 | 65.51 | 0.6152 | -601.0 | -503.5 | |
| 1.45 | -10.00 | 0.91 | -10.00 | 16.15 | 261.44 | -35.59 | 67.06 | 0.6091 | -339.4 | 999999 | |
| 3.99 | -10.00 | 2.49 | -10.00 | 16.44 | 261.38 | -35.64 | 66.65 | 0.6110 | -391.6 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.39 | 12.06 | 262.16 | -34.86 | 73.43 | 0.5854 | -578.0 | -512.7 | |
| 3.45 | -10.00 | 2.14 | -10.00 | 15.06 | 261.58 | -35.45 | 68.74 | 0.6031 | -812.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 12.40 | 261.96 | -35.07 | 72.95 | 0.5891 | -817.0 | -595.0 | |
| 0.00 | 1.45 | 0.00 | 0.91 | 17.15 | 261.03 | -36.00 | 65.70 | 0.6184 | -519.0 | -363.9 | |
| 0.00 | 1.63 | 0.00 | 1.00 | 11.84 | 262.01 | -35.02 | 73.86 | 0.5869 | -714.0 | -588.3 | |
| 0.82 | 2.09 | 0.50 | 1.27 | 10.36 | 262.02 | -35.01 | 76.35 | 0.5829 | -655.3 | -569.9 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 10.75 | 261.70 | -35.33 | 75.78 | 0.5882 | -450.0 | -476.6 | |
| 0.00 | 2.18 | 0.00 | 1.35 | 12.71 | 260.91 | -36.12 | 72.80 | 0.6041 | -811.0 | -731.2 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 17.06 | 260.06 | -36.97 | 66.29 | 0.6302 | 720.0 | 586.3 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 15.12 | 260.20 | -36.83 | 69.22 | 0.6212 | -642.0 | -486.3 | |
| 0.00 | 0.73 | 0.00 | 0.46 | 14.46 | 260.21 | -36.82 | 70.25 | 0.6188 | -630.0 | -674.5 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 14.30 | 260.04 | -36.98 | 70.56 | 0.6204 | -466.0 | -388.4 | |
| 2.36 | 5.90 | 1.52 | 3.79 | 16.53 | 259.26 | -37.77 | 67.43 | 0.6381 | 859.5 | 588.3 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 15.67 | 259.00 | -38.02 | 68.83 | 0.6382 | 521.0 | 502.7 | |
| 0.00 | 1.63 | 0.00 | 1.04 | 14.03 | 259.26 | -37.76 | 71.27 | 0.6296 | 758.0 | 652.5 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 13.34 | 259.35 | -37.68 | 72.30 | 0.6265 | -765.0 | -604.7 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 13.53 | 259.16 | -37.87 | 72.08 | 0.6295 | -581.0 | -410.7 | |
| 2.72 | 12.35 | 1.75 | 7.95 | 15.51 | 258.72 | -38.31 | 69.19 | 0.6413 | 942.6 | 588.4 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 14.05 | 259.02 | -38.01 | 71.32 | 0.6328 | 685.0 | 488.1 | |
| 0.00 | 0.54 | 0.00 | 0.35 | 16.04 | 258.56 | -38.47 | 68.45 | 0.6450 | 604.0 | 540.0 | |
| 0.00 | 1.27 | 0.00 | 0.82 | 15.22 | 258.62 | -38.41 | 69.66 | 0.6416 | 865.0 | 762.3 | |
| 1.00 | -33.00 | 0.65 | -33.00 | 15.56 | 258.50 | -38.52 | 69.19 | 0.6442 | 827.6 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.71 | 15.90 | 258.22 | -38.80 | 68.78 | 0.6487 | 783.0 | 764.3 | |
| 0.00 | 3.81 | 0.00 | 2.46 | 14.94 | 258.40 | -38.63 | 70.18 | 0.6435 | 293.0 | 204.7 | |
| 0.36 | 1.36 | 0.24 | 0.88 | 15.27 | 258.20 | -38.83 | 69.73 | 0.6470 | 737.8 | 653.2 | |
| 3.99 | 12.35 | 2.62 | 8.11 | 16.29 | 257.52 | -39.51 | 68.47 | 0.6587 | 804.0 | 724.3 | |
| 21.34 | 39.04 | 13.78 | 25.26 | 13.49 | 258.04 | -38.98 | 72.49 | 0.6437 | -912.0 | -144.2 | |
| 2.54 | 10.44 | 1.67 | 6.87 | 15.59 | 257.27 | -39.76 | 69.59 | 0.6595 | 927.5 | 736.8 | |
| 2.00 | 4.36 | 1.32 | 2.88 | 16.49 | 257.05 | -39.97 | 68.34 | 0.6651 | 622.1 | 448.0 | |
| 0.00 | 2.27 | 0.00 | 1.50 | 15.87 | 257.20 | -39.82 | 69.20 | 0.6612 | 796.0 | 679.7 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 15.28 | 257.34 | -39.69 | 70.03 | 0.6577 | 332.0 | 311.8 | |
| 0.00 | 1.63 | 0.00 | 1.07 | 15.15 | 257.16 | -39.86 | 70.28 | 0.6595 | -3.0 | 95.7 | |
| 1.54 | -43.00 | 1.02 | -43.00 | 15.58 | 256.94 | -40.09 | 69.72 | 0.6635 | 743.9 | 999999 | |
| 0.73 | 6.26 | 0.48 | 4.15 | 15.66 | 256.67 | -40.36 | 69.69 | 0.6671 | 662.0 | 613.7 | |
| 0.00 | 1.54 | 0.00 | 1.02 | 15.29 | 256.64 | -40.39 | 70.25 | 0.6664 | 835.0 | 709.8 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 15.94 | 256.48 | -40.55 | 69.35 | 0.6703 | 332.0 | 277.3 | |
| 0.00 | 0.64 | 0.00 | 0.42 | 15.25 | 256.39 | -40.63 | 70.39 | 0.6693 | 600.0 | 487.1 | |
| 0.73 | 3.18 | 0.48 | 2.11 | 14.65 | 256.28 | -40.75 | 71.30 | 0.6690 | 863.1 | 703.4 | |
| 0.00 | 1.91 | 0.00 | 1.30 | 15.86 | 254.93 | -42.09 | 69.97 | 0.6886 | -794.0 | -610.1 | |
| 0.00 | 1.91 | 0.00 | 1.28 | 12.69 | 255.48 | -41.54 | 74.39 | 0.6740 | -703.0 | -545.3 | |
| 0.00 | 1.36 | 0.00 | 0.90 | 10.94 | 255.72 | -41.30 | 76.93 | 0.6676 | 652.0 | 470.1 | |
| 0.00 | 1.18 | 0.00 | 0.82 | 16.05 | 254.06 | -42.96 | 69.96 | 0.6994 | -641.0 | -501.8 | |
| 0.00 | 1.18 | 0.00 | 0.87 | 18.28 | 251.05 | -45.97 | 67.82 | 0.7396 | 616.0 | 542.8 | |
| 0.00 | 1.00 | 0.00 | 0.72 | 14.10 | 251.25 | -45.78 | 73.37 | 0.7276 | 571.0 | 459.3 | |
| 0.00 | 3.09 | 0.00 | 2.23 | 14.03 | 251.09 | -45.94 | 73.50 | 0.7294 | 603.0 | 400.1 | |
| 0.00 | 1.09 | 0.00 | 0.78 | 11.15 | 251.21 | -45.82 | 77.42 | 0.7232 | 647.0 | 519.2 | |
| 0.00 | 0.91 | 0.00 | 0.68 | 16.50 | 249.82 | -47.20 | 70.50 | 0.7486 | 635.0 | 508.9 | |
| 0.00 | 1.00 | 0.00 | 0.72 | 11.04 | 250.65 | -46.38 | 77.66 | 0.7296 | 426.0 | 389.1 | |
| 0.00 | 1.82 | 0.00 | 1.31 | 9.12 | 250.51 | -46.52 | 80.31 | 0.7291 | 453.0 | 360.1 | |
| 0.00 | 0.82 | 0.00 | 0.63 | 17.51 | 248.33 | -48.69 | 69.54 | 0.7669 | 425.0 | 371.1 | |
| 0.00 | 0.82 | 0.00 | 0.63 | 16.92 | 248.40 | -48.63 | 70.30 | 0.7649 | 680.0 | 588.0 | |
| 0.00 | 1.09 | 0.00 | 0.79 | 10.25 | 250.08 | -46.95 | 78.82 | 0.7353 | 378.0 | 347.2 | |
| 0.00 | 0.82 | 0.00 | 0.59 | 10.03 | 250.07 | -46.95 | 79.12 | 0.7351 | 277.0 | 222.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
