SDO HMI 2014-07-02 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.92 | 189.95 | 46.14 | 176.90 | -8.03 | 240.21 | -56.82 | 101.47 | 0.8472 | 221.5 | 100.7 | |
|
previous
or next observation for the same group /

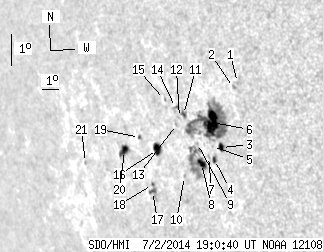

back to the solar disc SDO HMI 2014-07-02 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 1.09 | -6.19 | 242.91 | -54.12 | 99.75 | 0.8195 | 640.0 | 557.9 | |
| 0.00 | 1.82 | 0.00 | 1.57 | -6.35 | 242.67 | -54.36 | 99.91 | 0.8221 | 572.0 | 527.0 | |
| 2.81 | 4.90 | 2.52 | 4.38 | -8.25 | 241.67 | -55.36 | 102.00 | 0.8345 | 740.5 | 593.3 | |
| 1.45 | 3.00 | 1.32 | 2.72 | -8.65 | 241.20 | -55.83 | 102.38 | 0.8395 | 657.9 | 511.9 | |
| 0.00 | 0.54 | 0.00 | 0.49 | -8.24 | 241.18 | -55.85 | 101.90 | 0.8391 | 481.0 | 392.0 | |
| 22.97 | 95.97 | 20.67 | 86.68 | -7.49 | 241.28 | -55.75 | 101.03 | 0.8370 | 761.7 | 297.9 | |
| 0.00 | 1.18 | 0.00 | 1.08 | -8.57 | 240.89 | -56.14 | 102.22 | 0.8423 | 557.0 | 459.1 | |
| 4.63 | 37.50 | 4.28 | 34.95 | -8.80 | 240.44 | -56.59 | 102.42 | 0.8467 | 593.0 | -104.7 | |
| 0.00 | 1.18 | 0.00 | 1.09 | -8.19 | 240.35 | -56.67 | 101.68 | 0.8466 | 228.0 | 167.8 | |
| 0.00 | 1.00 | 0.00 | 0.95 | -9.26 | 239.35 | -57.68 | 102.74 | 0.8571 | 348.0 | 264.1 | |
| 1.36 | 3.99 | 1.28 | 3.74 | -7.32 | 239.74 | -57.28 | 100.56 | 0.8509 | 363.7 | 188.5 | |
| 0.00 | 1.27 | 0.00 | 1.20 | -7.42 | 239.49 | -57.53 | 100.64 | 0.8533 | -350.0 | -331.4 | |
| 0.00 | 1.82 | 0.00 | 1.73 | -7.65 | 239.27 | -57.76 | 100.86 | 0.8556 | -571.0 | -511.2 | |
| 0.00 | 2.91 | 0.00 | 2.75 | -7.12 | 239.32 | -57.70 | 100.26 | 0.8544 | -88.0 | -26.0 | |
| 0.00 | 1.18 | 0.00 | 1.14 | -6.90 | 238.73 | -58.30 | 99.91 | 0.8595 | -532.0 | -392.0 | |
| 6.54 | 8.35 | 6.48 | 8.28 | -8.48 | 237.95 | -59.08 | 101.60 | 0.8682 | -644.9 | -404.4 | |
| 1.91 | 8.81 | 1.94 | 8.94 | -9.82 | 237.27 | -59.76 | 103.00 | 0.8756 | -620.2 | -500.6 | |
| 0.54 | -17.00 | 0.55 | -17.00 | -9.60 | 237.34 | -59.69 | 102.76 | 0.8747 | -523.5 | 999999 | |
| 0.54 | 1.91 | 0.56 | 1.95 | -8.16 | 236.93 | -60.10 | 101.06 | 0.8763 | -397.8 | -347.9 | |
| 6.17 | 9.99 | 6.54 | 10.58 | -8.61 | 235.86 | -61.17 | 101.40 | 0.8855 | -590.0 | -358.7 | |
| 0.00 | 1.36 | 0.00 | 1.59 | -9.11 | 233.06 | -63.96 | 101.54 | 0.9072 | -360.0 | -282.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
