SDO HMI 2014-07-02 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.86 | 243.14 | 77.18 | 551.85 | -8.16 | 220.46 | -76.57 | 99.10 | 0.9751 | 303.9 | 42.3 | |
|
previous
or next observation for the same group /

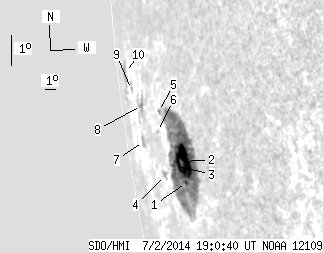

back to the solar disc SDO HMI 2014-07-02 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.54 | 216.09 | 3.19 | 452.17 | -9.03 | 221.64 | -75.39 | 100.09 | 0.9717 | 263.9 | 101.5 | |
| 32.96 | -1.00 | 67.70 | -1.00 | -8.38 | 221.66 | -75.37 | 99.42 | 0.9714 | 439.6 | 999999 | |
| 1.45 | -1.00 | 3.30 | -1.00 | -8.57 | 220.37 | -76.66 | 99.49 | 0.9765 | -551.8 | 999999 | |
| 0.00 | 3.54 | 0.00 | 9.16 | -8.97 | 218.78 | -78.24 | 99.75 | 0.9821 | -531.0 | -429.1 | |
| 0.00 | 1.54 | 0.00 | 3.79 | -6.97 | 219.08 | -77.94 | 97.75 | 0.9806 | -279.0 | -200.4 | |
| 0.00 | 1.27 | 0.00 | 3.29 | -7.62 | 218.52 | -78.51 | 98.36 | 0.9826 | -391.0 | -360.6 | |
| 0.00 | 4.18 | 0.00 | 14.84 | -8.08 | 215.60 | -81.43 | 98.60 | 0.9908 | -461.0 | -351.8 | |
| 0.91 | 7.99 | 2.99 | 26.29 | -6.93 | 216.19 | -80.83 | 97.49 | 0.9891 | -634.9 | -454.4 | |
| 0.00 | 1.36 | 0.00 | 5.54 | -6.54 | 214.31 | -82.72 | 96.96 | 0.9933 | -37.0 | -92.0 | |
| 0.00 | 7.17 | 0.00 | 36.77 | -6.08 | 213.12 | -83.91 | 96.42 | 0.9955 | 90.0 | 106.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
