SDO HMI 2014-07-02 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.35 | 19.97 | 9.48 | 24.86 | -16.23 | 232.44 | -64.58 | 109.13 | 0.9193 | -173.8 | -14.9 | |
|
previous
or next observation for the same group /

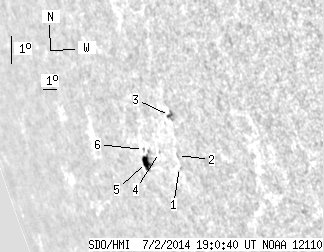

back to the solar disc SDO HMI 2014-07-02 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.64 | -16.61 | 234.11 | -62.92 | 109.88 | 0.9090 | 453.0 | 437.7 | |
| 0.00 | 1.45 | 0.00 | 1.70 | -16.22 | 234.19 | -62.83 | 109.48 | 0.9079 | 288.0 | 208.9 | |
| 0.00 | 3.72 | 0.00 | 4.29 | -14.93 | 234.34 | -62.68 | 108.11 | 0.9050 | 572.0 | 381.5 | |
| 0.00 | 0.91 | 0.00 | 1.11 | -16.19 | 232.92 | -64.11 | 109.18 | 0.9164 | 143.0 | 102.9 | |
| 7.35 | 12.44 | 9.48 | 15.96 | -16.57 | 231.70 | -65.32 | 109.35 | 0.9247 | -401.8 | -372.4 | |
| 0.00 | 0.91 | 0.00 | 1.16 | -16.15 | 231.75 | -65.28 | 108.91 | 0.9240 | -164.0 | -175.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
