SDO HMI 2014-07-02 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 127.58 | 744.34 | 86.83 | 509.88 | -19.64 | 258.19 | -37.73 | 123.16 | 0.6904 | 531.6 | 154.4 | |
|
previous
or next observation for the same group /

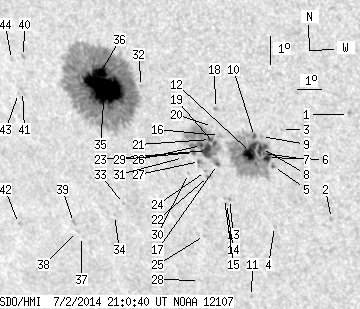

back to the solar disc SDO HMI 2014-07-02 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.68 | -19.55 | 266.09 | -29.83 | 128.86 | 0.6041 | 871.0 | 702.6 | |
| 0.00 | 1.63 | 0.00 | 1.06 | -23.07 | 264.62 | -31.29 | 132.18 | 0.6472 | 629.0 | 568.7 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -20.12 | 263.42 | -32.50 | 127.39 | 0.6372 | 580.0 | 475.4 | |
| 0.00 | 1.09 | 0.00 | 0.73 | -23.41 | 262.28 | -33.63 | 130.70 | 0.6728 | -651.0 | -419.8 | |
| 0.64 | 2.54 | 0.41 | 1.66 | -21.37 | 262.80 | -33.11 | 128.54 | 0.6527 | 773.1 | 679.5 | |
| 5.36 | 141.73 | 3.49 | 93.16 | -21.07 | 262.64 | -33.27 | 128.04 | 0.6523 | 1006.0 | 92.4 | |
| 1.45 | -6.00 | 0.95 | -6.00 | -20.94 | 262.52 | -33.40 | 127.77 | 0.6526 | 1018.5 | 999999 | |
| 6.99 | -6.00 | 4.56 | -6.00 | -20.78 | 262.48 | -33.43 | 127.53 | 0.6518 | 975.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -20.38 | 262.58 | -33.33 | 127.08 | 0.6479 | 742.0 | 608.9 | |
| 1.36 | -6.00 | 0.89 | -6.00 | -20.39 | 262.31 | -33.61 | 126.88 | 0.6509 | 682.3 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -25.86 | 260.56 | -35.35 | 132.35 | 0.7068 | -541.0 | -471.3 | |
| 15.80 | -6.00 | 10.36 | -6.00 | -20.93 | 262.01 | -33.90 | 127.37 | 0.6578 | 864.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -22.54 | 260.73 | -35.19 | 128.47 | 0.6821 | -794.0 | -624.5 | |
| 0.00 | 1.36 | 0.00 | 0.92 | -22.68 | 260.56 | -35.35 | 128.52 | 0.6847 | -584.0 | -528.2 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -22.51 | 260.53 | -35.38 | 128.29 | 0.6838 | -755.0 | -687.8 | |
| 0.00 | 2.91 | 0.00 | 1.92 | -20.40 | 260.93 | -34.99 | 125.88 | 0.6656 | -805.0 | -607.2 | |
| 1.36 | 83.08 | 0.91 | 55.64 | -21.37 | 260.58 | -35.34 | 126.89 | 0.6757 | -690.9 | -503.9 | |
| 0.00 | 1.63 | 0.00 | 1.07 | -19.50 | 261.00 | -34.92 | 124.75 | 0.6590 | -729.0 | -591.7 | |
| 1.82 | -17.00 | 1.21 | -17.00 | -20.67 | 260.65 | -35.26 | 126.04 | 0.6703 | -1004.6 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.48 | -20.10 | 260.72 | -35.19 | 125.36 | 0.6659 | -450.0 | -399.0 | |
| 1.73 | -17.00 | 1.15 | -17.00 | -20.54 | 260.53 | -35.39 | 125.79 | 0.6708 | -910.3 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.35 | -21.79 | 260.10 | -35.82 | 127.08 | 0.6834 | -791.0 | -677.0 | |
| 10.08 | -17.00 | 6.76 | -17.00 | -20.91 | 260.31 | -35.61 | 126.11 | 0.6755 | -907.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -21.62 | 260.02 | -35.89 | 126.82 | 0.6831 | -777.0 | -677.8 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -23.81 | 259.31 | -36.61 | 129.01 | 0.7045 | -614.0 | -475.8 | |
| 1.45 | -17.00 | 0.97 | -17.00 | -20.75 | 260.11 | -35.81 | 125.77 | 0.6766 | -871.5 | 999999 | |
| 0.73 | 5.36 | 0.49 | 3.62 | -21.29 | 259.88 | -36.04 | 126.30 | 0.6825 | -618.4 | -492.6 | |
| 0.00 | 0.45 | 0.00 | 0.32 | -25.37 | 258.55 | -37.37 | 130.36 | 0.7220 | -546.0 | -463.6 | |
| 1.45 | -17.00 | 0.98 | -17.00 | -21.00 | 259.72 | -36.20 | 125.81 | 0.6822 | -628.1 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -21.71 | 259.30 | -36.61 | 126.44 | 0.6910 | -298.0 | -264.3 | |
| 0.00 | 1.54 | 0.00 | 1.05 | -21.18 | 259.26 | -36.66 | 125.73 | 0.6881 | -467.0 | -315.0 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -18.87 | 258.19 | -37.73 | 122.06 | 0.6855 | 355.0 | 268.4 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -22.83 | 256.21 | -39.70 | 125.82 | 0.7285 | -402.0 | -293.5 | |
| 0.00 | 0.64 | 0.00 | 0.46 | -23.25 | 255.67 | -40.25 | 126.01 | 0.7361 | -658.0 | -462.4 | |
| 67.37 | 475.40 | 46.79 | 330.74 | -18.99 | 256.63 | -39.29 | 121.28 | 0.7029 | 1222.1 | 326.6 | |
| 9.99 | -35.00 | 6.91 | -35.00 | -18.46 | 256.61 | -39.31 | 120.59 | 0.7003 | 1304.0 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.27 | -24.03 | 253.91 | -42.01 | 125.91 | 0.7570 | -424.0 | -401.0 | |
| 0.00 | 0.91 | 0.00 | 0.69 | -23.86 | 253.79 | -42.12 | 125.65 | 0.7571 | -485.0 | -360.4 | |
| 0.00 | 1.91 | 0.00 | 1.44 | -23.56 | 253.73 | -42.18 | 125.26 | 0.7561 | -704.0 | -605.2 | |
| 0.00 | 1.45 | 0.00 | 1.05 | -18.05 | 253.45 | -42.47 | 118.37 | 0.7319 | -698.0 | -611.2 | |
| 0.00 | 2.72 | 0.00 | 2.00 | -19.21 | 253.04 | -42.88 | 119.62 | 0.7414 | -784.0 | -677.1 | |
| 0.00 | 0.91 | 0.00 | 0.72 | -23.69 | 251.15 | -44.77 | 124.05 | 0.7805 | -564.0 | -390.7 | |
| 0.00 | 0.82 | 0.00 | 0.60 | -19.29 | 252.84 | -43.08 | 119.61 | 0.7438 | -743.0 | -661.7 | |
| 0.00 | 1.09 | 0.00 | 0.80 | -18.17 | 252.88 | -43.03 | 118.25 | 0.7383 | -637.0 | -521.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
