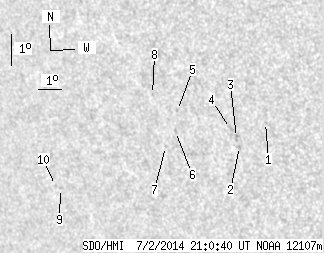

SDO HMI 2014-07-02 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.53 | 0.00 | 8.48 | -12.64 | 255.74 | -40.17 | 112.34 | 0.6819 | 352.8 | 387.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.64 | -12.11 | 258.76 | -37.15 | 113.02 | 0.6438 | 605.0 | 454.5 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -12.90 | 257.60 | -38.32 | 113.57 | 0.6617 | 751.0 | 643.0 | |
| 0.00 | 2.63 | 0.00 | 1.73 | -12.62 | 257.53 | -38.39 | 113.13 | 0.6612 | 624.0 | 614.8 | |
| 0.00 | 2.36 | 0.00 | 1.56 | -12.34 | 257.34 | -38.58 | 112.64 | 0.6623 | 666.0 | 477.2 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -11.85 | 255.28 | -40.64 | 110.98 | 0.6850 | 586.0 | 503.6 | |
| 0.00 | 1.63 | 0.00 | 1.12 | -12.52 | 255.07 | -40.85 | 111.82 | 0.6901 | 615.0 | 472.8 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -13.01 | 254.55 | -41.36 | 112.26 | 0.6980 | 350.0 | 344.7 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -11.38 | 254.33 | -41.59 | 109.93 | 0.6945 | 622.0 | 546.5 | |
| 0.00 | 0.73 | 0.00 | 0.55 | -14.53 | 249.60 | -46.31 | 112.22 | 0.7584 | -755.0 | -622.2 | |
| 0.00 | 0.73 | 0.00 | 0.55 | -14.44 | 249.40 | -46.52 | 112.03 | 0.7603 | -536.0 | -489.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
