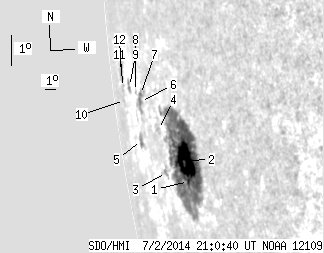

SDO HMI 2014-07-02 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.68 | 285.29 | 84.33 | 608.80 | -8.09 | 220.23 | -75.68 | 99.11 | 0.9715 | 324.4 | 32.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.45 | 245.69 | 2.78 | 479.10 | -9.03 | 221.61 | -74.31 | 100.19 | 0.9672 | 314.6 | 94.3 | |
| 38.32 | -1.00 | 73.15 | -1.00 | -8.38 | 221.62 | -74.29 | 99.52 | 0.9668 | 488.3 | 999999 | |
| 0.00 | 4.81 | 0.00 | 11.16 | -8.90 | 218.90 | -77.02 | 99.79 | 0.9779 | -507.0 | -454.2 | |
| 0.00 | 1.54 | 0.00 | 3.65 | -7.58 | 218.63 | -77.29 | 98.43 | 0.9785 | -373.0 | -346.9 | |
| 0.00 | 5.18 | 0.00 | 16.45 | -8.08 | 215.48 | -80.43 | 98.69 | 0.9883 | -412.0 | -311.4 | |
| 2.09 | 13.17 | 6.08 | 37.64 | -6.84 | 216.26 | -79.65 | 97.48 | 0.9859 | -636.5 | -482.9 | |
| 0.82 | -6.00 | 2.32 | -6.00 | -6.61 | 216.41 | -79.50 | 97.27 | 0.9854 | -573.8 | 999999 | |
| 0.00 | 0.91 | 0.00 | 2.80 | -6.56 | 215.54 | -80.37 | 97.16 | 0.9879 | -476.0 | -422.5 | |
| 0.00 | 3.81 | 0.00 | 13.59 | -6.47 | 214.41 | -81.51 | 96.98 | 0.9907 | -259.0 | -79.7 | |
| 0.00 | 0.64 | 0.00 | 2.82 | -6.99 | 212.73 | -83.19 | 97.39 | 0.9943 | 195.0 | 158.7 | |
| 0.00 | 1.73 | 0.00 | 7.48 | -6.58 | 212.89 | -83.03 | 96.99 | 0.9940 | 162.0 | 126.1 | |
| 0.00 | 7.81 | 0.00 | 34.11 | -6.09 | 212.83 | -83.09 | 96.49 | 0.9940 | 229.0 | 154.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
