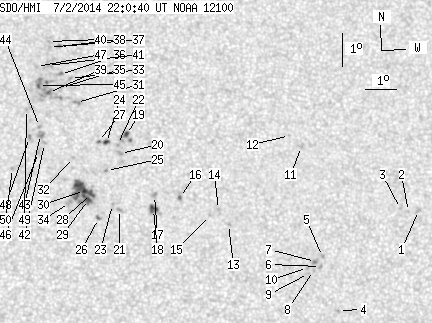

SDO HMI 2014-07-02 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.33 | 167.58 | 8.33 | 85.76 | 11.10 | 306.98 | 11.62 | 306.40 | 0.2483 | 84.9 | 324.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.09 | 0.00 | 1.65 | 9.30 | 316.67 | 21.31 | 287.41 | 0.3775 | -766.0 | -588.9 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 9.28 | 316.34 | 20.98 | 287.58 | 0.3722 | -742.0 | -603.9 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 9.38 | 316.08 | 20.72 | 288.02 | 0.3687 | -937.0 | -723.5 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 6.30 | 313.90 | 18.54 | 280.64 | 0.3229 | -764.0 | -626.2 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 7.95 | 313.45 | 18.09 | 285.98 | 0.3213 | -757.0 | -597.1 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 7.65 | 313.37 | 18.01 | 285.11 | 0.3188 | -760.0 | -672.3 | |
| 0.00 | 2.81 | 0.00 | 1.47 | 7.80 | 313.22 | 17.86 | 285.70 | 0.3170 | -1012.0 | -843.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 7.53 | 313.14 | 17.78 | 284.91 | 0.3147 | -675.0 | -596.3 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 7.44 | 312.98 | 17.62 | 284.76 | 0.3117 | -865.0 | -720.4 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 7.63 | 312.95 | 17.59 | 285.35 | 0.3120 | -911.0 | -739.2 | |
| 0.00 | 3.36 | 0.00 | 1.76 | 11.34 | 312.96 | 17.60 | 296.31 | 0.3322 | -826.0 | -588.7 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 11.68 | 312.59 | 17.23 | 297.72 | 0.3291 | -632.0 | -476.1 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 8.98 | 310.48 | 15.12 | 292.21 | 0.2794 | -807.0 | -663.5 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 9.45 | 310.18 | 14.82 | 294.15 | 0.2777 | -793.0 | -713.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 9.27 | 309.88 | 14.52 | 293.95 | 0.2720 | -608.0 | -623.2 | |
| 0.00 | 2.72 | 0.00 | 1.40 | 9.83 | 308.95 | 13.59 | 297.31 | 0.2617 | -1099.0 | -898.1 | |
| 0.00 | 2.63 | 0.00 | 1.35 | 9.90 | 308.16 | 12.80 | 298.93 | 0.2505 | -1079.0 | -833.3 | |
| 3.90 | 6.99 | 2.00 | 3.57 | 9.47 | 308.11 | 12.75 | 297.47 | 0.2464 | -1110.0 | -776.2 | |
| 1.63 | 6.99 | 0.84 | 3.58 | 11.79 | 307.35 | 11.99 | 306.96 | 0.2557 | -1019.4 | -776.1 | |
| 0.00 | 2.81 | 0.00 | 1.44 | 11.21 | 307.14 | 11.78 | 305.53 | 0.2471 | -963.0 | -823.5 | |
| 0.00 | 2.36 | 0.00 | 1.20 | 9.49 | 307.04 | 11.68 | 299.55 | 0.2305 | 723.0 | 584.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 11.48 | 307.05 | 11.69 | 306.65 | 0.2486 | -1022.0 | -888.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 9.64 | 306.82 | 11.46 | 300.60 | 0.2286 | 678.0 | 532.9 | |
| 1.54 | 3.09 | 0.79 | 1.58 | 11.55 | 306.71 | 11.35 | 307.67 | 0.2446 | -978.1 | -788.4 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 10.69 | 306.67 | 11.31 | 304.80 | 0.2357 | 991.0 | 875.8 | |
| 0.45 | 2.00 | 0.23 | 1.01 | 9.22 | 306.37 | 11.01 | 299.91 | 0.2184 | 821.0 | 688.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 11.58 | 306.45 | 11.09 | 308.39 | 0.2416 | -875.0 | -726.1 | |
| 2.27 | 38.59 | 1.15 | 19.59 | 9.99 | 306.17 | 10.81 | 303.38 | 0.2222 | 858.3 | 957.2 | |
| 2.72 | -28.00 | 1.38 | -28.00 | 9.80 | 306.07 | 10.71 | 302.91 | 0.2191 | 1083.6 | 999999 | |
| 2.18 | -28.00 | 1.11 | -28.00 | 10.08 | 305.96 | 10.59 | 304.26 | 0.2200 | 1038.9 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.35 | 12.80 | 305.81 | 10.45 | 313.89 | 0.2465 | 871.0 | 514.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.10 | 305.65 | 10.28 | 308.80 | 0.2258 | 758.0 | 591.6 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 13.54 | 305.65 | 10.29 | 316.48 | 0.2533 | 782.0 | 552.4 | |
| 0.00 | 4.63 | 0.00 | 2.35 | 9.72 | 305.47 | 10.11 | 304.05 | 0.2098 | 839.0 | 639.6 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 13.26 | 305.35 | 9.99 | 316.53 | 0.2465 | 212.0 | 183.1 | |
| 0.00 | 2.91 | 0.00 | 1.49 | 13.67 | 305.34 | 9.98 | 317.70 | 0.2512 | 848.0 | 688.1 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 14.54 | 305.35 | 9.98 | 319.99 | 0.2622 | 908.0 | 726.9 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 14.51 | 305.02 | 9.66 | 320.82 | 0.2583 | 851.0 | 707.8 | |
| 0.73 | 30.14 | 0.37 | 15.38 | 13.11 | 304.93 | 9.57 | 317.29 | 0.2398 | 1032.9 | 787.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 14.70 | 305.00 | 9.64 | 321.35 | 0.2605 | 787.0 | 659.6 | |
| 0.00 | 5.90 | 0.00 | 3.02 | 13.95 | 304.94 | 9.57 | 319.62 | 0.2503 | 879.0 | 632.5 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.54 | 304.75 | 9.38 | 312.87 | 0.2190 | 834.0 | 657.2 | |
| 0.00 | 4.90 | 0.00 | 2.49 | 11.82 | 304.63 | 9.27 | 314.16 | 0.2207 | 1016.0 | 880.6 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 12.07 | 304.61 | 9.25 | 315.04 | 0.2234 | 972.0 | 782.1 | |
| 0.91 | -39.00 | 0.46 | -39.00 | 13.33 | 304.62 | 9.26 | 318.84 | 0.2390 | 1152.2 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.27 | 304.55 | 9.19 | 312.51 | 0.2134 | 868.0 | 699.5 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 13.92 | 304.58 | 9.22 | 320.58 | 0.2461 | 836.0 | 609.6 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 11.73 | 304.28 | 8.92 | 314.95 | 0.2154 | 1075.0 | 817.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.59 | 304.22 | 8.85 | 317.93 | 0.2252 | 855.0 | 604.6 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 10.78 | 303.72 | 8.35 | 313.41 | 0.1974 | 857.0 | 701.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
