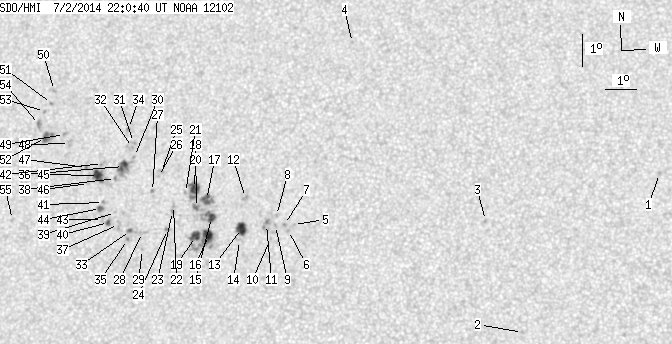

SDO HMI 2014-07-02 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.84 | 229.56 | 32.67 | 121.52 | 12.61 | 277.08 | -18.28 | 60.79 | 0.3514 | -173.5 | -124.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.78 | 13.48 | 292.72 | -2.65 | 13.93 | 0.1873 | -811.0 | -580.1 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 8.57 | 288.52 | -6.84 | 50.67 | 0.1530 | -871.0 | -688.5 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 12.00 | 287.28 | -8.08 | 41.36 | 0.2089 | -925.0 | -687.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 17.51 | 282.76 | -12.60 | 39.67 | 0.3274 | -771.0 | -592.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 11.83 | 281.19 | -14.17 | 57.24 | 0.2861 | -896.0 | -748.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 11.64 | 281.04 | -14.32 | 58.07 | 0.2867 | -1002.0 | -768.9 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 11.82 | 280.91 | -14.46 | 57.75 | 0.2902 | -1153.0 | -919.1 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 12.10 | 280.63 | -14.73 | 57.41 | 0.2964 | -880.0 | -709.1 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 11.79 | 280.62 | -14.74 | 58.34 | 0.2940 | -975.0 | -737.1 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 11.39 | 280.48 | -14.88 | 59.77 | 0.2927 | -822.0 | -634.9 | |
| 0.00 | 6.54 | 0.00 | 3.39 | 11.82 | 280.33 | -15.03 | 58.74 | 0.2984 | -955.0 | -874.7 | |
| 0.00 | 3.27 | 0.00 | 1.71 | 12.64 | 279.60 | -15.76 | 57.55 | 0.3155 | -963.0 | -828.6 | |
| 8.17 | 10.99 | 4.25 | 5.72 | 11.68 | 279.53 | -15.83 | 60.36 | 0.3088 | -1139.1 | -790.9 | |
| 0.00 | 3.36 | 0.00 | 1.75 | 11.31 | 279.48 | -15.88 | 61.50 | 0.3066 | -583.0 | -530.9 | |
| 4.36 | 13.53 | 2.28 | 7.09 | 12.01 | 278.53 | -16.83 | 60.85 | 0.3256 | -1212.4 | -844.3 | |
| 8.08 | 34.68 | 4.23 | 18.16 | 11.45 | 278.47 | -16.89 | 62.48 | 0.3225 | -1218.9 | -755.1 | |
| 4.81 | 11.44 | 2.53 | 6.01 | 12.56 | 278.33 | -17.03 | 59.63 | 0.3327 | -1073.6 | -795.4 | |
| 1.18 | 6.72 | 0.62 | 3.53 | 12.31 | 278.02 | -17.34 | 60.72 | 0.3352 | -949.9 | -748.5 | |
| 6.36 | -16.00 | 3.33 | -16.00 | 11.42 | 278.05 | -17.31 | 63.12 | 0.3284 | -868.7 | 999999 | |
| 7.63 | 16.53 | 4.02 | 8.70 | 12.90 | 277.92 | -17.44 | 59.32 | 0.3412 | -937.0 | -747.2 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 12.77 | 277.63 | -17.73 | 60.03 | 0.3443 | -517.0 | -438.4 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 12.36 | 277.27 | -18.09 | 61.56 | 0.3465 | -802.0 | -642.2 | |
| 0.00 | 2.00 | 0.00 | 1.05 | 12.17 | 277.25 | -18.11 | 62.07 | 0.3455 | -814.0 | -709.4 | |
| 0.00 | 2.36 | 0.00 | 1.24 | 11.62 | 277.12 | -18.24 | 63.69 | 0.3435 | -798.0 | -648.4 | |
| 0.00 | 2.18 | 0.00 | 1.16 | 13.41 | 276.79 | -18.57 | 59.50 | 0.3610 | -758.0 | -499.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 13.25 | 276.71 | -18.65 | 60.00 | 0.3611 | -660.0 | -490.5 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 12.78 | 276.55 | -18.82 | 61.36 | 0.3599 | -792.0 | -607.8 | |
| 0.00 | 2.91 | 0.00 | 1.54 | 11.51 | 276.31 | -19.05 | 64.88 | 0.3548 | 485.0 | 372.9 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 10.99 | 276.34 | -19.02 | 66.22 | 0.3511 | 757.0 | 618.4 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 13.86 | 275.86 | -19.50 | 59.56 | 0.3775 | 779.0 | 630.5 | |
| 0.00 | 2.18 | 0.00 | 1.17 | 14.29 | 275.79 | -19.57 | 58.64 | 0.3818 | -832.0 | -670.7 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 14.13 | 275.77 | -19.59 | 59.02 | 0.3809 | -821.0 | -623.8 | |
| 0.82 | 3.18 | 0.43 | 1.69 | 11.57 | 275.91 | -19.45 | 65.15 | 0.3611 | 1156.0 | 858.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 14.72 | 275.58 | -19.78 | 57.90 | 0.3880 | -813.0 | -700.6 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 11.29 | 275.83 | -19.53 | 65.95 | 0.3606 | 932.0 | 704.0 | |
| 6.17 | 15.71 | 3.30 | 8.40 | 13.54 | 275.52 | -19.84 | 60.71 | 0.3800 | 1156.2 | 671.3 | |
| 0.00 | 4.09 | 0.00 | 2.18 | 11.75 | 275.50 | -19.86 | 65.12 | 0.3683 | 554.0 | 586.4 | |
| 0.00 | 1.82 | 0.00 | 0.97 | 13.16 | 275.29 | -20.07 | 61.86 | 0.3806 | 833.0 | 787.4 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 12.11 | 275.37 | -19.99 | 64.33 | 0.3724 | 572.0 | 525.4 | |
| 1.27 | 3.09 | 0.68 | 1.65 | 11.80 | 275.16 | -20.20 | 65.31 | 0.3735 | 1024.7 | 851.3 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 12.42 | 274.95 | -20.41 | 64.02 | 0.3805 | 947.0 | 750.0 | |
| 0.00 | 2.00 | 0.00 | 1.07 | 13.62 | 274.81 | -20.55 | 61.30 | 0.3905 | 756.0 | 756.3 | |
| 0.00 | 3.27 | 0.00 | 1.75 | 11.89 | 274.96 | -20.40 | 65.30 | 0.3771 | 691.0 | 549.8 | |
| 1.73 | 3.45 | 0.92 | 1.85 | 12.23 | 274.86 | -20.50 | 64.56 | 0.3806 | 919.0 | 726.5 | |
| 7.63 | 16.62 | 4.10 | 8.92 | 13.25 | 274.71 | -20.65 | 62.28 | 0.3894 | 1141.0 | 598.1 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 12.99 | 274.40 | -20.96 | 63.20 | 0.3922 | 747.0 | 627.1 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 13.49 | 274.29 | -21.07 | 62.17 | 0.3971 | 1064.0 | 945.9 | |
| 0.00 | 3.63 | 0.00 | 1.97 | 14.22 | 273.64 | -21.72 | 61.17 | 0.4111 | 690.0 | 717.9 | |
| 0.00 | 2.00 | 0.00 | 1.09 | 14.50 | 273.45 | -21.91 | 60.77 | 0.4158 | 907.0 | 747.7 | |
| 0.00 | 1.82 | 0.00 | 1.00 | 15.86 | 272.96 | -22.41 | 58.39 | 0.4323 | 911.0 | 608.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 15.46 | 272.90 | -22.46 | 59.29 | 0.4301 | 1085.0 | 805.9 | |
| 3.63 | 10.99 | 1.98 | 6.00 | 14.39 | 272.81 | -22.55 | 61.63 | 0.4239 | 986.3 | 860.8 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 15.20 | 272.69 | -22.67 | 60.04 | 0.4311 | 828.0 | 636.5 | |
| 0.00 | 4.36 | 0.00 | 2.39 | 14.79 | 272.56 | -22.80 | 61.02 | 0.4301 | 984.0 | 749.4 | |
| 0.00 | 1.82 | 0.00 | 0.99 | 11.84 | 271.94 | -23.42 | 68.02 | 0.4213 | 644.0 | 556.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
