SDO HMI 2014-07-02 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.23 | 422.95 | 58.37 | 262.76 | 15.24 | 259.94 | -35.42 | 68.37 | 0.6034 | -280.9 | -87.3 | |
|
previous
or next observation for the same group /

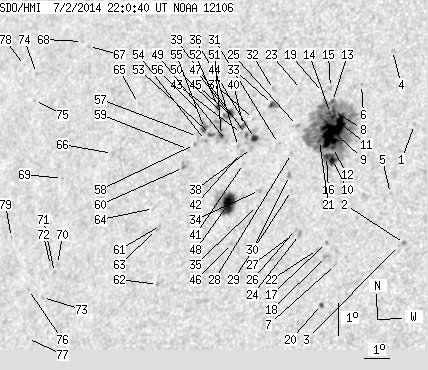

back to the solar disc SDO HMI 2014-07-02 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.80 | 16.15 | 264.71 | -30.65 | 64.48 | 0.5447 | -762.0 | -576.5 | |
| 0.00 | 1.73 | 0.00 | 1.00 | 12.45 | 264.90 | -30.46 | 71.00 | 0.5256 | -910.0 | -789.2 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 12.38 | 264.69 | -30.67 | 71.22 | 0.5283 | -730.0 | -575.7 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 18.45 | 263.46 | -31.91 | 61.41 | 0.5731 | -831.0 | -618.2 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 13.98 | 264.18 | -31.18 | 68.58 | 0.5418 | -727.0 | -527.8 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 17.35 | 262.50 | -32.86 | 63.77 | 0.5795 | -650.0 | -484.5 | |
| 0.00 | 2.00 | 0.00 | 1.19 | 11.74 | 262.46 | -32.90 | 73.32 | 0.5573 | -593.0 | -529.7 | |
| 0.27 | 233.26 | 0.17 | 142.09 | 16.48 | 261.61 | -33.75 | 65.68 | 0.5869 | -575.7 | -338.9 | |
| 36.95 | -8.00 | 22.49 | -8.00 | 15.85 | 261.69 | -33.67 | 66.66 | 0.5831 | -1262.1 | 999999 | |
| 6.81 | -8.00 | 4.12 | -8.00 | 14.98 | 261.85 | -33.51 | 68.02 | 0.5773 | -1010.8 | 999999 | |
| 2.36 | -8.00 | 1.44 | -8.00 | 16.29 | 261.61 | -33.75 | 65.99 | 0.5860 | -664.7 | 999999 | |
| 2.18 | -8.00 | 1.32 | -8.00 | 15.35 | 261.78 | -33.58 | 67.43 | 0.5797 | -1128.9 | 999999 | |
| 1.09 | -8.00 | 0.67 | -8.00 | 16.79 | 261.51 | -33.85 | 65.23 | 0.5896 | -502.8 | 999999 | |
| 0.27 | -8.00 | 0.17 | -8.00 | 16.41 | 261.51 | -33.86 | 65.84 | 0.5879 | -600.7 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.34 | 17.23 | 261.34 | -34.02 | 64.61 | 0.5937 | -657.0 | -520.6 | |
| 2.91 | -8.00 | 1.76 | -8.00 | 15.07 | 261.61 | -33.76 | 67.99 | 0.5809 | -825.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 12.41 | 262.04 | -33.33 | 72.31 | 0.5653 | -764.0 | -609.6 | |
| 0.00 | 2.45 | 0.00 | 1.47 | 11.97 | 262.10 | -33.27 | 73.04 | 0.5631 | -751.0 | -578.0 | |
| 0.00 | 1.63 | 0.00 | 1.01 | 17.06 | 261.11 | -34.26 | 65.00 | 0.5959 | -312.0 | -396.4 | |
| 0.91 | 2.27 | 0.54 | 1.35 | 10.49 | 262.10 | -33.26 | 75.64 | 0.5588 | -635.2 | -487.5 | |
| 1.18 | -8.00 | 0.72 | -8.00 | 15.56 | 261.25 | -34.11 | 67.36 | 0.5876 | -531.8 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.15 | 12.18 | 261.73 | -33.63 | 72.82 | 0.5688 | -718.0 | -571.8 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 17.13 | 260.24 | -35.13 | 65.33 | 0.6073 | 540.0 | 447.5 | |
| 0.00 | 2.91 | 0.00 | 1.76 | 12.62 | 260.99 | -34.38 | 72.34 | 0.5804 | -889.0 | -671.4 | |
| 0.00 | 2.09 | 0.00 | 1.29 | 16.00 | 260.32 | -35.05 | 67.08 | 0.6015 | 618.0 | 335.8 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 12.77 | 260.81 | -34.55 | 72.16 | 0.5832 | -666.0 | -548.4 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 12.62 | 260.72 | -34.64 | 72.45 | 0.5839 | -552.0 | -468.1 | |
| 0.00 | 1.63 | 0.00 | 1.01 | 15.12 | 260.25 | -35.11 | 68.52 | 0.5988 | -418.0 | -272.8 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 13.98 | 260.46 | -34.90 | 70.30 | 0.5919 | -641.0 | -540.8 | |
| 0.00 | 2.63 | 0.00 | 1.62 | 14.44 | 260.30 | -35.06 | 69.61 | 0.5957 | -838.0 | -642.8 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 15.42 | 259.69 | -35.67 | 68.29 | 0.6073 | 749.0 | 574.3 | |
| 0.00 | 2.18 | 0.00 | 1.37 | 17.10 | 259.14 | -36.22 | 65.90 | 0.6209 | 672.0 | 443.9 | |
| 2.54 | 5.36 | 1.60 | 3.37 | 16.63 | 259.21 | -36.16 | 66.60 | 0.6182 | 837.0 | 639.3 | |
| 0.00 | 2.00 | 0.00 | 1.24 | 13.94 | 259.23 | -36.13 | 70.84 | 0.6080 | 812.0 | 655.9 | |
| 0.00 | 0.73 | 0.00 | 0.45 | 13.47 | 259.24 | -36.13 | 71.59 | 0.6065 | -582.0 | -443.2 | |
| 3.36 | 14.44 | 2.12 | 9.11 | 15.55 | 258.72 | -36.64 | 68.50 | 0.6202 | 872.6 | 567.9 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 16.14 | 258.56 | -36.80 | 67.65 | 0.6244 | 522.0 | 478.9 | |
| 0.00 | 1.63 | 0.00 | 1.03 | 15.23 | 258.67 | -36.69 | 69.01 | 0.6197 | 808.0 | 749.7 | |
| 0.91 | -36.00 | 0.57 | -36.00 | 15.66 | 258.38 | -36.98 | 68.46 | 0.6249 | 930.0 | 999999 | |
| 1.63 | 3.36 | 1.04 | 2.13 | 15.94 | 258.20 | -37.16 | 68.10 | 0.6282 | 807.0 | 626.3 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 14.76 | 258.45 | -36.91 | 69.84 | 0.6209 | -543.0 | -412.3 | |
| 0.00 | 2.72 | 0.00 | 1.72 | 15.10 | 258.30 | -37.06 | 69.37 | 0.6240 | 729.0 | 578.9 | |
| 0.00 | 1.45 | 0.00 | 0.92 | 15.69 | 258.18 | -37.18 | 68.50 | 0.6276 | 683.0 | 651.4 | |
| 0.00 | 1.63 | 0.00 | 1.04 | 15.28 | 258.14 | -37.22 | 69.14 | 0.6266 | 817.0 | 681.6 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 16.12 | 257.85 | -37.52 | 67.98 | 0.6333 | 672.0 | 612.2 | |
| 0.00 | 3.72 | 0.00 | 2.33 | 12.27 | 258.46 | -36.90 | 73.78 | 0.6132 | 73.0 | 111.4 | |
| 3.72 | 21.79 | 2.39 | 14.05 | 16.30 | 257.56 | -37.80 | 67.82 | 0.6375 | 800.4 | 649.6 | |
| 19.07 | 40.95 | 12.03 | 25.89 | 13.50 | 258.09 | -37.27 | 71.94 | 0.6215 | -972.4 | -172.9 | |
| 0.00 | 1.45 | 0.00 | 0.93 | 15.45 | 257.63 | -37.73 | 69.08 | 0.6337 | 841.0 | 621.6 | |
| 0.54 | -47.00 | 0.35 | -47.00 | 16.23 | 257.38 | -37.98 | 68.00 | 0.6396 | 763.3 | 999999 | |
| 1.82 | 13.35 | 1.16 | 8.58 | 15.60 | 257.40 | -37.97 | 68.94 | 0.6372 | 972.5 | 710.7 | |
| 1.36 | 3.81 | 0.88 | 2.46 | 16.47 | 257.08 | -38.28 | 67.75 | 0.6442 | 657.3 | 507.3 | |
| 1.27 | -51.00 | 0.82 | -51.00 | 15.62 | 256.95 | -38.41 | 69.08 | 0.6429 | 798.4 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.29 | 15.43 | 256.79 | -38.57 | 69.43 | 0.6442 | 771.0 | 643.4 | |
| 2.63 | -47.00 | 1.71 | -47.00 | 15.80 | 256.66 | -38.70 | 68.92 | 0.6470 | 773.0 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.47 | 16.29 | 256.39 | -38.97 | 68.29 | 0.6521 | 372.0 | 252.1 | |
| 0.00 | 1.63 | 0.00 | 1.06 | 15.54 | 256.44 | -38.92 | 69.39 | 0.6490 | 463.0 | 468.9 | |
| 0.00 | 1.54 | 0.00 | 1.00 | 15.29 | 256.37 | -38.99 | 69.79 | 0.6490 | 737.0 | 688.7 | |
| 0.00 | 0.91 | 0.00 | 0.59 | 15.12 | 256.16 | -39.20 | 70.11 | 0.6511 | 645.0 | 538.6 | |
| 0.45 | 5.08 | 0.30 | 3.31 | 14.56 | 256.08 | -39.28 | 70.99 | 0.6504 | 886.2 | 657.8 | |
| 0.00 | 1.09 | 0.00 | 0.71 | 12.74 | 255.51 | -39.85 | 73.91 | 0.6528 | -466.0 | -443.2 | |
| 0.00 | 1.54 | 0.00 | 1.00 | 10.92 | 255.70 | -39.66 | 76.63 | 0.6464 | 548.0 | 450.3 | |
| 0.00 | 1.45 | 0.00 | 0.95 | 12.61 | 255.37 | -39.99 | 74.14 | 0.6543 | -647.0 | -411.8 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 13.25 | 255.12 | -40.24 | 73.24 | 0.6590 | -573.0 | -448.2 | |
| 0.00 | 0.64 | 0.00 | 0.43 | 16.49 | 253.75 | -41.61 | 68.93 | 0.6847 | 403.0 | 389.4 | |
| 0.00 | 2.18 | 0.00 | 1.48 | 14.90 | 253.04 | -42.32 | 71.42 | 0.6887 | 268.0 | 248.3 | |
| 0.00 | 1.00 | 0.00 | 0.71 | 18.20 | 251.06 | -44.30 | 67.44 | 0.7208 | 596.0 | 424.2 | |
| 0.00 | 0.91 | 0.00 | 0.65 | 18.35 | 250.74 | -44.62 | 67.34 | 0.7248 | 572.0 | 410.9 | |
| 0.00 | 1.00 | 0.00 | 0.70 | 14.05 | 251.07 | -44.29 | 73.13 | 0.7101 | 550.0 | 445.5 | |
| 0.00 | 1.00 | 0.00 | 0.69 | 11.39 | 251.44 | -43.93 | 76.79 | 0.7008 | 735.0 | 652.8 | |
| 0.00 | 1.09 | 0.00 | 0.76 | 11.14 | 251.35 | -44.01 | 77.16 | 0.7014 | 692.0 | 553.4 | |
| 0.00 | 0.64 | 0.00 | 0.44 | 11.35 | 251.14 | -44.22 | 76.90 | 0.7044 | 353.0 | 327.7 | |
| 0.00 | 1.09 | 0.00 | 0.76 | 10.36 | 250.98 | -44.38 | 78.33 | 0.7049 | 599.0 | 488.2 | |
| 0.00 | 1.09 | 0.00 | 0.80 | 17.27 | 248.99 | -46.38 | 69.29 | 0.7413 | 524.0 | 399.6 | |
| 0.00 | 1.00 | 0.00 | 0.73 | 16.42 | 249.16 | -46.20 | 70.36 | 0.7373 | 498.0 | 430.8 | |
| 0.00 | 1.00 | 0.00 | 0.70 | 10.58 | 250.32 | -45.04 | 78.12 | 0.7131 | 603.0 | 498.1 | |
| 0.00 | 0.82 | 0.00 | 0.57 | 9.08 | 250.54 | -44.82 | 80.20 | 0.7087 | 591.0 | 435.9 | |
| 0.00 | 0.27 | 0.00 | 0.20 | 17.50 | 248.35 | -47.01 | 69.15 | 0.7488 | 452.0 | 419.0 | |
| 0.00 | 0.73 | 0.00 | 0.52 | 12.15 | 249.24 | -46.12 | 76.12 | 0.7281 | 434.0 | 378.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
