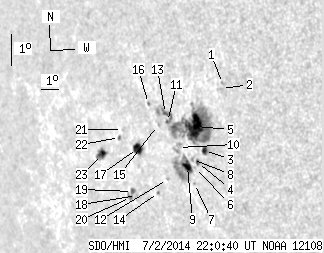

SDO HMI 2014-07-02 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.48 | 200.19 | 47.93 | 177.88 | -8.02 | 240.35 | -55.01 | 101.81 | 0.8305 | 265.9 | 120.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 1.42 | -6.13 | 242.95 | -52.41 | 100.00 | 0.8022 | 686.0 | 530.3 | |
| 0.00 | 0.91 | 0.00 | 0.75 | -6.29 | 242.88 | -52.48 | 100.18 | 0.8032 | 639.0 | 517.3 | |
| 2.91 | 4.45 | 2.49 | 3.82 | -8.26 | 241.66 | -53.70 | 102.35 | 0.8186 | 833.4 | 689.0 | |
| 1.18 | 2.27 | 1.03 | 1.97 | -8.65 | 241.21 | -54.15 | 102.73 | 0.8237 | 691.9 | 586.3 | |
| 25.15 | 112.50 | 21.70 | 97.63 | -7.53 | 241.33 | -54.03 | 101.40 | 0.8207 | 792.4 | 297.8 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -8.81 | 241.07 | -54.29 | 102.89 | 0.8253 | 400.0 | 440.0 | |
| 0.00 | 0.82 | 0.00 | 0.72 | -9.32 | 240.90 | -54.46 | 103.46 | 0.8278 | 482.0 | 434.3 | |
| 0.00 | 1.18 | 0.00 | 1.03 | -8.57 | 240.96 | -54.40 | 102.58 | 0.8259 | 507.0 | 456.3 | |
| 7.26 | 33.32 | 6.41 | 29.59 | -8.80 | 240.65 | -54.72 | 102.79 | 0.8293 | 582.3 | -98.1 | |
| 0.00 | 7.17 | 0.00 | 6.37 | -8.23 | 240.29 | -55.08 | 102.04 | 0.8318 | -280.0 | -90.4 | |
| 0.64 | -5.00 | 0.57 | -5.00 | -7.44 | 239.85 | -55.52 | 101.02 | 0.8348 | -29.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.07 | -9.26 | 239.45 | -55.91 | 103.09 | 0.8413 | 380.0 | 256.6 | |
| 1.36 | -5.00 | 1.22 | -5.00 | -7.19 | 239.78 | -55.58 | 100.72 | 0.8350 | 345.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.18 | -9.69 | 238.83 | -56.53 | 103.47 | 0.8476 | 222.0 | 196.4 | |
| 0.00 | 0.54 | 0.00 | 0.49 | -7.59 | 239.27 | -56.10 | 101.09 | 0.8405 | -577.0 | -582.7 | |
| 0.00 | 1.36 | 0.00 | 1.25 | -6.93 | 238.89 | -56.47 | 100.25 | 0.8430 | -346.0 | -346.2 | |
| 7.45 | 10.53 | 7.03 | 9.93 | -8.36 | 237.97 | -57.39 | 101.76 | 0.8534 | -656.7 | -392.6 | |
| 0.00 | 2.63 | 0.00 | 2.54 | -9.84 | 237.53 | -57.83 | 103.39 | 0.8594 | -655.0 | -542.9 | |
| 1.36 | 6.17 | 1.32 | 5.99 | -9.73 | 237.32 | -58.04 | 103.22 | 0.8610 | -618.0 | -428.0 | |
| 0.91 | -19.00 | 0.88 | -19.00 | -9.92 | 237.15 | -58.21 | 103.41 | 0.8628 | -519.3 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.52 | -7.80 | 237.22 | -58.14 | 100.99 | 0.8592 | -456.0 | -498.0 | |
| 0.54 | 1.82 | 0.53 | 1.76 | -8.06 | 236.99 | -58.38 | 101.25 | 0.8616 | -502.2 | -444.4 | |
| 4.72 | 9.53 | 4.75 | 9.61 | -8.64 | 235.82 | -59.54 | 101.72 | 0.8723 | -637.6 | -398.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
