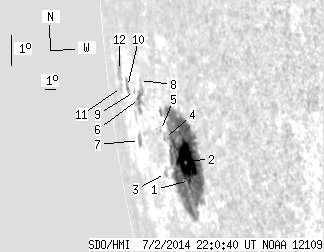

SDO HMI 2014-07-02 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.77 | 295.27 | 81.58 | 608.63 | -8.03 | 220.12 | -75.25 | 99.09 | 0.9696 | 319.5 | 43.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.18 | 249.42 | 2.19 | 467.19 | -9.00 | 221.65 | -73.71 | 100.22 | 0.9645 | 268.8 | 126.1 | |
| 38.59 | -1.00 | 71.19 | -1.00 | -8.38 | 221.65 | -73.72 | 99.58 | 0.9642 | 506.3 | 999999 | |
| 0.00 | 3.00 | 0.00 | 6.71 | -8.93 | 218.74 | -76.62 | 99.87 | 0.9765 | -568.0 | -521.8 | |
| 0.00 | 1.36 | 0.00 | 2.93 | -7.82 | 219.30 | -76.06 | 98.78 | 0.9740 | -540.0 | -496.0 | |
| 0.00 | 1.09 | 0.00 | 2.39 | -7.59 | 218.90 | -76.46 | 98.52 | 0.9754 | -475.0 | -448.0 | |
| 3.00 | 16.43 | 8.20 | 44.65 | -6.74 | 216.30 | -79.07 | 97.43 | 0.9841 | -613.4 | -490.1 | |
| 0.00 | 5.45 | 0.00 | 16.39 | -8.09 | 215.31 | -80.06 | 98.73 | 0.9873 | -432.0 | -309.6 | |
| 0.00 | 0.73 | 0.00 | 1.90 | -6.17 | 216.64 | -78.72 | 96.88 | 0.9829 | -332.0 | -340.8 | |
| 0.00 | 1.18 | 0.00 | 3.46 | -6.56 | 215.55 | -79.81 | 97.20 | 0.9863 | -436.0 | -421.5 | |
| 0.00 | 5.81 | 0.00 | 19.43 | -6.48 | 214.28 | -81.08 | 97.02 | 0.9897 | -207.0 | -123.0 | |
| 0.00 | 2.45 | 0.00 | 9.99 | -6.58 | 212.86 | -82.51 | 97.03 | 0.9929 | 151.0 | 192.5 | |
| 0.00 | 8.35 | 0.00 | 33.59 | -6.06 | 212.83 | -82.53 | 96.50 | 0.9929 | 180.0 | 137.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
