SDO HMI 2014-07-02 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.34 | 160.32 | 6.31 | 81.98 | 11.18 | 306.50 | 11.69 | 306.01 | 0.2490 | 44.8 | 401.5 | |
|
previous
or next observation for the same group /

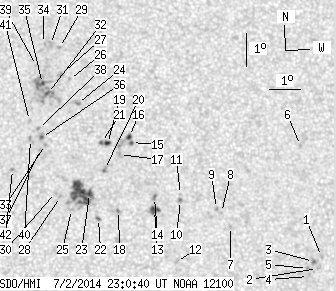

back to the solar disc SDO HMI 2014-07-02 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 0.95 | 7.98 | 313.45 | 18.64 | 285.63 | 0.3301 | -717.0 | -567.3 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 7.61 | 313.30 | 18.49 | 284.64 | 0.3264 | -745.0 | -599.1 | |
| 0.00 | 2.91 | 0.00 | 1.52 | 7.83 | 313.18 | 18.38 | 285.38 | 0.3253 | -946.0 | -825.0 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 7.37 | 313.00 | 18.19 | 284.12 | 0.3207 | -726.0 | -636.5 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 7.62 | 312.98 | 18.17 | 284.89 | 0.3212 | -907.0 | -781.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 11.39 | 312.96 | 18.16 | 295.79 | 0.3407 | -700.0 | -620.9 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 8.95 | 310.56 | 15.75 | 291.30 | 0.2891 | -893.0 | -628.9 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 9.38 | 310.29 | 15.48 | 293.04 | 0.2875 | -656.0 | -619.1 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 9.50 | 310.14 | 15.33 | 293.64 | 0.2859 | -768.0 | -620.8 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 9.77 | 309.00 | 14.19 | 296.11 | 0.2702 | -1075.0 | -873.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 9.95 | 309.01 | 14.20 | 296.72 | 0.2717 | -719.0 | -525.9 | |
| 0.00 | 2.91 | 0.00 | 1.49 | 7.90 | 308.80 | 13.99 | 289.75 | 0.2555 | -701.0 | -545.8 | |
| 3.45 | 6.17 | 1.77 | 3.16 | 9.47 | 308.16 | 13.35 | 296.41 | 0.2554 | -1118.3 | -869.2 | |
| 0.00 | 2.36 | 0.00 | 1.21 | 9.87 | 308.17 | 13.37 | 297.79 | 0.2586 | -994.0 | -866.8 | |
| 0.73 | 10.26 | 0.37 | 5.26 | 11.57 | 307.52 | 12.71 | 304.70 | 0.2634 | -968.5 | -764.8 | |
| 1.45 | -15.00 | 0.75 | -15.00 | 11.75 | 307.46 | 12.66 | 305.40 | 0.2643 | -956.9 | 999999 | |
| 0.00 | 3.63 | 0.00 | 1.86 | 11.20 | 307.12 | 12.31 | 304.34 | 0.2545 | -904.0 | -706.4 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 9.48 | 307.02 | 12.21 | 298.47 | 0.2384 | 827.0 | 700.8 | |
| 1.54 | 2.91 | 0.79 | 1.49 | 11.55 | 306.75 | 11.95 | 306.26 | 0.2526 | -970.8 | -819.5 | |
| 0.00 | 2.45 | 0.00 | 1.25 | 10.75 | 306.62 | 11.82 | 303.85 | 0.2433 | 912.0 | 812.0 | |
| 0.45 | 1.54 | 0.23 | 0.79 | 11.58 | 306.57 | 11.76 | 306.79 | 0.2504 | -967.6 | -775.5 | |
| 0.36 | 2.09 | 0.18 | 1.06 | 9.25 | 306.38 | 11.57 | 298.81 | 0.2269 | 794.2 | 625.9 | |
| 1.91 | 41.86 | 0.97 | 21.28 | 10.02 | 306.12 | 11.31 | 302.31 | 0.2296 | 834.3 | 940.9 | |
| 0.00 | 2.36 | 0.00 | 1.21 | 12.79 | 305.86 | 11.05 | 312.30 | 0.2538 | 725.0 | 399.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 9.53 | 305.54 | 10.73 | 301.76 | 0.2169 | 691.0 | 575.9 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 13.54 | 305.64 | 10.83 | 315.03 | 0.2596 | 708.0 | 617.4 | |
| 0.00 | 2.54 | 0.00 | 1.30 | 13.70 | 305.36 | 10.55 | 316.20 | 0.2581 | 786.0 | 620.5 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 9.94 | 305.21 | 10.40 | 304.15 | 0.2158 | 861.0 | 726.6 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 14.53 | 305.36 | 10.56 | 318.41 | 0.2684 | 865.0 | 655.7 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 10.06 | 305.05 | 10.24 | 305.02 | 0.2148 | 573.0 | 473.6 | |
| 0.00 | 3.27 | 0.00 | 1.68 | 14.63 | 305.08 | 10.27 | 319.41 | 0.2664 | 585.0 | 567.8 | |
| 1.00 | 36.68 | 0.51 | 18.75 | 13.11 | 304.92 | 10.11 | 315.74 | 0.2460 | 1050.0 | 795.4 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 11.54 | 304.79 | 9.98 | 311.12 | 0.2265 | 909.0 | 680.6 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 14.66 | 304.86 | 10.05 | 320.11 | 0.2644 | 560.0 | 581.5 | |
| 0.91 | -32.00 | 0.46 | -32.00 | 13.42 | 304.77 | 9.96 | 317.04 | 0.2480 | 1064.4 | 999999 | |
| 0.54 | 2.63 | 0.28 | 1.34 | 11.76 | 304.67 | 9.86 | 312.18 | 0.2273 | 1063.7 | 829.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 11.39 | 304.63 | 9.82 | 311.06 | 0.2227 | 883.0 | 770.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 12.03 | 304.59 | 9.78 | 313.34 | 0.2294 | 949.0 | 745.4 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 13.98 | 304.60 | 9.80 | 319.05 | 0.2530 | 780.0 | 621.2 | |
| 0.00 | 3.09 | 0.00 | 1.57 | 11.70 | 304.32 | 9.51 | 313.00 | 0.2223 | 863.0 | 770.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 12.28 | 304.31 | 9.50 | 314.94 | 0.2290 | 791.0 | 643.2 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 10.78 | 303.72 | 8.92 | 311.56 | 0.2044 | 907.0 | 669.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
