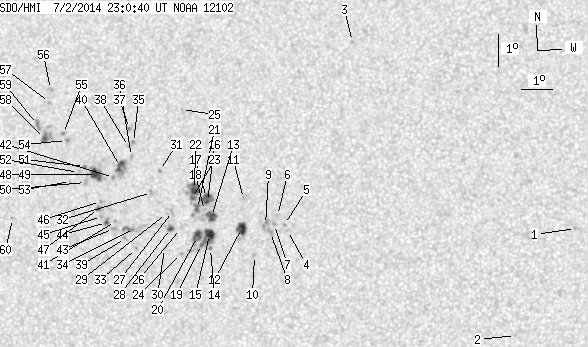

SDO HMI 2014-07-02 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.37 | 233.43 | 34.94 | 123.19 | 12.53 | 277.01 | -17.79 | 60.53 | 0.3435 | -227.4 | -87.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.75 | 290.12 | -4.69 | 27.90 | 0.1719 | -883.0 | -614.6 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 8.45 | 288.30 | -6.50 | 49.90 | 0.1471 | -801.0 | -553.1 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 17.52 | 282.79 | -12.02 | 38.36 | 0.3213 | -797.0 | -650.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 11.62 | 281.03 | -13.77 | 57.19 | 0.2787 | -858.0 | -716.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 11.80 | 280.93 | -13.88 | 56.82 | 0.2818 | -1081.0 | -874.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 12.08 | 280.69 | -14.12 | 56.42 | 0.2876 | -881.0 | -715.8 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 11.80 | 280.61 | -14.20 | 57.40 | 0.2863 | -1018.0 | -843.1 | |
| 0.00 | 3.81 | 0.00 | 1.97 | 11.55 | 280.49 | -14.32 | 58.36 | 0.2858 | -958.0 | -839.9 | |
| 0.00 | 5.63 | 0.00 | 2.91 | 11.80 | 280.32 | -14.49 | 57.91 | 0.2904 | -880.0 | -873.8 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 10.84 | 280.01 | -14.79 | 61.34 | 0.2871 | -944.0 | -690.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 12.59 | 279.56 | -15.24 | 56.88 | 0.3077 | -937.0 | -821.8 | |
| 7.63 | 13.08 | 3.96 | 6.79 | 11.66 | 279.55 | -15.26 | 59.56 | 0.3002 | -1146.4 | -678.6 | |
| 5.99 | 13.62 | 3.13 | 7.11 | 12.02 | 278.56 | -16.25 | 60.02 | 0.3173 | -1188.2 | -844.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 11.03 | 278.59 | -16.22 | 62.81 | 0.3096 | -961.0 | -844.6 | |
| 7.26 | 35.32 | 3.79 | 18.43 | 11.46 | 278.53 | -16.28 | 61.64 | 0.3135 | -1223.5 | -779.0 | |
| 2.45 | 35.96 | 1.28 | 18.86 | 12.48 | 278.40 | -16.41 | 58.98 | 0.3232 | -1171.1 | -702.0 | |
| 5.09 | -16.00 | 2.66 | -16.00 | 12.60 | 278.36 | -16.45 | 58.70 | 0.3248 | -948.7 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 12.20 | 278.32 | -16.49 | 59.86 | 0.3221 | -586.0 | -684.7 | |
| 0.82 | -15.00 | 0.43 | -15.00 | 11.15 | 278.29 | -16.52 | 62.87 | 0.3149 | -872.8 | 999999 | |
| 6.08 | -15.00 | 3.18 | -15.00 | 11.40 | 278.14 | -16.66 | 62.36 | 0.3187 | -874.4 | 999999 | |
| 2.18 | -16.00 | 1.14 | -16.00 | 12.26 | 278.09 | -16.72 | 60.02 | 0.3259 | -966.7 | 999999 | |
| 6.99 | -16.00 | 3.67 | -16.00 | 12.85 | 277.95 | -16.85 | 58.65 | 0.3324 | -941.3 | 999999 | |
| 1.36 | -16.00 | 0.71 | -16.00 | 12.60 | 277.91 | -16.90 | 59.37 | 0.3312 | -946.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 10.87 | 277.66 | -17.15 | 64.49 | 0.3223 | -806.0 | -615.0 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 15.32 | 277.34 | -17.47 | 53.43 | 0.3621 | -696.0 | -541.1 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 11.64 | 277.58 | -17.23 | 62.43 | 0.3287 | -522.0 | -462.6 | |
| 0.00 | 2.81 | 0.00 | 1.48 | 12.16 | 277.28 | -17.53 | 61.39 | 0.3368 | -802.0 | -675.5 | |
| 1.73 | 4.45 | 0.91 | 2.34 | 11.63 | 277.25 | -17.56 | 62.85 | 0.3335 | -693.7 | -308.1 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 12.09 | 277.09 | -17.72 | 61.81 | 0.3391 | -567.0 | -414.4 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 11.01 | 277.09 | -17.71 | 64.75 | 0.3317 | -648.0 | -537.8 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 13.42 | 276.76 | -18.04 | 58.81 | 0.3537 | -722.0 | -672.0 | |
| 0.00 | 2.27 | 0.00 | 1.20 | 12.73 | 276.55 | -18.26 | 60.81 | 0.3515 | -764.0 | -615.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 11.00 | 276.18 | -18.63 | 65.80 | 0.3453 | 797.0 | 592.8 | |
| 0.00 | 9.90 | 0.00 | 5.23 | 11.61 | 276.07 | -18.74 | 64.28 | 0.3507 | 758.0 | 673.5 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 14.27 | 275.83 | -18.97 | 57.95 | 0.3734 | -904.0 | -754.9 | |
| 0.00 | 1.73 | 0.00 | 0.92 | 13.84 | 275.80 | -19.00 | 59.02 | 0.3704 | 873.0 | 687.2 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 14.71 | 275.66 | -19.15 | 57.16 | 0.3792 | -806.0 | -620.2 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 14.15 | 275.68 | -19.13 | 58.44 | 0.3745 | -671.0 | -542.5 | |
| 0.00 | 2.00 | 0.00 | 1.06 | 11.30 | 275.80 | -19.01 | 65.40 | 0.3528 | 1034.0 | 756.2 | |
| 5.18 | 14.98 | 2.76 | 7.99 | 13.52 | 275.47 | -19.34 | 60.19 | 0.3727 | 1142.2 | 703.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 11.82 | 275.43 | -19.38 | 64.44 | 0.3615 | 944.0 | 679.1 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 13.18 | 275.26 | -19.55 | 61.26 | 0.3731 | 901.0 | 831.4 | |
| 0.00 | 2.54 | 0.00 | 1.35 | 11.60 | 275.38 | -19.43 | 65.05 | 0.3609 | 857.0 | 715.5 | |
| 1.00 | 2.91 | 0.53 | 1.55 | 11.78 | 275.14 | -19.67 | 64.84 | 0.3656 | 989.5 | 769.0 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 11.97 | 274.96 | -19.85 | 64.57 | 0.3694 | 835.0 | 628.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 12.43 | 274.89 | -19.92 | 63.49 | 0.3734 | 845.0 | 725.4 | |
| 1.18 | 2.72 | 0.63 | 1.45 | 12.21 | 274.84 | -19.97 | 64.08 | 0.3727 | 904.8 | 724.1 | |
| 8.26 | 14.17 | 4.43 | 7.59 | 13.26 | 274.69 | -20.12 | 61.70 | 0.3819 | 1142.2 | 777.3 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 13.26 | 274.39 | -20.42 | 62.04 | 0.3861 | 714.0 | 597.2 | |
| 0.00 | 2.91 | 0.00 | 1.56 | 13.01 | 274.34 | -20.47 | 62.67 | 0.3851 | 767.0 | 646.2 | |
| 0.36 | 1.18 | 0.20 | 0.63 | 13.50 | 274.27 | -20.54 | 61.59 | 0.3896 | 978.0 | 892.2 | |
| 0.00 | 2.00 | 0.00 | 1.07 | 13.31 | 274.08 | -20.73 | 62.23 | 0.3909 | 660.0 | 630.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 13.03 | 273.84 | -20.97 | 63.14 | 0.3925 | 688.0 | 460.3 | |
| 0.00 | 1.82 | 0.00 | 0.98 | 14.30 | 273.59 | -21.22 | 60.51 | 0.4047 | 906.0 | 804.0 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 14.51 | 273.46 | -21.34 | 60.16 | 0.4079 | 953.0 | 759.1 | |
| 0.00 | 2.72 | 0.00 | 1.49 | 15.88 | 272.88 | -21.93 | 57.88 | 0.4260 | 768.0 | 621.5 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 15.47 | 272.89 | -21.92 | 58.71 | 0.4228 | 1025.0 | 845.6 | |
| 2.81 | 11.80 | 1.53 | 6.42 | 14.35 | 272.84 | -21.97 | 61.17 | 0.4155 | 1037.4 | 793.9 | |
| 0.00 | 5.09 | 0.00 | 2.78 | 14.78 | 272.55 | -22.25 | 60.53 | 0.4224 | 986.0 | 717.1 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 11.85 | 271.99 | -22.82 | 67.53 | 0.4124 | 741.0 | 608.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
