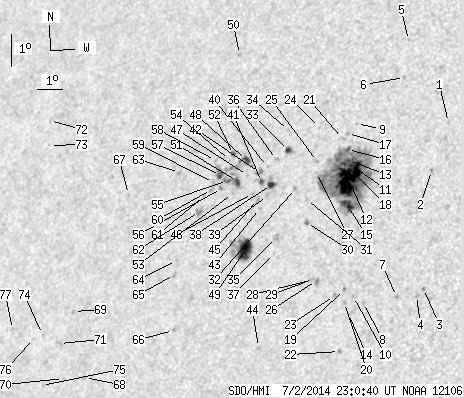

SDO HMI 2014-07-02 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.69 | 438.19 | 55.84 | 270.56 | 15.22 | 259.91 | -34.90 | 68.16 | 0.5966 | -330.4 | -105.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.53 | 17.69 | 265.07 | -29.74 | 61.25 | 0.5412 | -721.0 | -550.6 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 16.17 | 264.71 | -30.10 | 64.12 | 0.5375 | -774.0 | -576.6 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 12.50 | 264.95 | -29.86 | 70.62 | 0.5172 | -811.0 | -726.0 | |
| 0.00 | 2.63 | 0.00 | 1.52 | 12.28 | 264.73 | -30.08 | 71.15 | 0.5196 | -561.0 | -511.6 | |
| 0.00 | 0.45 | 0.00 | 0.28 | 20.24 | 263.04 | -31.77 | 58.48 | 0.5816 | -575.0 | -418.2 | |
| 0.00 | 1.45 | 0.00 | 0.88 | 19.07 | 263.15 | -31.66 | 60.27 | 0.5734 | -697.0 | -522.4 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 12.23 | 264.01 | -30.80 | 71.57 | 0.5295 | -773.0 | -674.1 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 12.01 | 262.83 | -31.98 | 72.48 | 0.5453 | -707.0 | -588.3 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 17.57 | 261.63 | -33.17 | 63.61 | 0.5845 | -573.0 | -489.0 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 12.19 | 262.44 | -32.37 | 72.32 | 0.5514 | -610.0 | -539.0 | |
| 0.27 | 238.63 | 0.17 | 144.45 | 16.25 | 261.70 | -33.10 | 65.72 | 0.5774 | -848.0 | -364.1 | |
| 39.32 | -11.00 | 23.78 | -11.00 | 15.84 | 261.67 | -33.14 | 66.42 | 0.5760 | -1240.6 | 999999 | |
| 0.27 | -11.00 | 0.17 | -11.00 | 16.40 | 261.56 | -33.25 | 65.55 | 0.5799 | -581.3 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.43 | 11.66 | 262.32 | -32.48 | 73.31 | 0.5512 | -702.0 | -613.9 | |
| 9.08 | -11.00 | 5.47 | -11.00 | 15.00 | 261.78 | -33.03 | 67.77 | 0.5709 | -1003.7 | 999999 | |
| 1.36 | -11.00 | 0.83 | -11.00 | 16.74 | 261.46 | -33.35 | 65.04 | 0.5829 | -377.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 17.25 | 261.36 | -33.45 | 64.29 | 0.5865 | -642.0 | -555.3 | |
| 1.63 | -11.00 | 0.99 | -11.00 | 16.30 | 261.43 | -33.38 | 65.78 | 0.5812 | -360.7 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 12.39 | 262.08 | -32.73 | 72.11 | 0.5571 | -588.0 | -537.7 | |
| 0.00 | 1.73 | 0.00 | 1.03 | 11.99 | 262.13 | -32.68 | 72.79 | 0.5550 | -774.0 | -585.2 | |
| 0.00 | 2.72 | 0.00 | 1.66 | 17.08 | 261.20 | -33.61 | 64.63 | 0.5878 | -592.0 | -415.5 | |
| 0.00 | 1.73 | 0.00 | 1.02 | 10.48 | 262.14 | -32.67 | 75.48 | 0.5504 | -803.0 | -671.2 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 12.20 | 261.73 | -33.08 | 72.59 | 0.5612 | -676.0 | -613.0 | |
| 0.00 | 0.82 | 0.00 | 0.51 | 17.40 | 260.24 | -34.57 | 64.63 | 0.6014 | -481.0 | -370.6 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 16.34 | 260.39 | -34.42 | 66.25 | 0.5948 | 176.0 | 182.2 | |
| 0.00 | 2.54 | 0.00 | 1.53 | 12.64 | 260.99 | -33.82 | 72.11 | 0.5728 | -765.0 | -664.0 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 15.99 | 260.42 | -34.39 | 66.79 | 0.5930 | 417.0 | 375.1 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 12.67 | 260.87 | -33.93 | 72.11 | 0.5745 | -662.0 | -623.6 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 12.64 | 260.73 | -34.08 | 72.22 | 0.5763 | -645.0 | -585.4 | |
| 0.36 | 2.36 | 0.22 | 1.44 | 14.43 | 260.32 | -34.49 | 69.39 | 0.5880 | -813.2 | -626.7 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 15.14 | 260.19 | -34.61 | 68.28 | 0.5924 | -537.0 | -411.3 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 15.47 | 259.71 | -35.10 | 67.97 | 0.6001 | 811.0 | 699.5 | |
| 2.45 | 4.90 | 1.53 | 3.06 | 16.65 | 259.19 | -35.61 | 66.33 | 0.6114 | 846.0 | 667.5 | |
| 0.00 | 1.45 | 0.00 | 0.91 | 17.27 | 259.06 | -35.75 | 65.42 | 0.6157 | 89.0 | 156.3 | |
| 0.00 | 3.63 | 0.00 | 2.25 | 13.93 | 259.26 | -35.55 | 70.65 | 0.6003 | 712.0 | 585.5 | |
| 0.00 | 2.00 | 0.00 | 1.25 | 16.35 | 258.78 | -36.02 | 66.98 | 0.6154 | 632.0 | 558.5 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 13.43 | 259.23 | -35.58 | 71.47 | 0.5991 | -495.0 | -374.2 | |
| 3.54 | 9.26 | 2.22 | 5.79 | 15.57 | 258.75 | -36.06 | 68.23 | 0.6128 | 905.9 | 529.0 | |
| 0.00 | 2.63 | 0.00 | 1.65 | 15.22 | 258.66 | -36.14 | 68.81 | 0.6126 | 778.0 | 718.2 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 16.12 | 258.48 | -36.33 | 67.47 | 0.6183 | 653.0 | 475.5 | |
| 1.63 | 4.81 | 1.03 | 3.03 | 15.65 | 258.34 | -36.47 | 68.27 | 0.6183 | 942.8 | 697.4 | |
| 0.00 | 4.09 | 0.00 | 2.58 | 15.93 | 258.20 | -36.60 | 67.90 | 0.6211 | 964.0 | 704.1 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 14.81 | 258.43 | -36.38 | 69.56 | 0.6141 | -483.0 | -345.0 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 10.52 | 259.09 | -35.72 | 76.32 | 0.5929 | -501.0 | -435.4 | |
| 0.00 | 2.81 | 0.00 | 1.77 | 15.09 | 258.30 | -36.51 | 69.18 | 0.6168 | 721.0 | 499.6 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 15.27 | 258.06 | -36.74 | 68.99 | 0.6205 | 947.0 | 741.5 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 15.82 | 257.75 | -37.06 | 68.25 | 0.6264 | 697.0 | 551.5 | |
| 3.27 | 16.89 | 2.08 | 10.78 | 16.29 | 257.61 | -37.20 | 67.59 | 0.6299 | 749.2 | 678.3 | |
| 19.07 | 40.50 | 11.94 | 25.42 | 13.52 | 258.12 | -36.69 | 71.72 | 0.6140 | -967.1 | -194.6 | |
| 0.00 | 1.45 | 0.00 | 0.95 | 19.61 | 256.49 | -38.32 | 63.15 | 0.6569 | -658.0 | -477.7 | |
| 3.18 | 23.61 | 2.02 | 15.11 | 15.62 | 257.39 | -37.41 | 68.70 | 0.6302 | 963.8 | 652.3 | |
| 1.09 | 2.45 | 0.70 | 1.57 | 16.46 | 257.05 | -37.76 | 67.56 | 0.6376 | 692.8 | 520.4 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 15.24 | 257.28 | -37.53 | 69.33 | 0.6304 | 153.0 | 165.2 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 16.27 | 256.93 | -37.88 | 67.90 | 0.6383 | 520.0 | 397.4 | |
| 1.63 | -51.00 | 1.05 | -51.00 | 15.64 | 256.99 | -37.82 | 68.83 | 0.6354 | 818.3 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.22 | 15.38 | 256.80 | -38.00 | 69.30 | 0.6369 | 883.0 | 649.6 | |
| 2.54 | -51.00 | 1.64 | -51.00 | 15.79 | 256.68 | -38.13 | 68.73 | 0.6399 | 790.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.88 | 16.25 | 256.37 | -38.44 | 68.15 | 0.6453 | 401.0 | 251.6 | |
| 0.00 | 2.27 | 0.00 | 1.46 | 15.56 | 256.44 | -38.36 | 69.16 | 0.6420 | 497.0 | 438.6 | |
| 0.00 | 2.36 | 0.00 | 1.52 | 15.34 | 256.41 | -38.40 | 69.51 | 0.6417 | 763.0 | 583.3 | |
| 0.00 | 0.82 | 0.00 | 0.53 | 15.15 | 256.17 | -38.64 | 69.89 | 0.6441 | 634.0 | 508.1 | |
| 0.00 | 4.54 | 0.00 | 2.93 | 14.64 | 256.07 | -38.73 | 70.69 | 0.6437 | 920.0 | 673.7 | |
| 0.00 | 2.27 | 0.00 | 1.49 | 15.83 | 254.99 | -39.82 | 69.29 | 0.6609 | -671.0 | -496.6 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 13.10 | 255.45 | -39.36 | 73.23 | 0.6474 | -621.0 | -558.0 | |
| 0.00 | 2.09 | 0.00 | 1.35 | 12.66 | 255.45 | -39.36 | 73.90 | 0.6463 | -638.0 | -514.2 | |
| 0.00 | 1.18 | 0.00 | 0.76 | 10.94 | 255.70 | -39.11 | 76.49 | 0.6392 | 648.0 | 533.8 | |
| 0.00 | 1.00 | 0.00 | 0.68 | 15.07 | 253.03 | -41.77 | 71.02 | 0.6826 | 523.0 | 383.1 | |
| 0.00 | 1.36 | 0.00 | 0.92 | 9.38 | 252.29 | -42.52 | 79.47 | 0.6805 | 525.0 | 377.1 | |
| 0.00 | 1.45 | 0.00 | 1.00 | 11.38 | 251.48 | -43.33 | 76.70 | 0.6935 | 735.0 | 650.1 | |
| 0.00 | 1.36 | 0.00 | 0.93 | 9.32 | 251.41 | -43.40 | 79.69 | 0.6914 | 578.0 | 429.7 | |
| 0.00 | 2.81 | 0.00 | 1.94 | 10.38 | 251.06 | -43.75 | 78.21 | 0.6971 | 599.0 | 507.0 | |
| 0.00 | 0.82 | 0.00 | 0.60 | 17.26 | 248.94 | -45.87 | 69.17 | 0.7357 | 561.0 | 455.7 | |
| 0.00 | 1.00 | 0.00 | 0.72 | 16.48 | 249.18 | -45.63 | 70.15 | 0.7310 | 362.0 | 400.7 | |
| 0.00 | 0.82 | 0.00 | 0.57 | 10.63 | 250.28 | -44.53 | 77.97 | 0.7070 | 589.0 | 492.3 | |
| 0.00 | 0.73 | 0.00 | 0.50 | 9.07 | 250.50 | -44.31 | 80.16 | 0.7024 | 464.0 | 485.6 | |
| 0.00 | 1.00 | 0.00 | 0.70 | 10.49 | 249.91 | -44.90 | 78.22 | 0.7112 | 424.0 | 296.4 | |
| 0.00 | 2.27 | 0.00 | 1.62 | 10.74 | 248.93 | -45.87 | 78.03 | 0.7232 | 214.0 | 196.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
