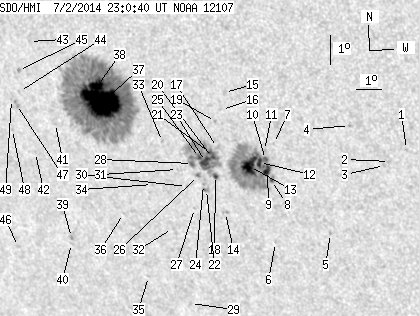

SDO HMI 2014-07-02 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 133.67 | 740.86 | 89.98 | 499.95 | -19.66 | 258.15 | -36.65 | 123.90 | 0.6792 | 591.2 | 157.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.88 | -20.23 | 268.05 | -26.75 | 132.71 | 0.5770 | 712.0 | 530.8 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -20.64 | 267.35 | -27.46 | 132.57 | 0.5881 | 706.0 | 610.8 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -20.78 | 267.14 | -27.67 | 132.55 | 0.5915 | 415.0 | 477.6 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -19.48 | 266.11 | -28.70 | 129.79 | 0.5914 | 881.0 | 723.2 | |
| 0.00 | 1.36 | 0.00 | 0.87 | -23.13 | 264.58 | -30.23 | 133.19 | 0.6373 | 657.0 | 484.3 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -23.50 | 262.34 | -32.47 | 131.75 | 0.6622 | -633.0 | -501.0 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -20.16 | 263.11 | -31.70 | 128.10 | 0.6290 | 666.0 | 569.2 | |
| 1.00 | 141.93 | 0.64 | 92.00 | -21.40 | 262.74 | -32.07 | 129.42 | 0.6423 | 756.8 | 168.4 | |
| 4.99 | -8.00 | 3.21 | -8.00 | -21.07 | 262.66 | -32.14 | 128.93 | 0.6405 | 992.3 | 999999 | |
| 1.45 | -8.00 | 0.93 | -8.00 | -20.70 | 262.67 | -32.13 | 128.46 | 0.6377 | 1008.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.99 | -20.40 | 262.71 | -32.10 | 128.09 | 0.6351 | 796.0 | 607.6 | |
| 3.63 | -8.00 | 2.34 | -8.00 | -20.81 | 262.42 | -32.39 | 128.40 | 0.6412 | 1001.9 | 999999 | |
| 16.34 | -8.00 | 10.59 | -8.00 | -20.95 | 261.99 | -32.81 | 128.25 | 0.6467 | 865.7 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.58 | -22.54 | 260.62 | -34.18 | 129.22 | 0.6721 | -723.0 | -610.0 | |
| 0.00 | 2.36 | 0.00 | 1.51 | -18.52 | 261.60 | -33.21 | 124.70 | 0.6339 | 50.0 | 133.7 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -19.09 | 261.36 | -33.45 | 125.28 | 0.6404 | 414.0 | 397.2 | |
| 0.00 | 2.54 | 0.00 | 1.66 | -20.35 | 260.89 | -33.92 | 126.62 | 0.6541 | -802.0 | -637.1 | |
| 2.00 | 81.09 | 1.32 | 53.54 | -21.30 | 260.57 | -34.24 | 127.60 | 0.6640 | -489.2 | -546.2 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -19.49 | 261.03 | -33.78 | 125.58 | 0.6467 | -657.0 | -502.3 | |
| 1.73 | -18.00 | 1.13 | -18.00 | -20.70 | 260.61 | -34.20 | 126.86 | 0.6594 | -1028.6 | 999999 | |
| 1.27 | -18.00 | 0.84 | -18.00 | -20.53 | 260.53 | -34.28 | 126.59 | 0.6591 | -992.8 | 999999 | |
| 0.00 | 3.63 | 0.00 | 2.42 | -21.78 | 260.08 | -34.73 | 127.86 | 0.6724 | -744.0 | -645.5 | |
| 6.72 | -18.00 | 4.44 | -18.00 | -20.84 | 260.29 | -34.51 | 126.81 | 0.6637 | -980.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -21.61 | 260.00 | -34.80 | 127.59 | 0.6720 | -784.0 | -687.2 | |
| 1.54 | -18.00 | 1.02 | -18.00 | -20.71 | 260.09 | -34.72 | 126.50 | 0.6650 | -891.0 | 999999 | |
| 0.82 | 2.72 | 0.54 | 1.82 | -21.32 | 259.89 | -34.92 | 127.13 | 0.6712 | -713.6 | -587.7 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -22.44 | 259.40 | -35.40 | 128.20 | 0.6837 | -461.0 | -392.9 | |
| 1.73 | -18.00 | 1.15 | -18.00 | -20.92 | 259.75 | -35.05 | 126.53 | 0.6699 | -667.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.09 | -25.72 | 258.16 | -36.65 | 131.27 | 0.7178 | -346.0 | -307.2 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -21.70 | 259.30 | -35.51 | 127.20 | 0.6798 | -464.0 | -355.1 | |
| 0.00 | 0.73 | 0.00 | 0.49 | -21.14 | 259.09 | -35.72 | 126.34 | 0.6782 | -363.0 | -284.6 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -23.15 | 258.28 | -36.52 | 128.29 | 0.6995 | -495.0 | -427.5 | |
| 0.00 | 1.09 | 0.00 | 0.73 | -20.22 | 258.74 | -36.07 | 124.92 | 0.6760 | -531.0 | -446.2 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -21.68 | 257.92 | -36.89 | 126.22 | 0.6937 | 657.0 | 498.6 | |
| 0.00 | 1.18 | 0.00 | 0.85 | -24.84 | 256.69 | -38.11 | 129.25 | 0.7256 | -530.0 | -404.8 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -22.71 | 256.38 | -38.43 | 126.49 | 0.7154 | -317.0 | -248.7 | |
| 78.55 | 467.46 | 53.72 | 320.13 | -19.01 | 256.59 | -38.22 | 121.96 | 0.6917 | 1193.9 | 329.6 | |
| 11.90 | -37.00 | 8.11 | -37.00 | -18.45 | 256.58 | -38.23 | 121.22 | 0.6887 | 1288.7 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.08 | -23.61 | 253.81 | -41.00 | 126.01 | 0.7454 | -728.0 | -575.3 | |
| 0.00 | 1.45 | 0.00 | 1.08 | -23.82 | 253.73 | -41.08 | 126.20 | 0.7473 | -496.0 | -440.4 | |
| 0.00 | 1.63 | 0.00 | 1.16 | -19.77 | 254.44 | -40.37 | 121.68 | 0.7185 | -147.0 | -101.8 | |
| 0.00 | 1.00 | 0.00 | 0.73 | -20.78 | 253.25 | -41.56 | 122.26 | 0.7358 | -698.0 | -559.3 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -17.11 | 254.11 | -40.70 | 118.07 | 0.7086 | -397.0 | -372.5 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -18.77 | 253.20 | -41.60 | 119.73 | 0.7263 | -398.0 | -507.3 | |
| 0.00 | 1.63 | 0.00 | 1.16 | -18.07 | 253.37 | -41.44 | 118.94 | 0.7212 | -722.0 | -624.7 | |
| 0.00 | 1.36 | 0.00 | 1.06 | -24.01 | 251.25 | -43.56 | 125.06 | 0.7712 | -586.0 | -439.4 | |
| 0.00 | 3.36 | 0.00 | 2.43 | -19.20 | 252.94 | -41.87 | 120.14 | 0.7311 | -546.0 | -592.7 | |
| 0.00 | 1.18 | 0.00 | 0.87 | -20.04 | 252.49 | -42.32 | 120.95 | 0.7398 | -483.0 | -367.9 | |
| 0.00 | 0.64 | 0.00 | 0.46 | -19.04 | 252.77 | -42.04 | 119.85 | 0.7321 | -670.0 | -587.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
