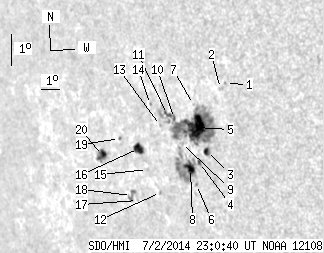

SDO HMI 2014-07-02 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.86 | 203.29 | 52.64 | 177.80 | -8.01 | 240.43 | -54.38 | 101.93 | 0.8245 | 282.7 | 112.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-02 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.96 | -6.11 | 243.00 | -51.81 | 100.09 | 0.7960 | 601.0 | 545.5 | |
| 0.00 | 2.45 | 0.00 | 2.01 | -6.27 | 242.73 | -52.08 | 100.24 | 0.7991 | 600.0 | 519.5 | |
| 2.91 | 4.72 | 2.46 | 4.00 | -8.27 | 241.67 | -53.14 | 102.48 | 0.8131 | 840.2 | 669.8 | |
| 1.18 | 44.58 | 1.01 | 38.92 | -8.63 | 241.24 | -53.57 | 102.82 | 0.8180 | 699.5 | -30.2 | |
| 31.87 | 115.23 | 27.16 | 98.66 | -7.54 | 241.29 | -53.52 | 101.52 | 0.8156 | 734.1 | 265.6 | |
| 0.00 | 1.09 | 0.00 | 0.94 | -9.32 | 240.92 | -53.88 | 103.60 | 0.8223 | 523.0 | 428.2 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -6.83 | 241.26 | -53.55 | 100.65 | 0.8148 | 418.0 | 382.3 | |
| 7.54 | -4.00 | 6.55 | -4.00 | -8.83 | 240.72 | -54.09 | 102.97 | 0.8234 | 589.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.11 | -8.07 | 240.40 | -54.41 | 101.99 | 0.8252 | 158.0 | 134.5 | |
| 0.64 | -5.00 | 0.56 | -5.00 | -7.31 | 240.17 | -54.63 | 101.03 | 0.8262 | 399.6 | 999999 | |
| 1.91 | -5.00 | 1.68 | -5.00 | -7.20 | 239.82 | -54.99 | 100.83 | 0.8295 | 319.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.99 | -9.66 | 238.90 | -55.91 | 103.57 | 0.8420 | 275.0 | 240.3 | |
| 0.00 | 1.00 | 0.00 | 0.89 | -7.56 | 239.37 | -55.44 | 101.18 | 0.8343 | -540.0 | -481.8 | |
| 0.00 | 1.09 | 0.00 | 0.98 | -6.93 | 238.94 | -55.87 | 100.36 | 0.8374 | -506.0 | -407.6 | |
| 0.00 | 1.18 | 0.00 | 1.09 | -8.97 | 238.34 | -56.47 | 102.65 | 0.8459 | -126.0 | -104.7 | |
| 7.36 | 9.99 | 6.83 | 9.28 | -8.33 | 237.98 | -56.83 | 101.84 | 0.8482 | -701.4 | -381.3 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -9.97 | 237.51 | -57.30 | 103.65 | 0.8549 | -591.0 | -561.3 | |
| 0.00 | 5.99 | 0.00 | 5.73 | -9.83 | 237.20 | -57.61 | 103.43 | 0.8574 | -620.0 | -505.9 | |
| 0.00 | 1.45 | 0.00 | 1.39 | -8.07 | 236.95 | -57.86 | 101.35 | 0.8571 | -550.0 | -477.4 | |
| 6.45 | 10.44 | 6.39 | 10.36 | -8.65 | 235.80 | -59.01 | 101.82 | 0.8678 | -612.4 | -328.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
