SDO HMI 2014-07-02 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.08 | 21.71 | 14.03 | 25.09 | -16.26 | 232.31 | -62.49 | 109.60 | 0.9054 | -231.5 | -155.7 | |
|
previous
or next observation for the same group /

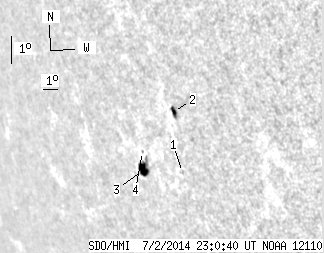

back to the solar disc SDO HMI 2014-07-02 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.99 | -16.68 | 234.21 | -60.59 | 110.48 | 0.8927 | 467.0 | 357.3 | |
| 3.00 | 5.09 | 3.18 | 5.40 | -14.71 | 234.62 | -60.19 | 108.40 | 0.8863 | 467.2 | 329.9 | |
| 9.08 | 14.98 | 10.85 | 17.84 | -16.71 | 231.53 | -63.27 | 109.93 | 0.9117 | -490.7 | -363.4 | |
| 0.00 | 0.73 | 0.00 | 0.86 | -16.12 | 231.81 | -63.00 | 109.35 | 0.9089 | -340.0 | -310.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
