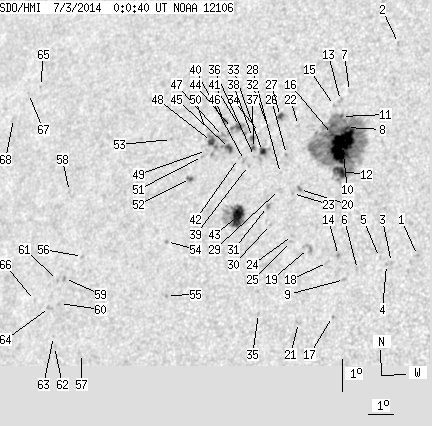

SDO HMI 2014-07-03 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.24 | 436.97 | 59.47 | 267.74 | 15.20 | 259.99 | -34.26 | 67.92 | 0.5881 | -342.6 | -108.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.73 | 12.49 | 264.97 | -29.29 | 70.36 | 0.5091 | -829.0 | -734.6 | |
| 0.00 | 1.91 | 0.00 | 1.14 | 19.09 | 263.19 | -31.06 | 59.85 | 0.5661 | -590.0 | -542.2 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 12.25 | 264.06 | -30.19 | 71.26 | 0.5210 | -792.0 | -677.6 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 12.18 | 263.89 | -30.36 | 71.47 | 0.5232 | -696.0 | -582.9 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 12.39 | 263.61 | -30.64 | 71.21 | 0.5279 | -584.0 | -456.6 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 12.00 | 262.86 | -31.40 | 72.26 | 0.5371 | -631.0 | -549.4 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 17.53 | 261.66 | -32.60 | 63.36 | 0.5769 | -587.0 | -469.1 | |
| 0.91 | 251.00 | 0.55 | 151.02 | 16.40 | 261.76 | -32.49 | 65.16 | 0.5701 | -763.7 | -325.0 | |
| 0.00 | 2.00 | 0.00 | 1.18 | 11.68 | 262.42 | -31.83 | 73.02 | 0.5421 | -779.0 | -614.4 | |
| 45.68 | -8.00 | 27.45 | -8.00 | 15.83 | 261.71 | -32.54 | 66.13 | 0.5681 | -1275.2 | 999999 | |
| 0.82 | -8.00 | 0.49 | -8.00 | 16.73 | 261.51 | -32.75 | 64.74 | 0.5750 | -493.2 | 999999 | |
| 8.17 | -8.00 | 4.89 | -8.00 | 15.02 | 261.78 | -32.47 | 67.47 | 0.5636 | -1010.5 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.43 | 17.23 | 261.37 | -32.88 | 64.00 | 0.5791 | -602.0 | -460.2 | |
| 0.00 | 2.00 | 0.00 | 1.18 | 12.42 | 262.11 | -32.15 | 71.84 | 0.5490 | -754.0 | -520.2 | |
| 0.00 | 1.63 | 0.00 | 0.99 | 17.07 | 261.18 | -33.08 | 64.37 | 0.5809 | -555.0 | -449.9 | |
| 1.82 | -8.00 | 1.10 | -8.00 | 16.16 | 261.28 | -32.98 | 65.81 | 0.5753 | -352.2 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 10.53 | 262.12 | -32.13 | 75.21 | 0.5429 | -674.0 | -660.9 | |
| 0.00 | 1.91 | 0.00 | 1.13 | 12.19 | 261.73 | -32.52 | 72.40 | 0.5535 | -629.0 | -572.9 | |
| 0.00 | 6.54 | 0.00 | 3.92 | 12.60 | 260.97 | -33.29 | 71.98 | 0.5654 | -611.0 | -609.3 | |
| 0.45 | 2.18 | 0.28 | 1.32 | 14.42 | 260.34 | -33.92 | 69.17 | 0.5804 | -785.6 | -632.3 | |
| 0.00 | 2.36 | 0.00 | 1.41 | 10.31 | 260.89 | -33.36 | 76.00 | 0.5597 | -472.0 | -411.6 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 16.41 | 259.93 | -34.33 | 66.10 | 0.5939 | 669.0 | 442.3 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 14.29 | 260.09 | -34.16 | 69.49 | 0.5831 | -589.0 | -445.6 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 12.99 | 260.31 | -33.95 | 71.59 | 0.5757 | -608.0 | -510.9 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 12.80 | 260.30 | -33.96 | 71.91 | 0.5752 | -624.0 | -527.5 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 15.49 | 259.65 | -34.61 | 67.72 | 0.5937 | 783.0 | 693.2 | |
| 2.36 | 4.90 | 1.47 | 3.04 | 16.67 | 259.18 | -35.08 | 66.05 | 0.6046 | 870.2 | 573.8 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 14.89 | 259.53 | -34.73 | 68.74 | 0.5929 | -363.0 | -263.3 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 14.40 | 259.58 | -34.68 | 69.54 | 0.5904 | -28.0 | -18.1 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 13.30 | 259.42 | -34.84 | 71.40 | 0.5887 | -711.0 | -533.7 | |
| 0.54 | 2.54 | 0.33 | 1.56 | 13.86 | 259.21 | -35.04 | 70.57 | 0.5933 | 796.5 | 671.3 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 16.37 | 258.73 | -35.52 | 66.73 | 0.6090 | 691.0 | 617.4 | |
| 3.54 | 10.35 | 2.20 | 6.43 | 15.56 | 258.70 | -35.55 | 68.04 | 0.6062 | 886.8 | 662.5 | |
| 0.00 | 0.82 | 0.00 | 0.51 | 16.15 | 258.47 | -35.79 | 67.21 | 0.6115 | 684.0 | 548.6 | |
| 0.00 | 1.45 | 0.00 | 0.88 | 10.55 | 259.37 | -34.89 | 76.05 | 0.5816 | -585.0 | -402.1 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 15.39 | 258.42 | -35.83 | 68.42 | 0.6092 | 742.0 | 653.7 | |
| 1.18 | 3.90 | 0.74 | 2.44 | 15.64 | 258.33 | -35.92 | 68.07 | 0.6112 | 966.5 | 766.2 | |
| 1.36 | 2.27 | 0.85 | 1.42 | 15.98 | 258.23 | -36.03 | 67.57 | 0.6140 | 856.9 | 725.5 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 15.11 | 258.25 | -36.01 | 68.95 | 0.6104 | 639.0 | 561.5 | |
| 0.00 | 1.91 | 0.00 | 1.19 | 15.26 | 258.06 | -36.20 | 68.79 | 0.6134 | 630.0 | 658.1 | |
| 2.82 | 14.35 | 1.78 | 9.06 | 16.31 | 257.64 | -36.61 | 67.32 | 0.6226 | 752.5 | 546.8 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 15.31 | 257.81 | -36.44 | 68.80 | 0.6167 | 615.0 | 441.8 | |
| 17.07 | 39.59 | 10.62 | 24.67 | 13.51 | 258.11 | -36.14 | 71.55 | 0.6068 | -976.7 | -239.9 | |
| 0.54 | -41.00 | 0.35 | -41.00 | 16.24 | 257.38 | -36.88 | 67.54 | 0.6257 | 696.2 | 999999 | |
| 3.18 | 7.90 | 2.01 | 5.00 | 15.61 | 257.39 | -36.86 | 68.50 | 0.6232 | 957.5 | 730.4 | |
| 1.45 | 3.45 | 0.93 | 2.20 | 16.48 | 257.01 | -37.25 | 67.33 | 0.6312 | 600.4 | 430.7 | |
| 0.00 | 8.45 | 0.00 | 5.37 | 15.98 | 257.08 | -37.18 | 68.07 | 0.6285 | 697.0 | 734.1 | |
| 3.72 | 14.53 | 2.38 | 9.27 | 15.81 | 256.63 | -37.62 | 68.51 | 0.6335 | 785.4 | 592.2 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 15.52 | 256.50 | -37.76 | 69.00 | 0.6342 | 612.0 | 482.6 | |
| 0.00 | 0.54 | 0.00 | 0.35 | 16.18 | 256.31 | -37.94 | 68.08 | 0.6388 | 252.0 | 271.0 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 15.33 | 256.38 | -37.88 | 69.34 | 0.6351 | 821.0 | 673.1 | |
| 1.63 | 3.27 | 1.05 | 2.10 | 14.63 | 256.04 | -38.21 | 70.53 | 0.6371 | 854.7 | 667.1 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 15.82 | 255.01 | -39.25 | 69.10 | 0.6538 | -593.0 | -548.5 | |
| 0.00 | 1.45 | 0.00 | 0.93 | 12.65 | 255.46 | -38.80 | 73.76 | 0.6390 | -685.0 | -541.9 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 10.99 | 255.73 | -38.52 | 76.27 | 0.6316 | 630.0 | 508.3 | |
| 0.00 | 1.36 | 0.00 | 0.92 | 12.08 | 252.11 | -42.15 | 75.46 | 0.6802 | 644.0 | 496.9 | |
| 0.00 | 0.64 | 0.00 | 0.42 | 9.10 | 252.56 | -41.69 | 79.77 | 0.6697 | 135.0 | 216.3 | |
| 0.00 | 1.45 | 0.00 | 1.00 | 14.07 | 251.13 | -43.13 | 72.84 | 0.6963 | 322.0 | 269.9 | |
| 0.00 | 1.82 | 0.00 | 1.23 | 11.38 | 251.48 | -42.78 | 76.61 | 0.6867 | 759.0 | 656.6 | |
| 0.00 | 1.63 | 0.00 | 1.11 | 10.60 | 251.40 | -42.85 | 77.75 | 0.6864 | 660.0 | 555.2 | |
| 0.00 | 1.27 | 0.00 | 0.87 | 11.31 | 251.19 | -43.06 | 76.77 | 0.6901 | 647.0 | 548.4 | |
| 0.00 | 1.18 | 0.00 | 0.80 | 9.28 | 251.41 | -42.85 | 79.67 | 0.6845 | 660.0 | 498.0 | |
| 0.00 | 0.82 | 0.00 | 0.55 | 9.58 | 251.32 | -42.94 | 79.24 | 0.6860 | 616.0 | 555.2 | |
| 0.00 | 2.63 | 0.00 | 1.80 | 10.46 | 251.00 | -43.25 | 78.01 | 0.6911 | 577.0 | 488.0 | |
| 0.00 | 0.91 | 0.00 | 0.66 | 17.28 | 248.96 | -45.29 | 68.98 | 0.7293 | 572.0 | 437.8 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 10.66 | 250.32 | -43.93 | 77.85 | 0.6997 | 568.0 | 531.3 | |
| 0.00 | 0.82 | 0.00 | 0.59 | 17.05 | 248.49 | -45.76 | 69.43 | 0.7339 | 409.0 | 421.2 | |
| 0.00 | 1.91 | 0.00 | 1.39 | 16.24 | 248.05 | -46.21 | 70.62 | 0.7369 | 267.0 | 296.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
