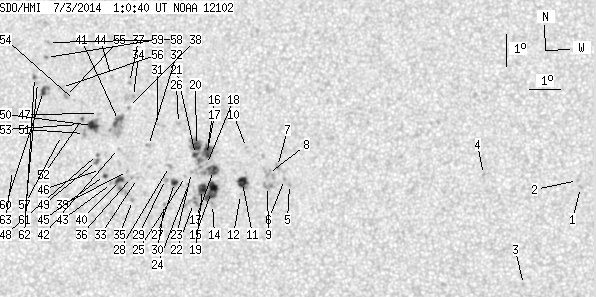

SDO HMI 2014-07-03 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.30 | 246.00 | 37.81 | 128.88 | 12.42 | 277.32 | -16.38 | 58.69 | 0.3225 | -232.4 | -136.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 0.87 | 11.55 | 290.26 | -3.44 | 21.76 | 0.1595 | -768.0 | -586.6 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 11.76 | 290.16 | -3.54 | 21.80 | 0.1635 | -878.0 | -613.0 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 8.56 | 288.53 | -5.18 | 42.94 | 0.1316 | -875.0 | -691.4 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 11.94 | 287.22 | -6.48 | 35.57 | 0.1907 | -815.0 | -643.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 11.58 | 281.11 | -12.59 | 55.06 | 0.2617 | -984.0 | -763.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 11.74 | 280.94 | -12.76 | 54.92 | 0.2655 | -1038.0 | -856.3 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 12.13 | 280.70 | -13.00 | 54.17 | 0.2725 | -851.0 | -721.3 | |
| 0.00 | 9.72 | 0.00 | 5.00 | 11.91 | 280.42 | -13.28 | 55.39 | 0.2743 | -979.0 | -724.3 | |
| 0.00 | 5.45 | 0.00 | 2.80 | 11.51 | 280.41 | -13.29 | 56.67 | 0.2709 | -807.0 | -780.4 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 12.71 | 279.67 | -14.03 | 54.46 | 0.2919 | -714.0 | -622.3 | |
| 7.45 | 10.54 | 3.85 | 5.44 | 11.63 | 279.60 | -14.10 | 57.79 | 0.2833 | -1128.0 | -880.2 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 11.26 | 279.56 | -14.15 | 59.01 | 0.2808 | -715.0 | -618.4 | |
| 7.08 | 13.53 | 3.68 | 7.03 | 11.99 | 278.65 | -15.05 | 58.33 | 0.2998 | -1156.8 | -860.0 | |
| 0.00 | 2.63 | 0.00 | 1.36 | 10.94 | 278.67 | -15.03 | 61.43 | 0.2912 | -859.0 | -554.5 | |
| 13.08 | 27.34 | 6.78 | 14.18 | 11.34 | 278.62 | -15.08 | 60.29 | 0.2950 | -1152.1 | -722.0 | |
| 4.18 | 39.69 | 2.17 | 20.68 | 12.63 | 278.42 | -15.28 | 56.86 | 0.3085 | -957.0 | -756.4 | |
| 3.09 | -16.00 | 1.61 | -16.00 | 12.48 | 278.40 | -15.31 | 57.34 | 0.3075 | -1176.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 12.17 | 278.41 | -15.29 | 58.18 | 0.3047 | -842.0 | -757.5 | |
| 6.36 | -15.00 | 3.30 | -15.00 | 11.40 | 278.33 | -15.37 | 60.57 | 0.2997 | -930.7 | 999999 | |
| 5.90 | -16.00 | 3.08 | -16.00 | 12.75 | 278.06 | -15.65 | 57.12 | 0.3146 | -926.6 | 999999 | |
| 1.54 | -16.00 | 0.80 | -16.00 | 12.47 | 278.04 | -15.66 | 57.92 | 0.3125 | -892.6 | 999999 | |
| 0.00 | 10.44 | 0.00 | 5.42 | 10.96 | 278.06 | -15.64 | 62.26 | 0.3004 | -562.0 | -651.3 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 11.92 | 277.94 | -15.76 | 59.64 | 0.3093 | -596.0 | -513.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 11.54 | 277.87 | -15.83 | 60.82 | 0.3076 | -674.0 | -494.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 11.79 | 277.76 | -15.95 | 60.27 | 0.3110 | -647.0 | -478.3 | |
| 0.00 | 2.00 | 0.00 | 1.05 | 13.42 | 277.43 | -16.28 | 56.31 | 0.3291 | -798.0 | -624.5 | |
| 3.00 | 4.81 | 1.56 | 2.51 | 11.60 | 277.41 | -16.29 | 61.31 | 0.3146 | -730.2 | -467.6 | |
| 0.00 | 2.54 | 0.00 | 1.33 | 12.09 | 277.22 | -16.48 | 60.20 | 0.3211 | -692.0 | -573.3 | |
| 0.00 | 3.27 | 0.00 | 1.71 | 11.69 | 277.11 | -16.59 | 61.47 | 0.3196 | -189.0 | -186.1 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 10.92 | 277.13 | -16.58 | 63.66 | 0.3139 | -707.0 | -577.2 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 13.38 | 276.74 | -16.96 | 57.44 | 0.3382 | -677.0 | -470.5 | |
| 0.00 | 2.45 | 0.00 | 1.29 | 12.73 | 276.49 | -17.21 | 59.49 | 0.3364 | -873.0 | -630.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 11.71 | 276.20 | -17.50 | 62.62 | 0.3331 | 174.0 | 233.5 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 14.24 | 275.89 | -17.82 | 56.52 | 0.3571 | -964.0 | -755.4 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 11.03 | 276.08 | -17.62 | 64.64 | 0.3303 | 768.0 | 521.7 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 11.73 | 276.00 | -17.70 | 62.79 | 0.3362 | 902.0 | 683.9 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 14.67 | 275.72 | -17.98 | 55.72 | 0.3630 | -828.0 | -638.2 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 13.90 | 275.75 | -17.95 | 57.54 | 0.3561 | 840.0 | 637.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 11.92 | 275.86 | -17.84 | 62.47 | 0.3395 | 892.0 | 695.0 | |
| 3.63 | 10.35 | 1.91 | 5.45 | 11.64 | 275.62 | -18.09 | 63.52 | 0.3412 | 1120.1 | 852.3 | |
| 4.27 | 20.43 | 2.26 | 10.83 | 13.49 | 275.45 | -18.25 | 58.94 | 0.3570 | 1146.0 | 661.7 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 12.62 | 275.52 | -18.19 | 61.05 | 0.3496 | -571.0 | -386.9 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 11.54 | 275.36 | -18.34 | 64.07 | 0.3443 | 557.0 | 580.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 14.85 | 275.11 | -18.60 | 56.14 | 0.3728 | -673.0 | -448.6 | |
| 1.09 | 1.63 | 0.58 | 0.86 | 11.78 | 275.12 | -18.59 | 63.71 | 0.3495 | 939.1 | 829.8 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 11.97 | 274.97 | -18.73 | 63.40 | 0.3529 | 738.0 | 599.7 | |
| 0.00 | 1.82 | 0.00 | 0.97 | 13.70 | 274.77 | -18.93 | 59.30 | 0.3681 | 722.0 | 600.3 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 12.43 | 274.84 | -18.86 | 62.36 | 0.3579 | 871.0 | 716.2 | |
| 1.00 | 2.54 | 0.53 | 1.35 | 12.21 | 274.82 | -18.88 | 62.93 | 0.3567 | 901.9 | 685.4 | |
| 6.27 | 11.63 | 3.34 | 6.19 | 13.32 | 274.60 | -19.10 | 60.41 | 0.3677 | 1169.8 | 896.5 | |
| 0.00 | 3.81 | 0.00 | 2.03 | 13.07 | 274.36 | -19.34 | 61.32 | 0.3694 | 833.0 | 722.3 | |
| 0.64 | 1.45 | 0.34 | 0.78 | 13.53 | 274.26 | -19.45 | 60.32 | 0.3742 | 911.4 | 813.0 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 13.34 | 274.14 | -19.57 | 60.91 | 0.3745 | 802.0 | 688.8 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 14.09 | 273.94 | -19.76 | 59.38 | 0.3827 | 763.0 | 626.6 | |
| 0.00 | 2.00 | 0.00 | 1.07 | 14.20 | 273.63 | -20.07 | 59.47 | 0.3879 | 1011.0 | 812.3 | |
| 0.00 | 2.36 | 0.00 | 1.27 | 14.48 | 273.47 | -20.23 | 59.03 | 0.3922 | 948.0 | 695.7 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 12.99 | 273.60 | -20.10 | 62.35 | 0.3797 | 685.0 | 594.0 | |
| 0.00 | 2.18 | 0.00 | 1.18 | 15.88 | 272.89 | -20.81 | 56.65 | 0.4109 | 897.0 | 714.0 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 15.41 | 272.87 | -20.83 | 57.67 | 0.4074 | 977.0 | 861.9 | |
| 3.27 | 8.08 | 1.77 | 4.36 | 14.35 | 272.88 | -20.83 | 60.00 | 0.3994 | 1016.9 | 817.5 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 14.62 | 272.65 | -21.06 | 59.63 | 0.4046 | 755.0 | 588.4 | |
| 0.45 | 2.27 | 0.25 | 1.23 | 14.78 | 272.53 | -21.17 | 59.42 | 0.4073 | 929.8 | 738.0 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 11.89 | 272.06 | -21.65 | 66.51 | 0.3953 | 820.0 | 573.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
