groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

12102 72.85 242.88 37.97 126.91 12.43 277.17 -15.98 58.25 0.3170 -160.5 -104.6


previous   or   next   observation for the same group / back to the solar disc

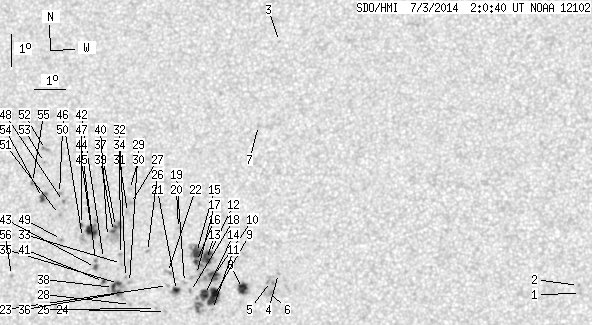

SDO HMI 2014-07-03 02:00:40 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 0.73 0.00 0.36 11.53 290.27 -2.88 18.54 0.1557 -841.0 -697.5
2 0.00 1.18 0.00 0.59 11.78 290.20 -2.95 18.41 0.1601 -936.0 -720.2
3 0.00 0.64 0.00 0.34 19.34 280.34 -12.81 36.65 0.3521 -596.0 -400.3
4 0.00 1.27 0.00 0.65 12.09 280.76 -12.40 53.06 0.2638 -903.0 -653.3
5 0.00 3.91 0.00 2.01 11.84 280.51 -12.64 54.35 0.2647 -869.0 -908.3
6 0.00 7.36 0.00 3.78 11.53 280.43 -12.72 55.50 0.2630 -628.0 -758.4
7 0.00 1.63 0.00 0.86 16.68 279.85 -13.31 42.98 0.3248 844.0 629.4
8 7.08 10.08 3.65 5.19 11.62 279.63 -13.52 56.80 0.2749 -1158.2 -859.2
9 12.63 39.51 6.52 20.43 11.36 278.71 -14.44 59.21 0.2858 -1188.3 -752.3
10 5.54 16.17 2.87 8.37 12.01 278.68 -14.47 57.32 0.2917 -1162.6 -872.0
11 0.00 0.91 0.00 0.47 10.96 278.70 -14.45 60.48 0.2828 -889.0 -714.0
12 2.63 37.33 1.37 19.40 12.68 278.51 -14.64 55.65 0.3000 -911.6 -689.5
13 6.09 -12.00 3.16 -12.00 12.50 278.43 -14.73 56.33 0.2995 -1111.0 999999
14 6.27 -9.00 3.24 -9.00 11.42 278.42 -14.73 59.52 0.2905 -949.3 999999
15 7.08 -12.00 3.69 -12.00 12.71 278.09 -15.06 56.30 0.3060 -904.8 999999
16 1.82 -12.00 0.94 -12.00 12.43 278.11 -15.05 57.05 0.3034 -937.1 999999
17 0.00 5.54 0.00 2.88 12.03 278.13 -15.02 58.17 0.2997 -389.0 -674.4
18 0.00 1.82 0.00 0.94 11.50 277.97 -15.19 59.98 0.2978 -691.0 -507.5
19 0.00 1.45 0.00 0.76 11.78 277.76 -15.40 59.50 0.3030 -668.0 -430.2
20 0.00 2.09 0.00 1.09 13.45 277.46 -15.69 55.34 0.3212 -841.0 -643.8
21 2.72 6.54 1.42 3.40 11.53 277.51 -15.64 60.60 0.3046 -674.9 -137.5
22 0.00 3.27 0.00 1.71 12.08 277.19 -15.96 59.49 0.3135 -570.0 -491.3
23 0.00 1.54 0.00 0.80 11.68 277.21 -15.94 60.60 0.3101 -561.0 -323.6
24 0.00 1.63 0.00 0.85 10.88 277.19 -15.96 62.98 0.3044 -835.0 -509.2
25 0.00 0.73 0.00 0.38 10.97 276.86 -16.29 63.16 0.3099 -566.0 -461.1
26 0.00 1.82 0.00 0.95 12.72 276.50 -16.66 58.75 0.3284 -810.0 -566.8
27 0.00 4.81 0.00 2.54 14.20 275.83 -17.32 55.93 0.3499 -853.0 -640.7
28 0.00 0.91 0.00 0.48 11.08 276.05 -17.11 63.89 0.3228 566.0 482.7
29 0.00 2.09 0.00 1.10 11.76 275.97 -17.18 62.09 0.3286 900.0 649.7
30 0.00 2.00 0.00 1.06 14.63 275.77 -17.39 54.97 0.3546 -898.0 -551.7
31 0.00 2.18 0.00 1.15 13.92 275.76 -17.40 56.73 0.3486 736.0 475.1
32 0.00 1.00 0.00 0.52 11.91 275.83 -17.32 61.86 0.3318 971.0 812.9
33 0.00 1.18 0.00 0.62 12.34 275.67 -17.48 60.90 0.3372 766.0 615.7
34 0.00 1.27 0.00 0.67 12.62 275.62 -17.53 60.24 0.3401 -690.0 -562.9
35 1.82 19.62 0.95 10.30 11.72 275.62 -17.54 62.64 0.3336 1178.9 753.4
36 1.91 -35.00 1.00 -35.00 11.41 275.64 -17.52 63.46 0.3312 1184.2 999999
37 0.82 16.17 0.43 8.54 13.48 275.40 -17.76 58.33 0.3500 1157.0 758.6
38 2.72 -35.00 1.43 -35.00 11.59 275.46 -17.69 63.18 0.3350 1097.4 999999
39 1.09 -37.00 0.58 -37.00 13.32 275.34 -17.81 58.79 0.3495 1200.6 999999
40 0.00 0.54 0.00 0.29 13.17 275.16 -18.00 59.44 0.3509 936.0 808.5
41 1.00 2.00 0.53 1.05 11.77 275.12 -18.03 63.10 0.3412 920.5 748.0
42 0.00 1.18 0.00 0.62 12.48 275.07 -18.08 61.29 0.3470 771.0 696.5
43 1.00 2.54 0.53 1.34 12.20 274.83 -18.32 62.32 0.3485 1004.6 731.6
44 0.00 1.91 0.00 1.01 12.42 274.82 -18.34 61.78 0.3502 943.0 682.0
45 7.45 12.63 3.95 6.70 13.34 274.61 -18.54 59.69 0.3599 1168.3 844.3
46 0.00 3.81 0.00 2.03 13.12 274.33 -18.82 60.58 0.3622 742.0 683.9
47 0.73 1.54 0.39 0.82 13.52 274.27 -18.88 59.68 0.3661 921.2 809.2
48 0.00 1.36 0.00 0.73 14.23 273.61 -19.54 58.81 0.3807 1052.0 909.5
49 0.00 1.18 0.00 0.63 13.05 273.64 -19.51 61.57 0.3715 810.0 599.8
50 0.00 2.27 0.00 1.22 14.47 273.45 -19.70 58.43 0.3847 891.0 726.3
51 0.00 1.09 0.00 0.58 13.82 273.51 -19.64 59.87 0.3790 817.0 589.6
52 0.00 3.18 0.00 1.72 15.84 272.85 -20.30 56.14 0.4037 942.0 764.5
53 0.00 0.82 0.00 0.44 15.43 272.86 -20.29 57.01 0.4003 1041.0 793.1
54 2.45 5.45 1.32 2.93 14.34 272.90 -20.26 59.39 0.3914 1034.0 879.2
55 0.00 1.73 0.00 0.93 14.80 272.52 -20.64 58.79 0.4001 915.0 805.1
56 0.00 1.27 0.00 0.68 11.91 272.07 -21.08 65.96 0.3870 861.0 676.2


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
