SDO HMI 2014-07-03 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.16 | 0.00 | 12.19 | 7.07 | 264.44 | -28.71 | 80.66 | 0.4781 | 196.6 | 183.0 | |
|
previous
or next observation for the same group /

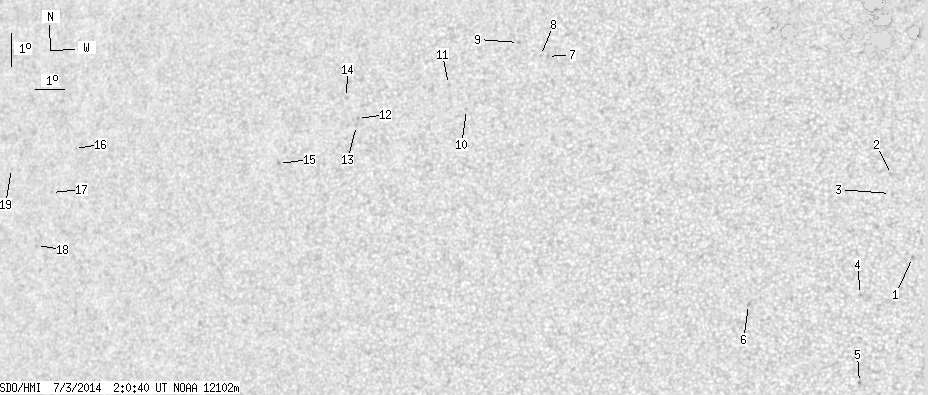

back to the solar disc SDO HMI 2014-07-03 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.79 | 4.73 | 279.83 | -13.33 | 82.50 | 0.2327 | -971.0 | -693.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 7.26 | 279.10 | -14.05 | 72.84 | 0.2532 | -767.0 | -404.4 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 6.67 | 279.09 | -14.07 | 75.09 | 0.2509 | -538.0 | -571.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 3.58 | 278.21 | -14.95 | 87.65 | 0.2588 | -779.0 | -626.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 0.90 | 278.20 | -14.95 | 97.99 | 0.2617 | -968.0 | -830.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 3.23 | 274.64 | -18.51 | 89.03 | 0.3184 | -912.0 | -751.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 10.68 | 267.60 | -25.55 | 72.04 | 0.4474 | 801.0 | 652.0 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 10.71 | 267.36 | -25.79 | 72.12 | 0.4511 | 612.0 | 520.3 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 11.09 | 266.56 | -26.59 | 71.75 | 0.4644 | 817.0 | 704.8 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 8.99 | 264.94 | -28.22 | 76.83 | 0.4816 | 690.0 | 601.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 9.74 | 264.23 | -28.92 | 75.57 | 0.4941 | 791.0 | 610.0 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 8.62 | 261.07 | -32.08 | 78.74 | 0.5375 | 817.0 | 697.8 | |
| 0.00 | 0.82 | 0.00 | 0.48 | 8.40 | 261.06 | -32.10 | 79.14 | 0.5373 | 556.0 | 463.3 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 9.25 | 260.61 | -32.54 | 77.70 | 0.5455 | 886.0 | 583.9 | |
| 0.00 | 1.45 | 0.00 | 0.88 | 7.16 | 258.29 | -34.87 | 81.90 | 0.5751 | 797.0 | 664.4 | |
| 0.00 | 0.73 | 0.00 | 0.49 | 7.36 | 250.18 | -42.97 | 82.51 | 0.6842 | 516.0 | 403.1 | |
| 0.00 | 1.27 | 0.00 | 0.87 | 5.98 | 249.35 | -43.80 | 84.57 | 0.6937 | 439.0 | 305.0 | |
| 0.00 | 1.09 | 0.00 | 0.75 | 4.34 | 248.85 | -44.30 | 86.94 | 0.6997 | 476.0 | 415.1 | |
| 0.00 | 0.91 | 0.00 | 0.64 | 6.65 | 247.55 | -45.60 | 83.71 | 0.7163 | 472.0 | 305.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
