SDO HMI 2014-07-03 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.64 | 438.79 | 54.06 | 264.84 | 15.26 | 260.26 | -32.90 | 67.18 | 0.5704 | -264.4 | -103.5 | |
|
previous
or next observation for the same group /

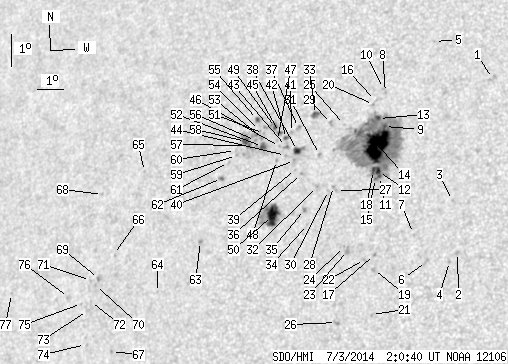

back to the solar disc SDO HMI 2014-07-03 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.72 | 0.00 | 2.15 | 18.02 | 265.54 | -27.61 | 59.12 | 0.5156 | -616.0 | -545.0 | |
| 0.00 | 2.00 | 0.00 | 1.14 | 12.57 | 265.07 | -28.09 | 69.59 | 0.4922 | -835.0 | -620.3 | |
| 0.00 | 0.73 | 0.00 | 0.42 | 14.17 | 264.69 | -28.47 | 66.74 | 0.5050 | -706.0 | -574.2 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 12.28 | 264.82 | -28.34 | 70.28 | 0.4946 | -711.0 | -570.1 | |
| 0.00 | 0.82 | 0.00 | 0.49 | 19.13 | 263.20 | -29.95 | 59.01 | 0.5523 | -688.0 | -553.6 | |
| 0.00 | 3.09 | 0.00 | 1.77 | 12.26 | 264.00 | -29.15 | 70.75 | 0.5062 | -713.0 | -592.2 | |
| 0.00 | 0.54 | 0.00 | 0.32 | 13.12 | 263.43 | -29.73 | 69.44 | 0.5178 | -528.0 | -569.8 | |
| 0.00 | 0.82 | 0.00 | 0.49 | 17.48 | 261.69 | -31.46 | 62.77 | 0.5620 | -705.0 | -604.4 | |
| 2.27 | 265.22 | 1.35 | 157.77 | 16.41 | 261.85 | -31.30 | 64.46 | 0.5544 | -805.3 | -318.8 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 17.60 | 261.59 | -31.56 | 62.62 | 0.5639 | -546.0 | -428.5 | |
| 0.27 | -9.00 | 0.16 | -9.00 | 14.85 | 261.93 | -31.22 | 67.11 | 0.5459 | -1032.7 | 999999 | |
| 2.72 | -9.00 | 1.61 | -9.00 | 15.01 | 261.87 | -31.28 | 66.88 | 0.5475 | -1155.4 | 999999 | |
| 1.91 | -9.00 | 1.14 | -9.00 | 16.66 | 261.58 | -31.57 | 64.21 | 0.5592 | -255.8 | 999999 | |
| 46.14 | -9.00 | 27.41 | -9.00 | 15.85 | 261.69 | -31.46 | 65.53 | 0.5538 | -1249.5 | 999999 | |
| 0.27 | -9.00 | 0.16 | -9.00 | 14.78 | 261.79 | -31.36 | 67.30 | 0.5475 | -780.0 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.44 | 17.22 | 261.37 | -31.79 | 63.40 | 0.5648 | -488.0 | -391.6 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 12.43 | 262.10 | -31.05 | 71.35 | 0.5337 | -796.0 | -524.3 | |
| 1.63 | -9.00 | 0.97 | -9.00 | 15.03 | 261.68 | -31.47 | 66.94 | 0.5501 | -907.2 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.43 | 11.97 | 262.12 | -31.03 | 72.19 | 0.5317 | -799.0 | -586.1 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 17.09 | 261.32 | -31.84 | 63.64 | 0.5648 | -612.0 | -504.2 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 10.58 | 262.22 | -30.94 | 74.72 | 0.5259 | -719.0 | -630.5 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 12.27 | 261.76 | -31.40 | 71.80 | 0.5379 | -786.0 | -646.3 | |
| 0.00 | 4.00 | 0.00 | 2.36 | 12.53 | 261.10 | -32.06 | 71.62 | 0.5481 | -928.0 | -646.3 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 12.65 | 260.97 | -32.18 | 71.46 | 0.5503 | -536.0 | -521.1 | |
| 0.00 | 0.82 | 0.00 | 0.49 | 16.44 | 260.35 | -32.81 | 65.28 | 0.5742 | 523.0 | 402.9 | |
| 0.00 | 2.63 | 0.00 | 1.55 | 10.30 | 260.97 | -32.18 | 75.67 | 0.5429 | -594.0 | -461.6 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 14.37 | 260.41 | -32.74 | 68.72 | 0.5644 | -719.0 | -672.0 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 14.49 | 260.28 | -32.88 | 68.57 | 0.5667 | -671.0 | -565.2 | |
| 0.00 | 2.45 | 0.00 | 1.49 | 16.45 | 259.85 | -33.30 | 65.52 | 0.5808 | 846.0 | 697.1 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 14.37 | 260.11 | -33.04 | 68.87 | 0.5684 | -598.0 | -500.7 | |
| 0.00 | 1.54 | 0.00 | 0.94 | 15.48 | 259.58 | -33.58 | 67.27 | 0.5800 | 718.0 | 613.1 | |
| 0.00 | 1.54 | 0.00 | 0.93 | 14.48 | 259.68 | -33.48 | 68.89 | 0.5747 | 291.0 | 222.2 | |
| 2.36 | 5.09 | 1.45 | 3.12 | 16.72 | 259.18 | -33.97 | 65.44 | 0.5905 | 850.5 | 681.1 | |
| 0.00 | 0.64 | 0.00 | 0.38 | 13.29 | 259.49 | -33.66 | 70.97 | 0.5727 | -601.0 | -485.6 | |
| 0.00 | 2.27 | 0.00 | 1.37 | 13.75 | 259.31 | -33.85 | 70.27 | 0.5769 | 906.0 | 679.7 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 14.86 | 259.00 | -34.15 | 68.55 | 0.5851 | 671.0 | 504.8 | |
| 0.00 | 2.18 | 0.00 | 1.34 | 16.29 | 258.61 | -34.54 | 66.41 | 0.5960 | 617.0 | 550.3 | |
| 3.45 | 7.27 | 2.12 | 4.45 | 15.58 | 258.72 | -34.44 | 67.52 | 0.5917 | 902.7 | 598.3 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 14.98 | 258.75 | -34.40 | 68.47 | 0.5889 | 849.0 | 628.9 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 15.26 | 258.66 | -34.49 | 68.06 | 0.5912 | 770.0 | 722.4 | |
| 0.00 | 1.63 | 0.00 | 1.01 | 16.13 | 258.38 | -34.78 | 66.78 | 0.5984 | 727.0 | 473.6 | |
| 0.82 | 2.00 | 0.51 | 1.23 | 15.94 | 258.22 | -34.93 | 67.17 | 0.5996 | 890.2 | 755.7 | |
| 0.00 | 3.09 | 0.00 | 1.91 | 15.69 | 258.27 | -34.88 | 67.54 | 0.5980 | 914.0 | 846.7 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 15.41 | 258.29 | -34.87 | 67.99 | 0.5966 | 873.0 | 667.3 | |
| 0.73 | 11.63 | 0.45 | 7.24 | 16.12 | 257.91 | -35.24 | 67.02 | 0.6043 | 857.9 | 556.8 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 15.68 | 258.00 | -35.15 | 67.68 | 0.6014 | 843.0 | 723.9 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 15.87 | 257.89 | -35.27 | 67.44 | 0.6036 | 670.0 | 570.1 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 15.24 | 257.97 | -35.18 | 68.40 | 0.6001 | 717.0 | 602.8 | |
| 1.63 | -45.00 | 1.02 | -45.00 | 16.27 | 257.73 | -35.43 | 66.87 | 0.6073 | 754.8 | 999999 | |
| 17.17 | 34.79 | 10.53 | 21.37 | 13.53 | 258.12 | -35.03 | 71.12 | 0.5920 | -949.8 | -281.6 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 16.07 | 257.30 | -35.85 | 67.38 | 0.6120 | 789.0 | 697.2 | |
| 2.63 | 27.79 | 1.64 | 17.43 | 15.66 | 257.34 | -35.81 | 68.00 | 0.6098 | 993.8 | 621.5 | |
| 0.00 | 1.45 | 0.00 | 0.91 | 15.91 | 257.29 | -35.86 | 67.63 | 0.6114 | 880.0 | 774.4 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 16.16 | 257.12 | -36.03 | 67.32 | 0.6146 | 638.0 | 591.8 | |
| 0.91 | 2.27 | 0.57 | 1.43 | 16.50 | 256.97 | -36.18 | 66.85 | 0.6178 | 700.9 | 582.8 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 15.84 | 257.03 | -36.12 | 67.86 | 0.6145 | 864.0 | 786.3 | |
| 0.91 | -52.00 | 0.57 | -52.00 | 15.68 | 256.83 | -36.32 | 68.20 | 0.6165 | 787.6 | 999999 | |
| 3.18 | -52.00 | 2.00 | -52.00 | 15.80 | 256.65 | -36.51 | 68.09 | 0.6193 | 847.2 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 15.35 | 256.38 | -36.77 | 68.89 | 0.6210 | 678.0 | 549.7 | |
| 0.00 | 0.27 | 0.00 | 0.17 | 15.51 | 256.31 | -36.84 | 68.68 | 0.6225 | 499.0 | 460.3 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 15.12 | 256.11 | -37.04 | 69.35 | 0.6237 | 765.0 | 575.9 | |
| 0.64 | 2.09 | 0.40 | 1.32 | 14.62 | 255.94 | -37.22 | 70.21 | 0.6242 | 904.3 | 759.6 | |
| 0.00 | 1.82 | 0.00 | 1.15 | 12.64 | 255.47 | -37.68 | 73.47 | 0.6244 | -792.0 | -544.9 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 11.02 | 254.02 | -39.13 | 76.39 | 0.6396 | 509.0 | 479.8 | |
| 0.00 | 0.64 | 0.00 | 0.42 | 14.74 | 252.79 | -40.36 | 71.10 | 0.6643 | 587.0 | 548.6 | |
| 0.00 | 0.54 | 0.00 | 0.36 | 12.13 | 252.04 | -41.12 | 75.17 | 0.6673 | 404.0 | 509.7 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 9.15 | 252.44 | -40.72 | 79.57 | 0.6571 | 694.0 | 572.1 | |
| 0.00 | 1.00 | 0.00 | 0.67 | 13.97 | 251.20 | -41.95 | 72.69 | 0.6818 | 526.0 | 421.3 | |
| 0.00 | 2.18 | 0.00 | 1.45 | 11.37 | 251.55 | -41.60 | 76.40 | 0.6720 | 875.0 | 688.8 | |
| 0.00 | 1.09 | 0.00 | 0.73 | 11.15 | 251.46 | -41.69 | 76.74 | 0.6727 | 687.0 | 566.4 | |
| 0.00 | 1.36 | 0.00 | 0.91 | 11.30 | 251.23 | -41.92 | 76.57 | 0.6759 | 655.0 | 540.8 | |
| 0.00 | 0.64 | 0.00 | 0.42 | 10.65 | 251.34 | -41.81 | 77.50 | 0.6734 | 765.0 | 638.9 | |
| 0.00 | 1.91 | 0.00 | 1.28 | 10.37 | 251.26 | -41.89 | 77.93 | 0.6739 | 696.0 | 523.7 | |
| 0.00 | 0.54 | 0.00 | 0.36 | 9.33 | 251.34 | -41.81 | 79.46 | 0.6714 | 376.0 | 510.5 | |
| 0.00 | 0.54 | 0.00 | 0.37 | 10.58 | 250.98 | -42.18 | 77.68 | 0.6778 | 474.0 | 398.7 | |
| 0.00 | 1.54 | 0.00 | 1.05 | 10.75 | 250.40 | -42.75 | 77.54 | 0.6853 | 348.0 | 386.8 | |
| 0.00 | 0.82 | 0.00 | 0.58 | 10.78 | 247.93 | -45.23 | 77.89 | 0.7155 | 517.0 | 390.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
