SDO HMI 2014-07-03 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.94 | 210.09 | 52.08 | 175.76 | -8.05 | 240.58 | -52.57 | 102.35 | 0.8068 | 335.2 | 124.3 | |
|
previous
or next observation for the same group /

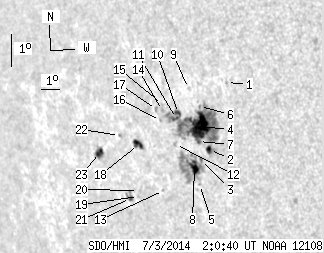

back to the solar disc SDO HMI 2014-07-03 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.79 | -6.15 | 242.89 | -50.26 | 100.46 | 0.7797 | 536.0 | 519.0 | |
| 3.09 | 6.90 | 2.52 | 5.61 | -8.27 | 241.72 | -51.43 | 102.87 | 0.7959 | 803.7 | 501.5 | |
| 0.36 | 50.14 | 0.30 | 41.92 | -8.60 | 241.21 | -51.94 | 103.17 | 0.8018 | 779.0 | 53.4 | |
| 33.97 | 115.54 | 27.81 | 94.88 | -7.57 | 241.35 | -51.80 | 101.93 | 0.7984 | 772.4 | 275.7 | |
| 0.00 | 1.09 | 0.00 | 0.91 | -9.39 | 241.00 | -52.16 | 104.08 | 0.8054 | 557.0 | 430.6 | |
| 0.00 | 1.18 | 0.00 | 0.96 | -6.95 | 241.45 | -51.70 | 101.17 | 0.7963 | 634.0 | 549.2 | |
| 0.91 | -4.00 | 0.75 | -4.00 | -8.04 | 241.22 | -51.94 | 102.48 | 0.8007 | 580.9 | 999999 | |
| 8.17 | -3.00 | 6.80 | -3.00 | -8.87 | 240.85 | -52.30 | 103.41 | 0.8059 | 675.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.04 | -6.41 | 240.98 | -52.17 | 100.42 | 0.8002 | 343.0 | 284.2 | |
| 2.27 | -4.00 | 1.90 | -4.00 | -7.21 | 240.35 | -52.80 | 101.28 | 0.8080 | 475.1 | 999999 | |
| 0.91 | -4.00 | 0.76 | -4.00 | -7.37 | 240.22 | -52.93 | 101.45 | 0.8096 | 203.3 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.77 | -8.19 | 240.02 | -53.14 | 102.40 | 0.8130 | -249.0 | -201.2 | |
| 0.00 | 0.45 | 0.00 | 0.40 | -9.66 | 239.07 | -54.08 | 103.97 | 0.8249 | 310.0 | 338.6 | |
| 0.00 | 1.91 | 0.00 | 1.63 | -7.16 | 239.53 | -53.62 | 101.05 | 0.8161 | -321.0 | -281.3 | |
| 0.00 | 1.00 | 0.00 | 0.85 | -6.97 | 239.57 | -53.59 | 100.83 | 0.8155 | -169.0 | -104.5 | |
| 0.00 | 1.09 | 0.00 | 0.93 | -7.47 | 239.37 | -53.78 | 101.40 | 0.8182 | -337.0 | -339.9 | |
| 0.00 | 2.27 | 0.00 | 1.95 | -7.14 | 239.22 | -53.93 | 100.97 | 0.8191 | -632.0 | -545.3 | |
| 5.45 | 7.90 | 4.85 | 7.03 | -8.27 | 238.04 | -55.11 | 102.11 | 0.8323 | -685.6 | -444.4 | |
| 0.00 | 0.91 | 0.00 | 0.82 | -9.91 | 237.66 | -55.50 | 103.96 | 0.8386 | -692.0 | -629.4 | |
| 0.00 | 0.54 | 0.00 | 0.49 | -9.72 | 237.71 | -55.45 | 103.75 | 0.8378 | -508.0 | -495.3 | |
| 1.54 | 6.18 | 1.41 | 5.65 | -9.99 | 237.19 | -55.96 | 103.96 | 0.8430 | -596.0 | -444.8 | |
| 0.00 | 0.73 | 0.00 | 0.66 | -8.04 | 237.05 | -56.10 | 101.64 | 0.8412 | -573.0 | -527.8 | |
| 5.27 | 7.90 | 4.98 | 7.47 | -8.62 | 235.78 | -57.37 | 102.09 | 0.8536 | -641.1 | -440.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
