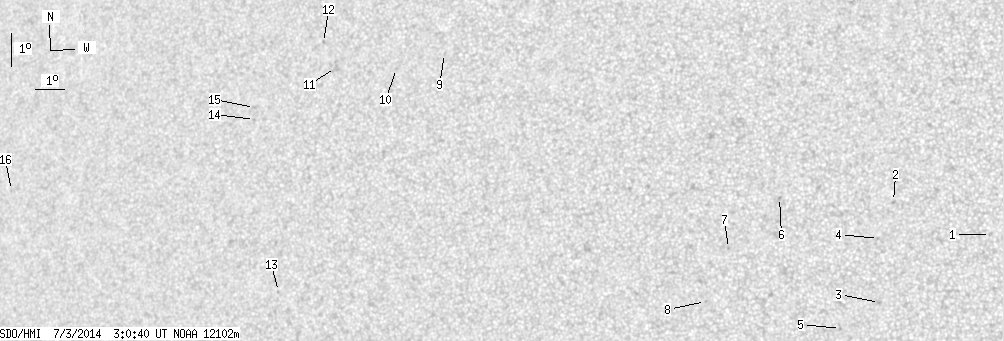

SDO HMI 2014-07-03 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.53 | 0.00 | 11.93 | 5.79 | 267.99 | -24.62 | 84.12 | 0.4151 | -36.3 | 83.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 0.87 | 3.76 | 282.91 | -9.69 | 85.72 | 0.1693 | -646.0 | -493.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 4.74 | 279.87 | -12.73 | 82.17 | 0.2227 | -753.0 | -639.8 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 1.66 | 279.47 | -13.13 | 95.91 | 0.2294 | -842.0 | -617.6 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 3.61 | 279.42 | -13.18 | 87.35 | 0.2289 | -730.0 | -461.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 0.85 | 278.25 | -14.35 | 98.56 | 0.2518 | -885.0 | -687.7 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 4.82 | 276.27 | -16.33 | 83.41 | 0.2834 | -761.0 | -613.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 3.24 | 274.67 | -17.93 | 89.01 | 0.3088 | -877.0 | -708.8 | |
| 0.00 | 0.64 | 0.00 | 0.33 | 1.62 | 273.95 | -18.65 | 94.09 | 0.3219 | -727.0 | -563.1 | |
| 0.00 | 0.45 | 0.00 | 0.26 | 9.01 | 264.94 | -27.66 | 76.60 | 0.4732 | 722.0 | 601.6 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 8.51 | 263.30 | -29.31 | 78.18 | 0.4965 | 782.0 | 610.9 | |
| 0.00 | 5.54 | 0.00 | 3.23 | 8.48 | 261.12 | -31.49 | 78.84 | 0.5286 | 714.0 | 532.3 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 9.24 | 260.61 | -31.99 | 77.58 | 0.5376 | 776.0 | 670.6 | |
| 0.00 | 0.64 | 0.00 | 0.38 | 1.59 | 259.42 | -33.18 | 91.81 | 0.5495 | 627.0 | 521.6 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 6.81 | 258.29 | -34.32 | 82.44 | 0.5668 | 609.0 | 509.5 | |
| 0.00 | 1.54 | 0.00 | 0.93 | 7.18 | 258.26 | -34.35 | 81.80 | 0.5677 | 872.0 | 677.4 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 4.33 | 248.86 | -43.74 | 86.96 | 0.6927 | 538.0 | 549.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
