SDO HMI 2014-07-03 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.66 | 465.06 | 52.70 | 279.55 | 15.21 | 260.07 | -32.54 | 67.05 | 0.5651 | -288.4 | -136.3 | |
|
previous
or next observation for the same group /

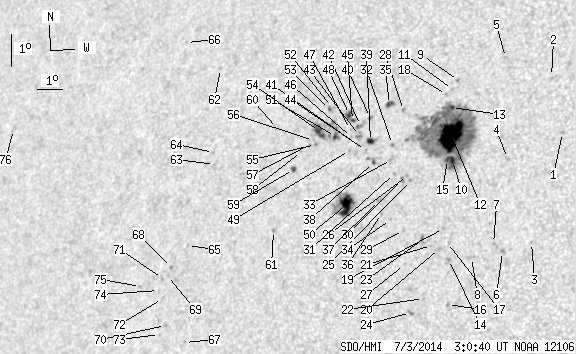

back to the solar disc SDO HMI 2014-07-03 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.62 | 15.99 | 265.70 | -26.90 | 62.24 | 0.4935 | -767.0 | -643.2 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 17.74 | 265.03 | -27.57 | 59.59 | 0.5132 | -474.0 | -597.3 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 12.55 | 265.05 | -27.55 | 69.32 | 0.4846 | -791.0 | -688.1 | |
| 0.00 | 2.09 | 0.00 | 1.20 | 15.14 | 263.86 | -28.75 | 65.14 | 0.5137 | -692.0 | -563.4 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 18.30 | 263.26 | -29.35 | 59.98 | 0.5395 | -658.0 | -543.2 | |
| 0.00 | 2.00 | 0.00 | 1.14 | 12.25 | 264.06 | -28.55 | 70.47 | 0.4975 | -854.0 | -673.6 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 12.49 | 263.71 | -28.89 | 70.19 | 0.5034 | -717.0 | -632.0 | |
| 0.00 | 3.82 | 0.00 | 2.20 | 12.04 | 262.98 | -29.63 | 71.42 | 0.5121 | -363.0 | -306.1 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 17.53 | 261.66 | -30.95 | 62.37 | 0.5556 | -578.0 | -539.2 | |
| 3.18 | 274.52 | 1.87 | 162.37 | 15.02 | 261.87 | -30.73 | 66.55 | 0.5401 | -1163.5 | -337.0 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 17.24 | 261.49 | -31.12 | 62.96 | 0.5562 | -593.0 | -494.2 | |
| 42.51 | -10.00 | 25.11 | -10.00 | 15.80 | 261.71 | -30.90 | 65.28 | 0.5460 | -1277.7 | 999999 | |
| 2.09 | -10.00 | 1.24 | -10.00 | 16.68 | 261.55 | -31.05 | 63.87 | 0.5524 | -233.1 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.05 | 11.96 | 262.16 | -30.45 | 71.96 | 0.5234 | -814.0 | -539.6 | |
| 0.27 | -10.00 | 0.16 | -10.00 | 15.05 | 261.68 | -30.92 | 66.61 | 0.5428 | -963.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 10.57 | 262.28 | -30.32 | 74.51 | 0.5170 | -796.0 | -616.6 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 12.48 | 262.05 | -30.55 | 71.04 | 0.5268 | -546.0 | -564.9 | |
| 0.00 | 1.91 | 0.00 | 1.14 | 17.08 | 261.29 | -31.31 | 63.35 | 0.5579 | -594.0 | -397.0 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 12.91 | 261.85 | -30.75 | 70.35 | 0.5313 | -850.0 | -706.2 | |
| 0.00 | 1.64 | 0.00 | 0.95 | 12.29 | 261.79 | -30.82 | 71.52 | 0.5298 | -765.0 | -683.0 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 12.37 | 261.49 | -31.12 | 71.50 | 0.5344 | -634.0 | -557.5 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 10.73 | 261.39 | -31.21 | 74.55 | 0.5302 | -648.0 | -467.6 | |
| 0.00 | 2.91 | 0.00 | 1.71 | 12.55 | 261.13 | -31.47 | 71.34 | 0.5400 | -699.0 | -678.6 | |
| 0.00 | 2.54 | 0.00 | 1.49 | 10.29 | 260.97 | -31.63 | 75.52 | 0.5350 | -637.0 | -491.3 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 14.36 | 260.42 | -32.18 | 68.47 | 0.5568 | -684.0 | -568.8 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 14.51 | 260.28 | -32.32 | 68.28 | 0.5592 | -655.0 | -490.9 | |
| 0.00 | 0.64 | 0.00 | 0.38 | 11.76 | 260.58 | -32.03 | 72.99 | 0.5450 | -481.0 | -454.1 | |
| 0.00 | 1.64 | 0.00 | 0.99 | 16.54 | 259.78 | -32.83 | 65.14 | 0.5749 | 861.0 | 751.9 | |
| 0.00 | 1.91 | 0.00 | 1.13 | 12.81 | 260.40 | -32.21 | 71.20 | 0.5511 | -675.0 | -562.4 | |
| 0.00 | 2.45 | 0.00 | 1.47 | 14.39 | 260.12 | -32.48 | 68.58 | 0.5609 | -789.0 | -656.6 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 14.56 | 259.79 | -32.81 | 68.44 | 0.5661 | -412.0 | -187.8 | |
| 0.00 | 1.54 | 0.00 | 0.93 | 15.46 | 259.56 | -33.04 | 67.03 | 0.5729 | 808.0 | 589.6 | |
| 0.00 | 3.27 | 0.00 | 1.97 | 15.00 | 259.60 | -33.00 | 67.80 | 0.5704 | -456.0 | -146.3 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 13.14 | 259.87 | -32.74 | 70.86 | 0.5596 | -589.0 | -445.0 | |
| 2.45 | 4.45 | 1.49 | 2.71 | 16.71 | 259.21 | -33.39 | 65.16 | 0.5830 | 859.4 | 657.2 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 13.31 | 259.50 | -33.10 | 70.71 | 0.5652 | -618.0 | -453.9 | |
| 0.00 | 2.36 | 0.00 | 1.42 | 13.71 | 259.37 | -33.24 | 70.09 | 0.5685 | 834.0 | 617.7 | |
| 0.73 | 4.91 | 0.44 | 2.98 | 14.88 | 258.94 | -33.66 | 68.30 | 0.5787 | 914.1 | 732.3 | |
| 3.36 | 6.72 | 2.05 | 4.09 | 15.53 | 258.71 | -33.89 | 67.34 | 0.5844 | 888.2 | 620.2 | |
| 0.00 | 2.00 | 0.00 | 1.22 | 16.28 | 258.57 | -34.04 | 66.19 | 0.5894 | 822.0 | 650.0 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 15.25 | 258.57 | -34.03 | 67.87 | 0.5850 | 772.0 | 688.2 | |
| 0.00 | 4.36 | 0.00 | 2.68 | 16.02 | 258.23 | -34.37 | 66.77 | 0.5926 | 899.0 | 714.9 | |
| 0.00 | 4.00 | 0.00 | 2.45 | 15.71 | 258.26 | -34.35 | 67.27 | 0.5911 | 990.0 | 815.5 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 15.40 | 258.28 | -34.33 | 67.77 | 0.5895 | 877.0 | 720.2 | |
| 1.00 | 7.54 | 0.62 | 4.66 | 16.17 | 257.90 | -34.71 | 66.70 | 0.5976 | 841.6 | 558.6 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 15.64 | 257.96 | -34.64 | 67.52 | 0.5946 | 606.0 | 560.4 | |
| 0.00 | 0.64 | 0.00 | 0.39 | 15.89 | 257.87 | -34.73 | 67.16 | 0.5967 | 780.0 | 666.4 | |
| 2.82 | -45.00 | 1.74 | -45.00 | 16.35 | 257.74 | -34.86 | 66.48 | 0.6004 | 662.0 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 15.23 | 257.96 | -34.64 | 68.18 | 0.5930 | 709.0 | 603.4 | |
| 18.71 | 39.70 | 11.40 | 24.22 | 13.55 | 258.14 | -34.46 | 70.87 | 0.5844 | -939.2 | -258.0 | |
| 1.64 | 29.34 | 1.01 | 18.28 | 15.65 | 257.34 | -35.26 | 67.79 | 0.6027 | 959.9 | 730.9 | |
| 0.00 | 1.36 | 0.00 | 0.85 | 16.58 | 256.99 | -35.61 | 66.47 | 0.6109 | 409.0 | 459.9 | |
| 0.64 | 1.64 | 0.40 | 1.02 | 16.49 | 256.93 | -35.67 | 66.65 | 0.6112 | 703.0 | 604.4 | |
| 6.81 | -51.00 | 4.26 | -51.00 | 15.79 | 256.69 | -35.92 | 67.86 | 0.6116 | 802.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 15.38 | 256.61 | -35.99 | 68.53 | 0.6110 | 808.0 | 717.9 | |
| 0.00 | 1.64 | 0.00 | 1.02 | 15.50 | 256.51 | -36.09 | 68.39 | 0.6128 | 557.0 | 472.2 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 15.37 | 256.38 | -36.22 | 68.64 | 0.6140 | 610.0 | 479.5 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 15.14 | 256.11 | -36.49 | 69.11 | 0.6167 | 719.0 | 561.4 | |
| 1.45 | 2.73 | 0.91 | 1.71 | 14.58 | 255.91 | -36.70 | 70.09 | 0.6173 | 868.6 | 705.6 | |
| 0.00 | 0.82 | 0.00 | 0.52 | 15.83 | 255.01 | -37.59 | 68.48 | 0.6331 | -712.0 | -583.7 | |
| 0.00 | 1.54 | 0.00 | 0.97 | 12.67 | 255.47 | -37.14 | 73.27 | 0.6173 | -704.0 | -587.0 | |
| 0.00 | 1.27 | 0.00 | 0.85 | 17.63 | 252.24 | -40.37 | 66.89 | 0.6734 | 73.0 | 144.0 | |
| 0.00 | 0.73 | 0.00 | 0.48 | 14.63 | 252.72 | -39.89 | 71.12 | 0.6580 | 646.0 | 484.5 | |
| 0.00 | 1.27 | 0.00 | 0.84 | 15.00 | 252.59 | -40.01 | 70.60 | 0.6606 | 527.0 | 395.1 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 12.09 | 252.11 | -40.49 | 75.08 | 0.6593 | 596.0 | 462.4 | |
| 0.00 | 0.82 | 0.00 | 0.56 | 18.40 | 250.56 | -42.04 | 66.43 | 0.6956 | 530.0 | 450.1 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 9.11 | 252.46 | -40.14 | 79.54 | 0.6496 | 593.0 | 523.8 | |
| 0.00 | 1.27 | 0.00 | 0.84 | 11.40 | 251.58 | -41.03 | 76.25 | 0.6647 | 861.0 | 747.4 | |
| 0.00 | 0.73 | 0.00 | 0.48 | 11.14 | 251.46 | -41.15 | 76.65 | 0.6658 | 751.0 | 678.0 | |
| 0.00 | 1.45 | 0.00 | 0.96 | 9.61 | 251.62 | -40.99 | 78.93 | 0.6612 | 714.0 | 536.5 | |
| 0.00 | 1.64 | 0.00 | 1.09 | 11.04 | 251.27 | -41.34 | 76.84 | 0.6680 | 664.0 | 542.9 | |
| 0.00 | 1.45 | 0.00 | 0.96 | 10.43 | 251.37 | -41.24 | 77.73 | 0.6657 | 693.0 | 516.2 | |
| 0.00 | 0.91 | 0.00 | 0.60 | 9.32 | 251.41 | -41.19 | 79.39 | 0.6635 | 665.0 | 567.6 | |
| 0.00 | 0.91 | 0.00 | 0.60 | 10.67 | 251.16 | -41.44 | 77.41 | 0.6687 | 468.0 | 427.4 | |
| 0.00 | 1.00 | 0.00 | 0.67 | 10.77 | 250.39 | -42.21 | 77.41 | 0.6785 | 383.0 | 402.9 | |
| 0.00 | 3.63 | 0.00 | 2.79 | 15.40 | 243.58 | -49.02 | 72.38 | 0.7659 | 193.0 | 165.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
