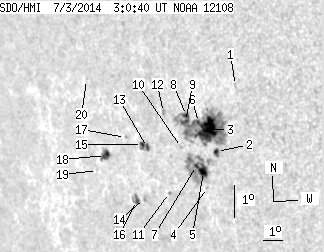

SDO HMI 2014-07-03 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.86 | 211.83 | 48.11 | 175.19 | -8.06 | 240.53 | -52.07 | 102.47 | 0.8018 | 319.2 | 135.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 1.34 | -6.15 | 242.96 | -49.64 | 100.59 | 0.7730 | 460.0 | 501.0 | |
| 2.18 | 4.45 | 1.75 | 3.58 | -8.25 | 241.72 | -50.88 | 102.97 | 0.7902 | 876.5 | 695.2 | |
| 29.25 | 121.82 | 23.62 | 98.77 | -7.58 | 241.44 | -51.16 | 102.07 | 0.7918 | 820.0 | 291.6 | |
| 0.00 | 1.36 | 0.00 | 1.12 | -9.39 | 241.05 | -51.56 | 104.24 | 0.7994 | 557.0 | 429.3 | |
| 6.54 | 50.05 | 5.37 | 41.31 | -8.90 | 240.95 | -51.65 | 103.60 | 0.7994 | 743.6 | 66.8 | |
| 1.45 | -3.00 | 1.18 | -3.00 | -7.38 | 240.98 | -51.62 | 101.73 | 0.7962 | 346.2 | 999999 | |
| 1.45 | -5.00 | 1.20 | -5.00 | -8.73 | 240.63 | -51.97 | 103.32 | 0.8023 | 322.6 | 999999 | |
| 2.27 | -3.00 | 1.87 | -3.00 | -7.19 | 240.41 | -52.19 | 101.37 | 0.8018 | 472.1 | 999999 | |
| 3.00 | -3.00 | 2.48 | -3.00 | -7.37 | 240.33 | -52.27 | 101.59 | 0.8029 | 137.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.22 | -8.20 | 239.98 | -52.63 | 102.52 | 0.8079 | -318.0 | -270.7 | |
| 0.00 | 1.27 | 0.00 | 1.09 | -9.64 | 239.05 | -53.55 | 104.07 | 0.8197 | 410.0 | 264.6 | |
| 0.00 | 2.27 | 0.00 | 1.92 | -7.14 | 239.24 | -53.36 | 101.09 | 0.8135 | -707.0 | -616.2 | |
| 1.73 | 8.08 | 1.51 | 7.09 | -8.27 | 238.19 | -54.41 | 102.25 | 0.8257 | -740.6 | -543.0 | |
| 0.00 | 2.00 | 0.00 | 1.78 | -9.88 | 237.66 | -54.95 | 104.05 | 0.8335 | -621.0 | -587.8 | |
| 2.09 | -13.00 | 1.84 | -13.00 | -8.19 | 237.94 | -54.66 | 102.10 | 0.8279 | -700.3 | 999999 | |
| 2.27 | 5.81 | 2.05 | 5.25 | -9.97 | 237.20 | -55.40 | 104.05 | 0.8379 | -581.8 | -427.4 | |
| 0.00 | 1.09 | 0.00 | 0.98 | -8.01 | 237.05 | -55.55 | 101.72 | 0.8360 | -564.0 | -448.2 | |
| 5.63 | 8.81 | 5.24 | 8.20 | -8.63 | 235.80 | -56.80 | 102.21 | 0.8485 | -687.7 | -425.8 | |
| 0.00 | 0.82 | 0.00 | 0.77 | -9.12 | 235.22 | -57.38 | 102.67 | 0.8544 | -141.0 | -112.2 | |
| 0.00 | 0.82 | 0.00 | 0.77 | -6.30 | 235.20 | -57.40 | 99.39 | 0.8508 | -561.0 | -488.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
