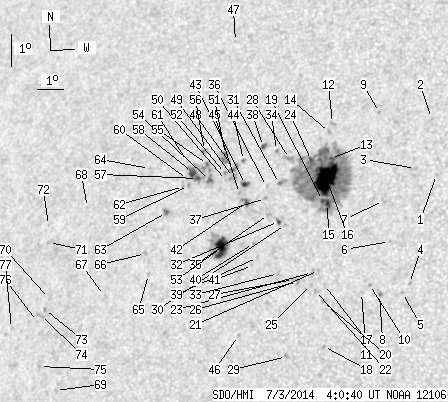

SDO HMI 2014-07-03 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.68 | 471.79 | 54.06 | 281.31 | 15.23 | 260.20 | -31.86 | 66.70 | 0.5563 | -365.4 | -128.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.51 | 16.01 | 265.64 | -26.41 | 61.83 | 0.4870 | -748.0 | -621.6 | |
| 0.00 | 0.64 | 0.00 | 0.36 | 17.76 | 265.20 | -26.86 | 58.97 | 0.5040 | -678.0 | -549.3 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 16.18 | 264.87 | -27.18 | 62.11 | 0.4984 | -760.0 | -552.1 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 12.61 | 265.12 | -26.93 | 68.85 | 0.4758 | -860.0 | -674.1 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 12.32 | 264.91 | -27.14 | 69.55 | 0.4776 | -751.0 | -587.1 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 13.89 | 264.26 | -27.79 | 66.87 | 0.4942 | -708.0 | -593.9 | |
| 0.00 | 2.27 | 0.00 | 1.30 | 15.16 | 263.87 | -28.18 | 64.73 | 0.5060 | -621.0 | -527.2 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 12.24 | 264.11 | -27.95 | 70.17 | 0.4888 | -833.0 | -733.3 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 17.91 | 263.29 | -28.77 | 60.22 | 0.5296 | -703.0 | -608.8 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 12.54 | 263.72 | -28.34 | 69.80 | 0.4956 | -667.0 | -579.8 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 12.29 | 263.46 | -28.59 | 70.43 | 0.4982 | -598.0 | -478.0 | |
| 0.00 | 2.54 | 0.00 | 1.50 | 17.52 | 261.63 | -30.43 | 62.05 | 0.5488 | -617.0 | -557.1 | |
| 1.18 | 270.27 | 0.69 | 158.86 | 16.42 | 261.75 | -30.31 | 63.86 | 0.5413 | -673.8 | -355.8 | |
| 0.00 | 1.91 | 0.00 | 1.13 | 17.23 | 261.57 | -30.49 | 62.58 | 0.5480 | -618.0 | -517.2 | |
| 5.00 | -13.00 | 2.92 | -13.00 | 15.02 | 261.87 | -30.19 | 66.26 | 0.5326 | -1099.9 | 999999 | |
| 42.97 | -13.00 | 25.23 | -13.00 | 15.79 | 261.71 | -30.35 | 64.98 | 0.5386 | -1281.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 12.50 | 262.11 | -29.94 | 70.71 | 0.5183 | -685.0 | -575.0 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 10.59 | 262.30 | -29.76 | 74.26 | 0.5089 | -750.0 | -566.4 | |
| 1.45 | -13.00 | 0.85 | -13.00 | 15.10 | 261.67 | -30.38 | 66.21 | 0.5357 | -936.1 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.00 | 11.98 | 262.11 | -29.95 | 71.70 | 0.5164 | -795.0 | -636.7 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 12.93 | 261.84 | -30.21 | 70.06 | 0.5238 | -926.0 | -759.7 | |
| 0.00 | 2.18 | 0.00 | 1.26 | 12.31 | 261.81 | -30.24 | 71.22 | 0.5218 | -763.0 | -659.2 | |
| 0.00 | 2.73 | 0.00 | 1.59 | 12.86 | 261.63 | -30.42 | 70.28 | 0.5265 | -762.0 | -579.4 | |
| 2.45 | -13.00 | 1.45 | -13.00 | 16.34 | 261.06 | -30.99 | 64.42 | 0.5500 | -31.5 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 12.49 | 261.61 | -30.45 | 70.98 | 0.5254 | -724.0 | -614.3 | |
| 0.00 | 2.36 | 0.00 | 1.38 | 12.57 | 261.12 | -30.93 | 71.06 | 0.5324 | -923.0 | -710.5 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 12.63 | 260.97 | -31.08 | 71.03 | 0.5348 | -636.0 | -535.9 | |
| 0.00 | 5.18 | 0.00 | 3.09 | 16.38 | 260.23 | -31.82 | 64.84 | 0.5610 | 293.0 | 344.3 | |
| 0.00 | 2.27 | 0.00 | 1.32 | 10.25 | 261.00 | -31.05 | 75.40 | 0.5266 | -657.0 | -534.1 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 14.32 | 260.43 | -31.62 | 68.27 | 0.5490 | -776.0 | -609.5 | |
| 0.55 | 4.09 | 0.33 | 2.44 | 15.59 | 260.00 | -32.06 | 66.31 | 0.5604 | 823.0 | 389.4 | |
| 1.09 | 3.45 | 0.65 | 2.05 | 14.41 | 260.16 | -31.90 | 68.26 | 0.5531 | -718.8 | -558.0 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 12.80 | 260.40 | -31.66 | 70.98 | 0.5434 | -653.0 | -513.2 | |
| 0.00 | 1.64 | 0.00 | 0.98 | 16.62 | 259.70 | -32.36 | 64.75 | 0.5691 | 821.0 | 724.3 | |
| 0.00 | 2.63 | 0.00 | 1.57 | 14.62 | 259.75 | -32.30 | 68.10 | 0.5594 | -37.0 | 3.4 | |
| 0.00 | 0.73 | 0.00 | 0.44 | 15.49 | 259.53 | -32.53 | 66.74 | 0.5661 | 718.0 | 517.8 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 15.11 | 259.56 | -32.50 | 67.36 | 0.5641 | -536.0 | -431.7 | |
| 1.36 | 3.27 | 0.82 | 1.98 | 16.73 | 259.19 | -32.87 | 64.85 | 0.5763 | 857.3 | 716.0 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 13.27 | 259.55 | -32.50 | 70.52 | 0.5568 | -594.0 | -508.3 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 13.70 | 259.34 | -32.72 | 69.88 | 0.5614 | 670.0 | 582.5 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 13.02 | 259.40 | -32.65 | 71.03 | 0.5580 | -494.0 | -411.9 | |
| 1.91 | 7.09 | 1.15 | 4.27 | 14.97 | 258.87 | -33.19 | 67.95 | 0.5727 | 986.3 | 709.9 | |
| 2.82 | 4.54 | 1.71 | 2.75 | 15.53 | 258.73 | -33.33 | 67.08 | 0.5769 | 901.7 | 697.8 | |
| 0.64 | 1.91 | 0.39 | 1.16 | 16.27 | 258.51 | -33.54 | 65.96 | 0.5830 | 726.0 | 597.5 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 15.24 | 258.55 | -33.50 | 67.64 | 0.5780 | 756.0 | 710.5 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 10.85 | 259.18 | -32.88 | 74.94 | 0.5542 | -621.0 | -483.8 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 20.01 | 257.37 | -34.68 | 60.70 | 0.6153 | -465.0 | -317.8 | |
| 0.00 | 4.63 | 0.00 | 2.83 | 16.01 | 258.22 | -33.84 | 66.53 | 0.5856 | 921.0 | 750.6 | |
| 0.00 | 4.54 | 0.00 | 2.77 | 15.73 | 258.23 | -33.82 | 66.99 | 0.5842 | 964.0 | 818.8 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 15.63 | 257.99 | -34.07 | 67.27 | 0.5871 | 656.0 | 546.1 | |
| 0.91 | 9.63 | 0.56 | 5.91 | 16.44 | 257.79 | -34.26 | 66.05 | 0.5930 | 490.0 | 562.6 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 15.85 | 257.91 | -34.15 | 66.96 | 0.5890 | 720.0 | 672.6 | |
| 17.90 | 36.97 | 10.83 | 22.42 | 13.55 | 258.16 | -33.89 | 70.66 | 0.5767 | -956.8 | -276.2 | |
| 1.73 | 34.25 | 1.06 | 21.19 | 15.61 | 257.34 | -34.72 | 67.61 | 0.5955 | 1002.1 | 704.8 | |
| 0.55 | -54.00 | 0.34 | -54.00 | 16.11 | 257.16 | -34.89 | 66.89 | 0.5997 | 876.8 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.47 | 16.54 | 256.96 | -35.10 | 66.30 | 0.6042 | 598.0 | 603.4 | |
| 2.00 | -54.00 | 1.24 | -54.00 | 15.66 | 256.86 | -35.19 | 67.75 | 0.6018 | 818.6 | 999999 | |
| 4.72 | -54.00 | 2.93 | -54.00 | 15.84 | 256.63 | -35.42 | 67.56 | 0.6055 | 814.9 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.02 | 15.43 | 256.56 | -35.50 | 68.25 | 0.6049 | 784.0 | 622.5 | |
| 0.00 | 3.36 | 0.00 | 2.09 | 15.62 | 256.48 | -35.57 | 67.98 | 0.6065 | 456.0 | 398.4 | |
| 0.00 | 0.82 | 0.00 | 0.51 | 16.18 | 256.37 | -35.69 | 67.15 | 0.6102 | 457.0 | 362.7 | |
| 0.00 | 1.18 | 0.00 | 0.73 | 15.40 | 256.37 | -35.69 | 68.39 | 0.6071 | 420.0 | 434.2 | |
| 1.45 | 3.09 | 0.91 | 1.93 | 14.57 | 255.86 | -36.19 | 69.91 | 0.6107 | 890.8 | 653.6 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 15.92 | 254.92 | -37.13 | 68.18 | 0.6276 | -723.0 | -594.2 | |
| 0.00 | 1.36 | 0.00 | 0.85 | 12.63 | 255.51 | -36.55 | 73.15 | 0.6094 | -640.0 | -521.5 | |
| 0.00 | 2.09 | 0.00 | 1.31 | 13.27 | 255.28 | -36.78 | 72.19 | 0.6142 | -672.0 | -502.2 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 11.93 | 253.89 | -38.16 | 74.75 | 0.6289 | 553.0 | 426.5 | |
| 0.00 | 0.82 | 0.00 | 0.53 | 14.63 | 252.70 | -39.36 | 70.96 | 0.6514 | 676.0 | 588.9 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 8.95 | 252.37 | -39.68 | 79.73 | 0.6433 | 696.0 | 490.6 | |
| 0.00 | 1.09 | 0.00 | 0.71 | 11.76 | 251.70 | -40.36 | 75.55 | 0.6569 | 388.0 | 366.8 | |
| 0.00 | 0.91 | 0.00 | 0.60 | 13.49 | 251.33 | -40.73 | 73.07 | 0.6655 | 518.0 | 437.0 | |
| 0.00 | 0.82 | 0.00 | 0.54 | 14.02 | 251.22 | -40.84 | 72.32 | 0.6682 | 493.0 | 401.4 | |
| 0.00 | 1.73 | 0.00 | 1.13 | 11.42 | 251.55 | -40.50 | 76.11 | 0.6580 | 830.0 | 719.5 | |
| 0.00 | 2.82 | 0.00 | 1.85 | 11.23 | 251.42 | -40.63 | 76.42 | 0.6594 | 715.0 | 637.6 | |
| 0.00 | 1.91 | 0.00 | 1.25 | 9.66 | 251.63 | -40.43 | 78.75 | 0.6541 | 677.0 | 517.9 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 11.04 | 251.33 | -40.72 | 76.72 | 0.6602 | 719.0 | 585.8 | |
| 0.00 | 0.64 | 0.00 | 0.42 | 10.79 | 250.30 | -41.76 | 77.30 | 0.6729 | 556.0 | 491.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
