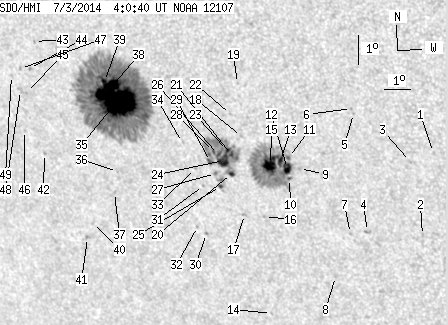

SDO HMI 2014-07-03 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 137.66 | 762.04 | 89.42 | 496.49 | -19.60 | 258.16 | -33.89 | 125.79 | 0.6496 | 577.4 | 189.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.75 | -20.36 | 268.11 | -23.95 | 135.98 | 0.5496 | 650.0 | 459.7 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -23.17 | 267.20 | -24.86 | 138.57 | 0.5862 | 636.0 | 522.1 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -20.68 | 267.23 | -24.82 | 135.42 | 0.5617 | 638.0 | 488.1 | |
| 0.00 | 2.54 | 0.00 | 1.58 | -23.08 | 265.19 | -26.87 | 136.35 | 0.6045 | 578.0 | 606.9 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -19.14 | 265.45 | -26.60 | 131.39 | 0.5661 | 693.0 | 580.8 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -18.97 | 265.41 | -26.65 | 131.12 | 0.5652 | 567.0 | 529.3 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -23.17 | 264.53 | -27.52 | 135.80 | 0.6116 | 562.0 | 523.2 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -24.66 | 263.61 | -28.44 | 136.73 | 0.6337 | 388.0 | 387.2 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -21.02 | 263.10 | -28.96 | 131.67 | 0.6072 | 753.0 | 513.2 | |
| 0.55 | 146.08 | 0.34 | 91.85 | -21.36 | 262.65 | -29.41 | 131.71 | 0.6147 | 596.3 | 200.2 | |
| 0.73 | -10.00 | 0.45 | -10.00 | -20.66 | 262.76 | -29.29 | 130.89 | 0.6077 | 964.8 | 999999 | |
| 7.54 | -10.00 | 4.71 | -10.00 | -21.03 | 262.65 | -29.41 | 131.27 | 0.6120 | 1020.4 | 999999 | |
| 3.72 | -10.00 | 2.33 | -10.00 | -20.77 | 262.44 | -29.61 | 130.74 | 0.6120 | 1052.6 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.42 | -26.02 | 260.74 | -31.31 | 135.75 | 0.6716 | -649.0 | -579.7 | |
| 14.99 | -10.00 | 9.42 | -10.00 | -20.91 | 262.03 | -30.02 | 130.56 | 0.6175 | 922.7 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.41 | -22.68 | 261.39 | -30.67 | 132.27 | 0.6383 | -715.0 | -644.0 | |
| 0.00 | 1.82 | 0.00 | 1.18 | -22.63 | 260.63 | -31.43 | 131.56 | 0.6455 | -657.0 | -600.2 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -20.01 | 261.14 | -30.92 | 128.58 | 0.6198 | -700.0 | -526.0 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -18.26 | 261.35 | -30.70 | 126.36 | 0.6043 | 595.0 | 460.7 | |
| 2.09 | 84.40 | 1.34 | 53.94 | -21.26 | 260.47 | -31.59 | 129.67 | 0.6365 | -603.3 | -561.1 | |
| 1.91 | -20.00 | 1.21 | -20.00 | -20.62 | 260.62 | -31.44 | 128.96 | 0.6300 | -1118.6 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -19.29 | 260.88 | -31.18 | 127.39 | 0.6172 | -469.0 | -390.1 | |
| 1.64 | -20.00 | 1.04 | -20.00 | -20.49 | 260.49 | -31.56 | 128.69 | 0.6304 | -1045.6 | 999999 | |
| 10.36 | -20.00 | 6.63 | -20.00 | -20.83 | 260.26 | -31.79 | 128.94 | 0.6354 | -943.1 | 999999 | |
| 0.82 | 6.81 | 0.53 | 4.40 | -21.71 | 259.93 | -32.12 | 129.81 | 0.6454 | -867.7 | -691.6 | |
| 1.73 | -20.00 | 1.10 | -20.00 | -20.63 | 260.12 | -31.94 | 128.57 | 0.6354 | -936.2 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.47 | -21.28 | 259.84 | -32.21 | 129.18 | 0.6431 | -734.0 | -633.7 | |
| 0.91 | -20.00 | 0.58 | -20.00 | -20.54 | 259.95 | -32.11 | 128.30 | 0.6365 | -776.9 | 999999 | |
| 2.09 | -20.00 | 1.35 | -20.00 | -20.88 | 259.75 | -32.31 | 128.59 | 0.6411 | -667.2 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -23.32 | 258.95 | -33.11 | 131.05 | 0.6674 | -657.0 | -569.7 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -21.69 | 259.27 | -32.78 | 129.26 | 0.6521 | -293.0 | -328.3 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -23.09 | 258.65 | -33.40 | 130.54 | 0.6686 | -498.0 | -413.6 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -21.13 | 259.10 | -32.95 | 128.41 | 0.6497 | -494.0 | -418.4 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -20.27 | 258.81 | -33.25 | 127.06 | 0.6467 | -602.0 | -482.8 | |
| 72.86 | 484.85 | 48.05 | 320.16 | -18.96 | 256.58 | -35.47 | 123.70 | 0.6620 | 1259.9 | 358.4 | |
| 0.00 | 0.64 | 0.00 | 0.43 | -21.33 | 255.95 | -36.11 | 126.34 | 0.6838 | -557.0 | -510.3 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -22.04 | 255.61 | -36.44 | 127.01 | 0.6918 | -179.0 | -108.1 | |
| 12.90 | -35.00 | 8.48 | -35.00 | -18.47 | 256.50 | -35.55 | 122.99 | 0.6598 | 1324.3 | 999999 | |
| 2.82 | -35.00 | 1.86 | -35.00 | -18.35 | 256.21 | -35.84 | 122.63 | 0.6622 | 1078.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.83 | -23.13 | 254.35 | -37.70 | 127.50 | 0.7112 | -588.0 | -417.8 | |
| 0.00 | 1.73 | 0.00 | 1.22 | -23.62 | 253.98 | -38.08 | 127.84 | 0.7178 | -783.0 | -538.1 | |
| 0.00 | 1.27 | 0.00 | 0.89 | -20.83 | 253.08 | -38.97 | 123.85 | 0.7101 | -666.0 | -591.1 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -17.13 | 253.69 | -38.36 | 119.43 | 0.6832 | -529.0 | -482.0 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -18.02 | 253.26 | -38.79 | 120.36 | 0.6927 | -805.0 | -648.9 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -18.82 | 252.92 | -39.13 | 121.19 | 0.7007 | -779.0 | -705.0 | |
| 0.00 | 1.27 | 0.00 | 0.89 | -20.08 | 252.46 | -39.59 | 122.55 | 0.7123 | -481.0 | -416.2 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -18.03 | 252.89 | -39.17 | 120.16 | 0.6969 | -772.0 | -660.8 | |
| 0.00 | 3.09 | 0.00 | 2.14 | -18.76 | 252.69 | -39.37 | 120.98 | 0.7029 | -650.0 | -569.2 | |
| 0.00 | 1.09 | 0.00 | 0.76 | -18.28 | 252.44 | -39.61 | 120.22 | 0.7029 | -544.0 | -456.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
