SDO HMI 2014-07-03 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.99 | 28.52 | 13.67 | 29.81 | -16.12 | 232.70 | -59.36 | 110.17 | 0.8819 | -57.4 | -22.1 | |
|
previous
or next observation for the same group /

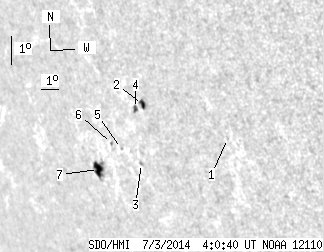

back to the solar disc SDO HMI 2014-07-03 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.55 | -15.46 | 239.41 | -52.64 | 111.24 | 0.8241 | 235.0 | 204.7 | |
| 3.18 | 5.27 | 3.07 | 5.09 | -14.57 | 235.06 | -56.99 | 109.02 | 0.8605 | 568.0 | 380.3 | |
| 0.00 | 1.54 | 0.00 | 1.55 | -16.51 | 234.15 | -57.90 | 110.96 | 0.8718 | 476.0 | 356.5 | |
| 1.45 | 3.18 | 1.42 | 3.12 | -14.72 | 234.59 | -57.46 | 109.07 | 0.8647 | 437.1 | 236.8 | |
| 0.00 | 1.09 | 0.00 | 1.12 | -16.07 | 233.14 | -58.91 | 110.23 | 0.8789 | 377.0 | 267.9 | |
| 0.00 | 1.27 | 0.00 | 1.33 | -15.94 | 232.58 | -59.47 | 109.94 | 0.8830 | 312.0 | 259.8 | |
| 8.36 | 15.53 | 9.18 | 17.05 | -16.84 | 231.28 | -60.78 | 110.63 | 0.8944 | -520.5 | -361.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
