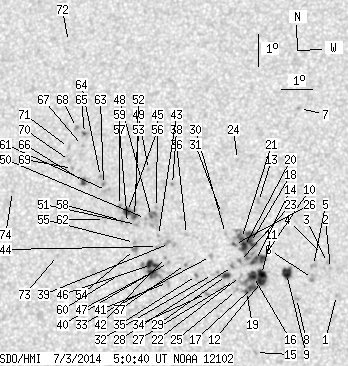

SDO HMI 2014-07-03 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.77 | 273.21 | 38.11 | 141.81 | 12.36 | 276.96 | -14.55 | 56.28 | 0.2958 | -138.9 | -32.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.51 | 10.87 | 281.31 | -10.20 | 51.95 | 0.2217 | -843.0 | -641.3 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 11.70 | 281.09 | -10.41 | 49.64 | 0.2333 | -1063.0 | -867.5 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 11.88 | 280.99 | -10.52 | 49.30 | 0.2366 | -940.0 | -736.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 12.13 | 280.82 | -10.68 | 48.95 | 0.2414 | -867.0 | -675.9 | |
| 0.00 | 2.82 | 0.00 | 1.44 | 11.79 | 280.55 | -10.96 | 50.75 | 0.2413 | -972.0 | -864.4 | |
| 0.00 | 3.82 | 0.00 | 1.95 | 11.39 | 280.53 | -10.97 | 52.13 | 0.2374 | -993.0 | -857.8 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 16.66 | 279.86 | -11.65 | 39.39 | 0.3061 | 683.0 | 555.9 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 10.77 | 280.05 | -11.46 | 55.42 | 0.2380 | -991.0 | -814.5 | |
| 7.45 | 10.18 | 3.81 | 5.21 | 11.53 | 279.70 | -11.80 | 53.60 | 0.2501 | -1174.3 | -811.0 | |
| 4.18 | 60.24 | 2.15 | 31.03 | 11.99 | 278.92 | -12.59 | 53.84 | 0.2652 | -1177.1 | -730.5 | |
| 6.72 | 39.43 | 3.45 | 20.24 | 11.50 | 278.91 | -12.60 | 55.43 | 0.2607 | -1311.4 | -632.1 | |
| 4.72 | -11.00 | 2.42 | -11.00 | 11.28 | 278.92 | -12.59 | 56.11 | 0.2586 | -1241.8 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 13.75 | 278.70 | -12.80 | 49.16 | 0.2858 | -776.0 | -663.3 | |
| 3.27 | -10.00 | 1.68 | -10.00 | 11.92 | 278.70 | -12.81 | 54.50 | 0.2676 | -1164.1 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 9.10 | 278.81 | -12.69 | 64.01 | 0.2424 | -921.0 | -638.9 | |
| 6.54 | -11.00 | 3.36 | -11.00 | 11.43 | 278.66 | -12.85 | 56.15 | 0.2636 | -1054.6 | 999999 | |
| 4.09 | -11.00 | 2.10 | -11.00 | 11.09 | 278.64 | -12.87 | 57.29 | 0.2609 | -1013.9 | 999999 | |
| 5.27 | -10.00 | 2.71 | -10.00 | 12.48 | 278.51 | -12.99 | 53.19 | 0.2754 | -1075.7 | 999999 | |
| 1.27 | -11.00 | 0.65 | -11.00 | 10.97 | 278.45 | -13.05 | 58.06 | 0.2624 | -853.8 | 999999 | |
| 4.45 | -10.00 | 2.29 | -10.00 | 12.35 | 278.33 | -13.18 | 53.94 | 0.2768 | -1077.0 | 999999 | |
| 1.54 | -10.00 | 0.80 | -10.00 | 12.60 | 278.22 | -13.29 | 53.43 | 0.2806 | -877.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 11.43 | 278.24 | -13.26 | 56.97 | 0.2694 | -684.0 | -522.2 | |
| 0.00 | 2.36 | 0.00 | 1.22 | 11.89 | 278.19 | -13.32 | 55.62 | 0.2743 | -800.0 | -678.1 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 15.05 | 277.95 | -13.56 | 47.36 | 0.3091 | -761.0 | -580.6 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 10.99 | 278.13 | -13.37 | 58.56 | 0.2673 | -578.0 | -404.1 | |
| 0.82 | -10.00 | 0.42 | -10.00 | 12.41 | 278.00 | -13.50 | 54.40 | 0.2817 | -657.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 11.30 | 278.06 | -13.45 | 57.72 | 0.2710 | -853.0 | -624.7 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 11.73 | 277.97 | -13.53 | 56.52 | 0.2759 | -836.0 | -607.3 | |
| 3.09 | 7.54 | 1.59 | 3.89 | 11.45 | 277.79 | -13.71 | 57.72 | 0.2760 | -921.6 | -608.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 12.75 | 277.69 | -13.81 | 54.01 | 0.2890 | -733.0 | -490.3 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 13.36 | 277.53 | -13.98 | 52.58 | 0.2971 | -885.0 | -706.7 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 11.48 | 277.34 | -14.16 | 58.44 | 0.2827 | -54.0 | -133.7 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 12.03 | 277.25 | -14.26 | 56.92 | 0.2887 | -684.0 | -452.6 | |
| 0.00 | 3.00 | 0.00 | 1.55 | 10.89 | 277.18 | -14.33 | 60.55 | 0.2803 | -852.0 | -630.5 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 11.44 | 276.83 | -14.68 | 59.41 | 0.2897 | -615.0 | -453.4 | |
| 0.00 | 2.27 | 0.00 | 1.18 | 12.70 | 276.44 | -15.07 | 56.38 | 0.3059 | -397.0 | -275.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 11.78 | 276.46 | -15.05 | 59.01 | 0.2978 | 850.0 | 633.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 14.24 | 275.88 | -15.62 | 53.21 | 0.3274 | -976.0 | -815.6 | |
| 0.00 | 5.27 | 0.00 | 2.75 | 12.42 | 275.90 | -15.60 | 58.05 | 0.3109 | 581.0 | 448.0 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 11.83 | 275.91 | -15.60 | 59.71 | 0.3061 | 922.0 | 779.4 | |
| 0.00 | 2.36 | 0.00 | 1.23 | 11.21 | 275.91 | -15.60 | 61.52 | 0.3014 | 1066.0 | 938.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 11.98 | 275.80 | -15.71 | 59.43 | 0.3089 | 1089.0 | 834.8 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 12.66 | 275.53 | -15.97 | 57.95 | 0.3182 | -670.0 | -574.4 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 12.32 | 275.52 | -15.98 | 58.91 | 0.3155 | 927.0 | 794.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 13.52 | 275.41 | -16.10 | 55.83 | 0.3272 | 996.0 | 762.6 | |
| 6.27 | 27.35 | 3.27 | 14.25 | 11.76 | 275.36 | -16.15 | 60.72 | 0.3135 | 1128.5 | 736.5 | |
| 4.00 | -46.00 | 2.08 | -46.00 | 11.51 | 275.38 | -16.13 | 61.40 | 0.3114 | 1125.1 | 999999 | |
| 0.82 | 12.90 | 0.43 | 6.75 | 13.24 | 275.27 | -16.24 | 56.79 | 0.3268 | 1216.6 | 626.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 14.70 | 275.06 | -16.44 | 53.42 | 0.3424 | -611.0 | -480.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 13.18 | 275.08 | -16.43 | 57.25 | 0.3289 | 961.0 | 786.2 | |
| 0.00 | 2.91 | 0.00 | 1.53 | 12.99 | 274.79 | -16.71 | 58.17 | 0.3312 | 1009.0 | 810.3 | |
| 0.00 | 1.82 | 0.00 | 0.96 | 13.67 | 274.71 | -16.79 | 56.52 | 0.3380 | 911.0 | 771.8 | |
| 1.91 | 11.63 | 1.00 | 6.12 | 13.24 | 274.71 | -16.79 | 57.64 | 0.3344 | 1194.0 | 934.0 | |
| 0.00 | 3.00 | 0.00 | 1.57 | 12.22 | 274.78 | -16.73 | 60.26 | 0.3253 | 882.0 | 821.0 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 12.43 | 274.77 | -16.74 | 59.70 | 0.3272 | 881.0 | 699.5 | |
| 4.27 | -53.00 | 2.25 | -53.00 | 13.39 | 274.47 | -17.03 | 57.60 | 0.3390 | 1161.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 13.02 | 274.50 | -17.01 | 58.52 | 0.3356 | 703.0 | 627.2 | |
| 0.00 | 2.91 | 0.00 | 1.53 | 13.11 | 274.30 | -17.21 | 58.57 | 0.3392 | 822.0 | 744.2 | |
| 0.00 | 1.73 | 0.00 | 0.91 | 13.57 | 274.20 | -17.31 | 57.52 | 0.3443 | 969.0 | 803.9 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 11.44 | 274.34 | -17.17 | 63.00 | 0.3261 | 610.0 | 467.2 | |
| 0.00 | 2.73 | 0.00 | 1.44 | 14.03 | 273.73 | -17.77 | 57.03 | 0.3545 | 844.0 | 807.7 | |
| 0.00 | 2.82 | 0.00 | 1.49 | 13.13 | 273.74 | -17.77 | 59.28 | 0.3473 | 699.0 | 549.1 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 14.21 | 273.62 | -17.89 | 56.74 | 0.3576 | 1040.0 | 922.8 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 14.46 | 273.50 | -18.01 | 56.31 | 0.3613 | 967.0 | 800.3 | |
| 0.73 | 2.73 | 0.39 | 1.46 | 15.79 | 272.85 | -18.66 | 54.15 | 0.3814 | 876.4 | 618.4 | |
| 2.36 | 5.45 | 1.26 | 2.90 | 14.30 | 272.95 | -18.56 | 57.44 | 0.3674 | 1029.3 | 763.0 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 15.42 | 272.82 | -18.69 | 55.03 | 0.3786 | 1010.0 | 741.6 | |
| 0.00 | 2.09 | 0.00 | 1.12 | 15.97 | 272.56 | -18.94 | 54.13 | 0.3867 | 771.0 | 652.7 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 14.69 | 272.55 | -18.96 | 57.03 | 0.3761 | 883.0 | 679.2 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 14.94 | 272.43 | -19.08 | 56.62 | 0.3798 | 776.0 | 653.3 | |
| 0.00 | 1.82 | 0.00 | 0.97 | 15.35 | 272.36 | -19.15 | 55.80 | 0.3841 | 658.0 | 516.6 | |
| 0.00 | 0.64 | 0.00 | 0.35 | 18.67 | 272.00 | -19.50 | 49.37 | 0.4185 | -753.0 | -609.3 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 11.99 | 272.27 | -19.24 | 63.95 | 0.3602 | 729.0 | 635.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 13.95 | 270.61 | -20.90 | 61.03 | 0.3973 | 767.0 | 564.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
