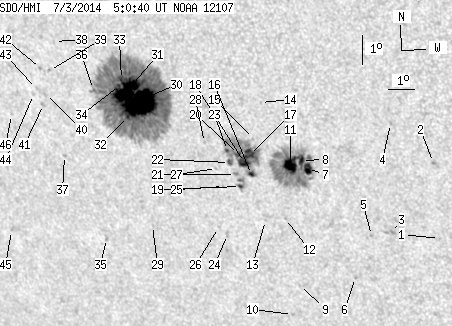

SDO HMI 2014-07-03 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 145.44 | 761.00 | 93.87 | 493.07 | -19.60 | 258.04 | -33.47 | 126.12 | 0.6451 | 530.8 | 199.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.50 | -23.26 | 267.03 | -24.48 | 139.10 | 0.5836 | 445.0 | 431.0 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -20.70 | 267.29 | -24.22 | 136.12 | 0.5557 | 784.0 | 654.6 | |
| 0.00 | 4.00 | 0.00 | 2.47 | -23.10 | 265.26 | -26.24 | 137.01 | 0.5987 | 578.0 | 498.1 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -19.43 | 265.96 | -25.54 | 132.93 | 0.5575 | 742.0 | 616.6 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -23.22 | 264.53 | -26.98 | 136.41 | 0.6068 | 637.0 | 543.0 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -24.68 | 263.59 | -27.92 | 137.25 | 0.6290 | 650.0 | 514.2 | |
| 7.00 | 134.74 | 4.35 | 84.25 | -21.01 | 262.62 | -28.88 | 131.73 | 0.6064 | 1022.7 | 220.1 | |
| 3.54 | -7.00 | 2.20 | -7.00 | -20.75 | 262.46 | -29.05 | 131.23 | 0.6060 | 1055.1 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -25.01 | 261.35 | -30.16 | 135.58 | 0.6527 | -455.0 | -376.5 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -26.03 | 260.78 | -30.73 | 136.28 | 0.6665 | -743.0 | -650.0 | |
| 15.99 | -7.00 | 9.99 | -7.00 | -20.93 | 262.01 | -29.50 | 131.05 | 0.6122 | 913.3 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -22.72 | 261.40 | -30.11 | 132.83 | 0.6331 | -784.0 | -655.8 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -22.81 | 260.61 | -30.90 | 132.25 | 0.6417 | -446.0 | -399.3 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -18.86 | 261.32 | -30.19 | 127.64 | 0.6032 | 566.0 | 446.3 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -20.06 | 260.80 | -30.71 | 128.84 | 0.6180 | -460.0 | -367.1 | |
| 2.82 | 89.40 | 1.79 | 56.79 | -21.27 | 260.45 | -31.06 | 130.14 | 0.6311 | -549.1 | -507.9 | |
| 10.90 | -16.00 | 6.90 | -16.00 | -20.60 | 260.53 | -30.98 | 129.33 | 0.6251 | -1016.6 | 999999 | |
| 8.09 | -16.00 | 5.15 | -16.00 | -20.87 | 260.27 | -31.23 | 129.47 | 0.6299 | -917.3 | 999999 | |
| 1.45 | 8.81 | 0.93 | 5.66 | -21.69 | 259.92 | -31.58 | 130.24 | 0.6397 | -840.9 | -657.2 | |
| 2.63 | -16.00 | 1.68 | -16.00 | -20.61 | 260.11 | -31.40 | 128.99 | 0.6296 | -900.1 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.34 | -21.29 | 259.83 | -31.68 | 129.64 | 0.6377 | -675.0 | -653.6 | |
| 2.00 | -16.00 | 1.28 | -16.00 | -20.89 | 259.69 | -31.81 | 129.01 | 0.6361 | -670.4 | 999999 | |
| 1.00 | -16.00 | 0.64 | -16.00 | -20.49 | 259.71 | -31.79 | 128.50 | 0.6329 | -624.8 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.62 | -23.33 | 258.99 | -32.52 | 131.54 | 0.6618 | -648.0 | -516.3 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -21.71 | 259.26 | -32.24 | 129.72 | 0.6467 | -284.0 | -288.8 | |
| 0.00 | 0.64 | 0.00 | 0.42 | -23.10 | 258.69 | -32.81 | 131.02 | 0.6629 | -531.0 | -411.0 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -21.11 | 259.14 | -32.37 | 128.85 | 0.6435 | -330.0 | -369.7 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -20.25 | 258.88 | -32.62 | 127.52 | 0.6399 | -607.0 | -501.6 | |
| 0.00 | 0.64 | 0.00 | 0.43 | -23.12 | 256.04 | -35.47 | 129.03 | 0.6892 | -608.0 | -496.7 | |
| 74.59 | 489.52 | 48.86 | 321.10 | -18.97 | 256.54 | -34.97 | 124.07 | 0.6565 | 1260.1 | 358.5 | |
| 14.26 | -30.00 | 9.32 | -30.00 | -18.45 | 256.47 | -35.04 | 123.32 | 0.6540 | 1315.3 | 999999 | |
| 0.27 | -30.00 | 0.18 | -30.00 | -19.48 | 256.10 | -35.41 | 124.43 | 0.6646 | 574.3 | 999999 | |
| 0.27 | -30.00 | 0.18 | -30.00 | -18.26 | 256.12 | -35.39 | 122.83 | 0.6567 | 997.7 | 999999 | |
| 0.27 | -30.00 | 0.18 | -30.00 | -18.46 | 255.99 | -35.52 | 123.01 | 0.6594 | 853.3 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.41 | -23.63 | 253.97 | -37.54 | 128.22 | 0.7127 | -759.0 | -590.4 | |
| 0.36 | -30.00 | 0.24 | -30.00 | -18.63 | 254.91 | -36.59 | 122.51 | 0.6722 | 372.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -20.87 | 253.10 | -38.41 | 124.25 | 0.7046 | -702.0 | -613.0 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -17.10 | 253.72 | -37.79 | 119.73 | 0.6767 | -254.0 | -314.2 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -18.06 | 253.27 | -38.23 | 120.75 | 0.6869 | -798.0 | -649.1 | |
| 0.00 | 1.82 | 0.00 | 1.25 | -18.86 | 252.90 | -38.61 | 121.56 | 0.6953 | -750.0 | -610.2 | |
| 0.00 | 2.09 | 0.00 | 1.44 | -19.19 | 252.72 | -38.79 | 121.89 | 0.6991 | -654.0 | -565.0 | |
| 0.00 | 1.18 | 0.00 | 0.81 | -18.01 | 252.92 | -38.59 | 120.46 | 0.6905 | -694.0 | -622.5 | |
| 0.00 | 1.36 | 0.00 | 0.94 | -18.67 | 252.57 | -38.93 | 121.13 | 0.6978 | -717.0 | -557.8 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -18.88 | 252.39 | -39.11 | 121.29 | 0.7008 | -476.0 | -362.9 | |
| 0.00 | 0.73 | 0.00 | 0.54 | -23.50 | 249.90 | -41.60 | 125.56 | 0.7507 | -458.0 | -358.8 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -19.57 | 251.26 | -40.24 | 121.53 | 0.7164 | -461.0 | -316.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
