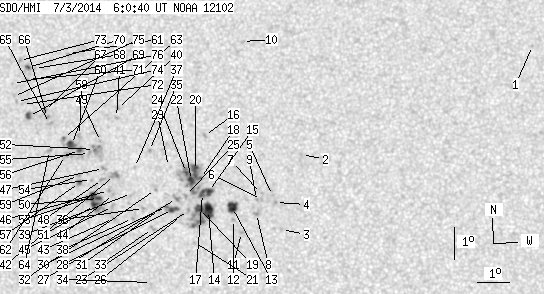

SDO HMI 2014-07-03 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.49 | 278.54 | 36.39 | 144.17 | 12.41 | 277.08 | -13.88 | 54.85 | 0.2872 | -159.0 | -67.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.60 | 16.59 | 289.10 | -1.86 | 7.59 | 0.2364 | -819.0 | -582.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 13.17 | 281.86 | -9.10 | 41.28 | 0.2345 | -773.0 | -564.0 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 10.85 | 281.31 | -9.65 | 50.55 | 0.2142 | -846.0 | -594.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 11.68 | 281.09 | -9.87 | 48.24 | 0.2261 | -1141.0 | -845.4 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 11.90 | 280.99 | -9.97 | 47.81 | 0.2298 | -869.0 | -760.0 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 11.77 | 280.64 | -10.32 | 49.17 | 0.2327 | -1106.0 | -789.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 11.95 | 280.64 | -10.32 | 48.57 | 0.2348 | -775.0 | -613.6 | |
| 0.00 | 2.45 | 0.00 | 1.25 | 11.34 | 280.50 | -10.46 | 51.01 | 0.2300 | -978.0 | -873.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 11.77 | 280.48 | -10.47 | 49.59 | 0.2348 | -904.0 | -831.6 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 16.67 | 279.80 | -11.16 | 38.19 | 0.3011 | 825.0 | 602.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 10.75 | 280.05 | -10.91 | 54.23 | 0.2302 | -1002.0 | -854.4 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 11.15 | 279.78 | -11.18 | 53.47 | 0.2378 | -800.0 | -569.9 | |
| 7.54 | 10.27 | 3.85 | 5.24 | 11.52 | 279.73 | -11.22 | 52.33 | 0.2421 | -1163.5 | -773.5 | |
| 11.36 | 41.25 | 5.81 | 21.12 | 11.42 | 278.98 | -11.98 | 54.40 | 0.2514 | -1320.2 | -774.0 | |
| 4.00 | 60.06 | 2.05 | 30.87 | 12.00 | 278.95 | -12.01 | 52.56 | 0.2574 | -1176.0 | -695.3 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 13.73 | 278.74 | -12.22 | 47.93 | 0.2782 | -804.0 | -670.2 | |
| 3.18 | -15.00 | 1.63 | -15.00 | 11.94 | 278.76 | -12.20 | 53.18 | 0.2593 | -1185.2 | 999999 | |
| 0.73 | -15.00 | 0.37 | -15.00 | 12.40 | 278.68 | -12.28 | 51.93 | 0.2651 | -1030.1 | 999999 | |
| 5.54 | -14.00 | 2.84 | -14.00 | 11.47 | 278.69 | -12.27 | 54.83 | 0.2559 | -1051.8 | 999999 | |
| 6.00 | -15.00 | 3.08 | -15.00 | 12.65 | 278.51 | -12.45 | 51.56 | 0.2698 | -946.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 10.43 | 278.57 | -12.39 | 58.62 | 0.2482 | -773.0 | -618.7 | |
| 3.91 | -15.00 | 2.01 | -15.00 | 12.34 | 278.39 | -12.57 | 52.74 | 0.2682 | -1118.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 11.41 | 278.34 | -12.62 | 55.77 | 0.2602 | -809.0 | -650.3 | |
| 1.54 | -15.00 | 0.80 | -15.00 | 12.58 | 278.22 | -12.74 | 52.37 | 0.2729 | -849.1 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 11.87 | 278.22 | -12.74 | 54.53 | 0.2661 | -882.0 | -728.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 11.25 | 278.12 | -12.84 | 56.71 | 0.2618 | -832.0 | -630.9 | |
| 0.00 | 3.63 | 0.00 | 1.87 | 11.77 | 277.94 | -13.02 | 55.41 | 0.2691 | -721.0 | -570.7 | |
| 3.27 | 8.54 | 1.68 | 4.39 | 11.43 | 277.83 | -13.13 | 56.70 | 0.2676 | -923.2 | -583.5 | |
| 0.00 | 0.36 | 0.00 | 0.19 | 12.76 | 277.63 | -13.32 | 53.04 | 0.2825 | -401.0 | -558.2 | |
| 0.64 | -28.00 | 0.33 | -28.00 | 11.52 | 277.63 | -13.33 | 56.79 | 0.2711 | -626.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 11.43 | 277.41 | -13.55 | 57.50 | 0.2734 | -672.0 | -430.7 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 12.04 | 277.25 | -13.70 | 55.89 | 0.2811 | -635.0 | -471.9 | |
| 0.00 | 2.63 | 0.00 | 1.36 | 10.84 | 277.22 | -13.74 | 59.73 | 0.2713 | -864.0 | -626.3 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 9.18 | 277.25 | -13.70 | 65.33 | 0.2585 | -404.0 | -511.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 13.25 | 277.00 | -13.96 | 52.90 | 0.2958 | -833.0 | -657.2 | |
| 0.00 | 2.36 | 0.00 | 1.22 | 11.45 | 276.90 | -14.06 | 58.34 | 0.2810 | -429.0 | -313.8 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 12.72 | 276.54 | -14.42 | 55.23 | 0.2970 | 804.0 | 553.3 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 11.14 | 276.56 | -14.40 | 59.89 | 0.2833 | -661.0 | -477.1 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 11.91 | 276.49 | -14.47 | 57.66 | 0.2906 | 348.0 | 399.1 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 14.54 | 275.88 | -15.08 | 51.54 | 0.3230 | -707.0 | -471.4 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 14.26 | 275.86 | -15.10 | 52.28 | 0.3205 | -984.0 | -777.9 | |
| 0.00 | 6.36 | 0.00 | 3.31 | 12.46 | 275.91 | -15.05 | 57.04 | 0.3035 | 307.0 | 327.1 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 11.14 | 275.95 | -15.01 | 60.88 | 0.2921 | 1005.0 | 739.8 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 11.87 | 275.91 | -15.05 | 58.73 | 0.2985 | 864.0 | 678.3 | |
| 0.00 | 2.18 | 0.00 | 1.13 | 11.50 | 275.90 | -15.06 | 59.85 | 0.2957 | 1024.0 | 850.1 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 12.00 | 275.74 | -15.21 | 58.65 | 0.3019 | 955.0 | 782.3 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 12.67 | 275.54 | -15.42 | 57.05 | 0.3104 | -659.0 | -576.1 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 12.33 | 275.53 | -15.43 | 58.02 | 0.3077 | 992.0 | 814.4 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 13.51 | 275.39 | -15.57 | 55.03 | 0.3198 | 887.0 | 637.4 | |
| 2.27 | 23.08 | 1.18 | 12.00 | 11.74 | 275.43 | -15.52 | 59.86 | 0.3043 | 1141.2 | 829.1 | |
| 4.72 | -50.00 | 2.46 | -50.00 | 11.53 | 275.32 | -15.64 | 60.67 | 0.3043 | 1088.0 | 999999 | |
| 0.36 | 13.36 | 0.19 | 6.97 | 13.26 | 275.21 | -15.75 | 55.99 | 0.3200 | 1247.8 | 690.1 | |
| 4.36 | -50.00 | 2.27 | -50.00 | 11.80 | 275.24 | -15.72 | 59.98 | 0.3076 | 1176.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 12.33 | 275.17 | -15.78 | 58.59 | 0.3127 | 838.0 | 640.0 | |
| 0.00 | 2.36 | 0.00 | 1.24 | 13.13 | 275.06 | -15.90 | 56.57 | 0.3211 | 965.0 | 797.9 | |
| 1.54 | 16.90 | 0.81 | 8.87 | 13.22 | 274.73 | -16.23 | 56.85 | 0.3264 | 1164.5 | 806.7 | |
| 1.36 | 2.73 | 0.71 | 1.42 | 12.23 | 274.79 | -16.17 | 59.44 | 0.3174 | 950.5 | 702.4 | |
| 0.00 | 2.82 | 0.00 | 1.48 | 13.68 | 274.69 | -16.26 | 55.69 | 0.3309 | 811.0 | 746.6 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 12.45 | 274.74 | -16.21 | 58.91 | 0.3198 | 717.0 | 554.1 | |
| 4.36 | -56.00 | 2.29 | -56.00 | 13.40 | 274.45 | -16.51 | 56.79 | 0.3318 | 1167.5 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 16.23 | 274.13 | -16.83 | 50.47 | 0.3619 | -844.0 | -684.1 | |
| 0.00 | 5.18 | 0.00 | 2.72 | 13.06 | 274.28 | -16.68 | 57.95 | 0.3313 | 780.0 | 681.6 | |
| 0.45 | -56.00 | 0.24 | -56.00 | 13.58 | 274.18 | -16.78 | 56.73 | 0.3371 | 969.8 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.29 | 13.21 | 273.75 | -17.21 | 58.33 | 0.3400 | 869.0 | 653.9 | |
| 0.00 | 2.73 | 0.00 | 1.44 | 14.04 | 273.68 | -17.27 | 56.30 | 0.3477 | 951.0 | 786.2 | |
| 0.00 | 1.73 | 0.00 | 0.91 | 14.23 | 273.60 | -17.35 | 55.96 | 0.3504 | 1086.0 | 908.6 | |
| 0.00 | 2.36 | 0.00 | 1.25 | 14.41 | 273.49 | -17.47 | 55.68 | 0.3535 | 848.0 | 755.6 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 15.75 | 273.05 | -17.91 | 53.21 | 0.3712 | 828.0 | 599.0 | |
| 2.18 | 3.54 | 1.16 | 1.88 | 14.25 | 272.98 | -17.98 | 56.80 | 0.3592 | 1050.0 | 878.8 | |
| 1.18 | 2.27 | 0.63 | 1.21 | 15.77 | 272.81 | -18.15 | 53.49 | 0.3745 | 968.4 | 780.1 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 15.40 | 272.81 | -18.15 | 54.33 | 0.3712 | 1015.0 | 835.9 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 14.62 | 272.75 | -18.21 | 56.23 | 0.3654 | 621.0 | 539.2 | |
| 0.00 | 2.09 | 0.00 | 1.12 | 15.99 | 272.52 | -18.44 | 53.42 | 0.3802 | 791.0 | 664.1 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 14.71 | 272.54 | -18.42 | 56.30 | 0.3689 | 831.0 | 619.9 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 14.86 | 272.43 | -18.53 | 56.09 | 0.3717 | 706.0 | 604.9 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 15.27 | 272.36 | -18.60 | 55.26 | 0.3761 | 714.0 | 619.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
