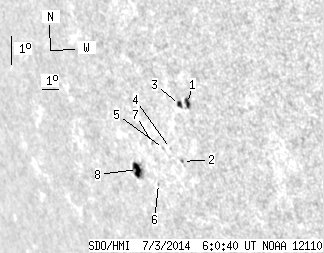

SDO HMI 2014-07-03 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.81 | 29.43 | 12.98 | 29.84 | -16.10 | 232.65 | -58.31 | 110.41 | 0.8738 | -34.1 | -76.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.00 | 5.45 | 2.80 | 5.09 | -14.54 | 235.24 | -55.71 | 109.31 | 0.8495 | 673.7 | 439.0 | |
| 0.00 | 1.18 | 0.00 | 1.15 | -16.45 | 234.15 | -56.80 | 111.19 | 0.8628 | 398.0 | 334.2 | |
| 2.27 | 3.45 | 2.15 | 3.26 | -14.59 | 234.77 | -56.19 | 109.25 | 0.8537 | 386.4 | 274.8 | |
| 0.00 | 0.82 | 0.00 | 0.81 | -16.05 | 233.63 | -57.33 | 110.61 | 0.8663 | -371.0 | -363.1 | |
| 0.00 | 1.00 | 0.00 | 1.00 | -16.07 | 233.20 | -57.76 | 110.52 | 0.8698 | 462.0 | 399.7 | |
| 0.00 | 0.91 | 0.00 | 0.94 | -17.24 | 232.33 | -58.63 | 111.60 | 0.8790 | -284.0 | -345.4 | |
| 0.00 | 1.54 | 0.00 | 1.56 | -15.91 | 232.61 | -58.34 | 110.19 | 0.8742 | 359.0 | 259.2 | |
| 7.54 | 15.08 | 8.03 | 16.03 | -16.84 | 231.22 | -59.74 | 110.88 | 0.8867 | -484.9 | -397.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
