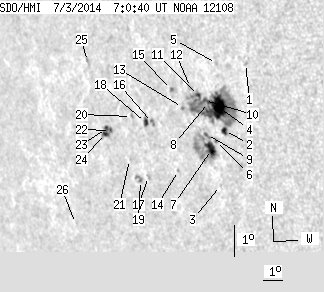

SDO HMI 2014-07-03 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.51 | 208.55 | 36.63 | 164.35 | -8.02 | 240.58 | -49.83 | 102.95 | 0.7783 | 343.0 | 115.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 1.22 | -6.14 | 243.04 | -47.37 | 101.08 | 0.7477 | 698.0 | 575.3 | |
| 3.18 | 118.85 | 2.44 | 91.65 | -8.26 | 241.76 | -48.65 | 103.55 | 0.7664 | 803.6 | 353.7 | |
| 0.00 | 1.00 | 0.00 | 0.78 | -10.00 | 241.25 | -49.16 | 105.62 | 0.7759 | 429.0 | 340.8 | |
| 22.35 | -2.00 | 17.17 | -2.00 | -7.56 | 241.60 | -48.82 | 102.60 | 0.7667 | 917.4 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.25 | -6.19 | 241.69 | -48.72 | 100.86 | 0.7630 | 153.0 | 214.8 | |
| 0.36 | 1.64 | 0.28 | 1.27 | -8.59 | 241.28 | -49.13 | 103.85 | 0.7723 | 704.8 | 649.5 | |
| 8.90 | 45.34 | 6.96 | 35.65 | -8.88 | 241.04 | -49.37 | 104.15 | 0.7756 | 708.6 | -28.9 | |
| 0.27 | -2.00 | 0.21 | -2.00 | -7.42 | 241.15 | -49.27 | 102.32 | 0.7714 | 484.7 | 999999 | |
| 0.82 | -7.00 | 0.64 | -7.00 | -8.42 | 240.88 | -49.53 | 103.53 | 0.7762 | 535.8 | 999999 | |
| 0.27 | -2.00 | 0.21 | -2.00 | -7.37 | 240.96 | -49.45 | 102.21 | 0.7732 | 364.3 | 999999 | |
| 2.27 | -2.00 | 1.78 | -2.00 | -7.22 | 240.70 | -49.71 | 101.96 | 0.7758 | 483.4 | 999999 | |
| 0.00 | 3.27 | 0.00 | 2.57 | -6.99 | 240.35 | -50.06 | 101.59 | 0.7791 | -170.0 | -127.9 | |
| 0.00 | 1.54 | 0.00 | 1.23 | -7.63 | 239.86 | -50.55 | 102.29 | 0.7855 | -568.0 | -544.6 | |
| 0.00 | 1.09 | 0.00 | 0.89 | -9.61 | 239.29 | -51.12 | 104.63 | 0.7954 | 284.0 | 302.8 | |
| 0.55 | 2.27 | 0.44 | 1.82 | -7.09 | 239.41 | -51.00 | 101.52 | 0.7892 | -732.2 | -567.2 | |
| 0.00 | 2.82 | 0.00 | 2.33 | -8.16 | 238.28 | -52.13 | 102.60 | 0.8029 | -724.0 | -584.2 | |
| 0.00 | 2.36 | 0.00 | 1.99 | -9.87 | 237.72 | -52.69 | 104.56 | 0.8118 | -603.0 | -490.0 | |
| 2.36 | 4.54 | 1.97 | 3.79 | -8.18 | 237.93 | -52.49 | 102.55 | 0.8065 | -577.7 | -443.9 | |
| 0.64 | 4.45 | 0.54 | 3.81 | -10.01 | 237.27 | -53.14 | 104.63 | 0.8164 | -641.6 | -476.4 | |
| 0.00 | 1.64 | 0.00 | 1.38 | -8.02 | 237.24 | -53.17 | 102.21 | 0.8131 | -541.0 | -346.1 | |
| 0.00 | 0.73 | 0.00 | 0.62 | -9.37 | 236.85 | -53.56 | 103.76 | 0.8194 | -507.0 | -393.5 | |
| 0.91 | 10.45 | 0.79 | 9.17 | -8.51 | 236.04 | -54.37 | 102.55 | 0.8257 | -711.6 | -490.8 | |
| 1.45 | -22.00 | 1.28 | -22.00 | -8.46 | 235.83 | -54.58 | 102.45 | 0.8276 | -649.9 | 999999 | |
| 2.18 | -22.00 | 1.92 | -22.00 | -8.61 | 235.75 | -54.66 | 102.62 | 0.8287 | -588.1 | 999999 | |
| 0.00 | 2.73 | 0.00 | 2.41 | -6.41 | 235.20 | -55.21 | 99.88 | 0.8305 | -749.0 | -571.1 | |
| 0.00 | 0.55 | 0.00 | 0.52 | -11.54 | 233.30 | -57.11 | 105.53 | 0.8560 | -362.0 | -323.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
