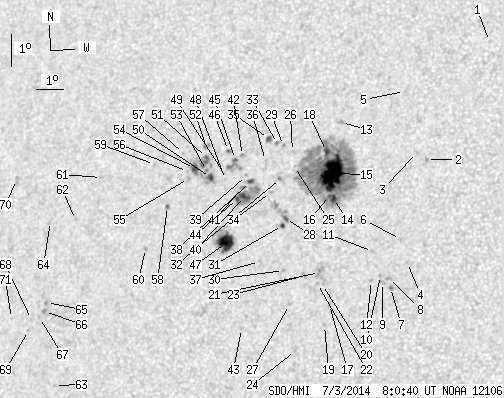

SDO HMI 2014-07-03 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.15 | 504.38 | 53.70 | 294.09 | 15.26 | 260.23 | -29.64 | 65.39 | 0.5265 | -328.9 | -91.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.46 | 20.08 | 266.66 | -23.20 | 51.34 | 0.4758 | -667.0 | -448.1 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 16.31 | 264.99 | -24.87 | 59.98 | 0.4680 | -936.0 | -763.8 | |
| 0.00 | 1.91 | 0.00 | 1.07 | 16.53 | 264.61 | -25.25 | 59.91 | 0.4745 | -795.0 | -630.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 13.10 | 264.72 | -25.14 | 66.68 | 0.4525 | -629.0 | -572.0 | |
| 0.00 | 0.45 | 0.00 | 0.26 | 18.43 | 263.90 | -25.96 | 57.03 | 0.4970 | -682.0 | -577.4 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 13.81 | 264.40 | -25.46 | 65.46 | 0.4608 | -765.0 | -656.4 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 12.31 | 264.22 | -25.65 | 68.67 | 0.4558 | -906.0 | -833.1 | |
| 0.00 | 2.18 | 0.00 | 1.21 | 12.59 | 264.12 | -25.74 | 68.16 | 0.4586 | -852.0 | -671.1 | |
| 0.00 | 2.09 | 0.00 | 1.17 | 12.46 | 263.92 | -25.94 | 68.55 | 0.4608 | -704.0 | -623.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 12.68 | 263.83 | -26.03 | 68.17 | 0.4631 | -600.0 | -516.4 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 13.41 | 263.47 | -26.39 | 66.92 | 0.4720 | -725.0 | -556.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 12.51 | 263.54 | -26.33 | 68.69 | 0.4666 | -599.0 | -467.6 | |
| 0.00 | 3.18 | 0.00 | 1.84 | 17.41 | 261.80 | -28.06 | 60.59 | 0.5173 | -752.0 | -649.0 | |
| 3.18 | 283.77 | 1.82 | 163.35 | 15.02 | 261.88 | -27.98 | 64.87 | 0.5025 | -1103.8 | -336.5 | |
| 44.89 | -14.00 | 25.80 | -14.00 | 15.80 | 261.73 | -28.13 | 63.54 | 0.5088 | -1296.5 | 999999 | |
| 0.27 | -14.00 | 0.16 | -14.00 | 15.11 | 261.72 | -28.14 | 64.81 | 0.5051 | -1054.0 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.44 | 11.74 | 262.15 | -27.72 | 71.07 | 0.4833 | -552.0 | -532.6 | |
| 3.54 | -14.00 | 2.05 | -14.00 | 16.48 | 261.41 | -28.46 | 62.53 | 0.5170 | -317.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 11.09 | 262.04 | -27.82 | 72.44 | 0.4823 | -529.0 | -372.5 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 12.35 | 261.83 | -28.03 | 70.03 | 0.4904 | -729.0 | -561.1 | |
| 0.00 | 7.18 | 0.00 | 4.08 | 12.72 | 261.68 | -28.18 | 69.40 | 0.4941 | -922.0 | -609.5 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 12.38 | 261.65 | -28.21 | 70.08 | 0.4931 | -843.0 | -666.6 | |
| 0.00 | 2.18 | 0.00 | 1.25 | 12.61 | 261.16 | -28.70 | 69.89 | 0.5011 | -800.0 | -654.5 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 10.30 | 261.10 | -28.77 | 74.46 | 0.4934 | -427.0 | -347.5 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 15.99 | 260.32 | -29.54 | 64.15 | 0.5287 | 310.0 | 259.1 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 16.45 | 260.17 | -29.69 | 63.43 | 0.5332 | 605.0 | 492.0 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 11.71 | 260.73 | -29.13 | 71.86 | 0.5036 | -632.0 | -463.2 | |
| 1.36 | 12.54 | 0.79 | 7.29 | 14.36 | 260.25 | -29.62 | 67.13 | 0.5216 | -913.1 | -309.7 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 16.63 | 259.81 | -30.05 | 63.35 | 0.5389 | 800.0 | 695.2 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 12.75 | 260.39 | -29.47 | 70.04 | 0.5125 | -829.0 | -701.8 | |
| 1.36 | 2.27 | 0.79 | 1.32 | 14.14 | 260.17 | -29.69 | 67.58 | 0.5217 | -740.0 | -566.1 | |
| 0.00 | 2.27 | 0.00 | 1.33 | 15.60 | 259.88 | -29.99 | 65.12 | 0.5327 | 858.0 | 706.2 | |
| 0.00 | 1.64 | 0.00 | 0.96 | 16.69 | 259.58 | -30.28 | 63.40 | 0.5423 | 594.0 | 655.6 | |
| 0.00 | 1.54 | 0.00 | 0.90 | 15.16 | 259.58 | -30.28 | 66.09 | 0.5345 | -555.0 | -407.6 | |
| 1.73 | 3.54 | 1.02 | 2.09 | 16.84 | 259.22 | -30.64 | 63.37 | 0.5478 | 787.0 | 660.3 | |
| 0.00 | 0.73 | 0.00 | 0.43 | 16.15 | 259.23 | -30.63 | 64.56 | 0.5440 | 696.0 | 525.0 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 13.01 | 259.49 | -30.37 | 70.02 | 0.5262 | -606.0 | -485.2 | |
| 1.73 | 35.80 | 1.02 | 21.13 | 15.48 | 258.79 | -31.07 | 65.98 | 0.5466 | 898.3 | 656.1 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 15.66 | 258.61 | -31.25 | 65.76 | 0.5499 | 577.0 | 502.7 | |
| 4.82 | -38.00 | 2.84 | -38.00 | 15.01 | 258.65 | -31.22 | 66.88 | 0.5464 | 1081.6 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.51 | 15.28 | 258.53 | -31.34 | 66.47 | 0.5493 | 815.0 | 674.5 | |
| 0.00 | 1.73 | 0.00 | 1.03 | 16.28 | 258.36 | -31.51 | 64.85 | 0.5563 | 607.0 | 601.6 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 10.92 | 259.10 | -30.76 | 74.06 | 0.5244 | -603.0 | -421.5 | |
| 1.45 | -38.00 | 0.86 | -38.00 | 14.94 | 258.40 | -31.46 | 67.14 | 0.5494 | 965.9 | 999999 | |
| 0.55 | 12.45 | 0.33 | 7.42 | 16.15 | 258.12 | -31.75 | 65.21 | 0.5588 | 816.2 | 754.9 | |
| 0.55 | 1.82 | 0.33 | 1.09 | 16.42 | 257.81 | -32.06 | 64.93 | 0.5642 | 801.0 | 690.1 | |
| 18.26 | 31.89 | 10.79 | 18.86 | 13.56 | 258.21 | -31.66 | 69.65 | 0.5463 | -989.6 | -304.2 | |
| 0.00 | 0.73 | 0.00 | 0.43 | 15.52 | 257.86 | -32.01 | 66.43 | 0.5593 | 567.0 | 534.4 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 15.70 | 257.79 | -32.08 | 66.16 | 0.5611 | 830.0 | 622.5 | |
| 2.64 | 34.35 | 1.58 | 20.73 | 15.56 | 257.28 | -32.58 | 66.66 | 0.5671 | 1001.7 | 681.2 | |
| 0.82 | -50.00 | 0.49 | -50.00 | 16.18 | 257.02 | -32.84 | 65.76 | 0.5733 | 839.3 | 999999 | |
| 0.00 | 3.18 | 0.00 | 1.92 | 16.53 | 256.96 | -32.91 | 65.23 | 0.5758 | 860.0 | 644.3 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 15.78 | 257.10 | -32.77 | 66.40 | 0.5705 | 917.0 | 790.4 | |
| 4.18 | -50.00 | 2.53 | -50.00 | 15.83 | 256.63 | -33.23 | 66.55 | 0.5768 | 856.5 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.32 | 15.51 | 256.46 | -33.40 | 67.17 | 0.5777 | 799.0 | 625.4 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 15.73 | 256.39 | -33.48 | 66.85 | 0.5796 | 396.0 | 377.5 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 16.28 | 256.13 | -33.74 | 66.06 | 0.5854 | 482.0 | 340.9 | |
| 0.82 | 1.91 | 0.50 | 1.16 | 14.62 | 255.82 | -34.04 | 68.95 | 0.5825 | 773.7 | 585.1 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 15.91 | 255.08 | -34.78 | 67.18 | 0.5973 | -681.0 | -603.7 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 13.29 | 255.21 | -34.65 | 71.41 | 0.5860 | -752.0 | -701.6 | |
| 0.00 | 1.64 | 0.00 | 1.03 | 15.44 | 253.11 | -36.76 | 68.78 | 0.6210 | 473.0 | 392.7 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 14.11 | 252.34 | -37.52 | 71.15 | 0.6264 | 707.0 | 631.3 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 8.97 | 252.31 | -37.55 | 79.35 | 0.6148 | 701.0 | 583.7 | |
| 0.00 | 1.73 | 0.00 | 1.11 | 14.01 | 251.36 | -38.51 | 71.63 | 0.6387 | 406.0 | 325.4 | |
| 0.00 | 1.82 | 0.00 | 1.15 | 11.51 | 251.65 | -38.22 | 75.44 | 0.6286 | 804.0 | 701.3 | |
| 0.00 | 2.45 | 0.00 | 1.56 | 11.23 | 251.61 | -38.25 | 75.89 | 0.6284 | 799.0 | 659.6 | |
| 0.00 | 1.18 | 0.00 | 0.75 | 11.04 | 251.44 | -38.42 | 76.23 | 0.6302 | 694.0 | 605.5 | |
| 0.00 | 1.27 | 0.00 | 0.81 | 10.97 | 251.13 | -38.73 | 76.42 | 0.6341 | 528.0 | 361.1 | |
| 0.00 | 1.27 | 0.00 | 0.81 | 10.63 | 251.07 | -38.80 | 76.97 | 0.6344 | 563.0 | 514.4 | |
| 0.00 | 2.82 | 0.00 | 1.86 | 15.27 | 249.70 | -40.16 | 70.28 | 0.6632 | 404.0 | 318.3 | |
| 0.00 | 0.73 | 0.00 | 0.47 | 10.97 | 250.33 | -39.53 | 76.59 | 0.6447 | 594.0 | 470.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
