SDO HMI 2014-07-03 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.35 | 31.80 | 13.99 | 31.18 | -16.00 | 232.68 | -57.18 | 110.59 | 0.8644 | -69.5 | -102.0 | |
|
previous
or next observation for the same group /

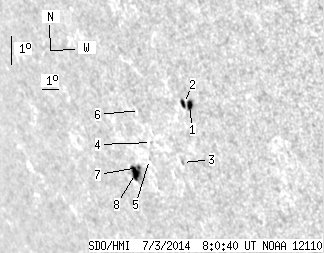

back to the solar disc SDO HMI 2014-07-03 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.18 | 11.09 | 3.78 | 10.06 | -14.55 | 235.30 | -54.56 | 109.63 | 0.8394 | 652.1 | 290.9 | |
| 2.36 | -1.00 | 2.16 | -1.00 | -14.50 | 234.99 | -54.87 | 109.49 | 0.8420 | 232.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.20 | -16.43 | 234.16 | -55.71 | 111.47 | 0.8536 | 367.0 | 282.7 | |
| 0.00 | 0.73 | 0.00 | 0.71 | -15.86 | 232.61 | -57.25 | 110.41 | 0.8652 | 399.0 | 307.1 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -16.42 | 232.24 | -57.63 | 110.95 | 0.8694 | -515.0 | -489.0 | |
| 0.00 | 1.36 | 0.00 | 1.34 | -14.84 | 232.34 | -57.52 | 109.20 | 0.8654 | -172.0 | -165.7 | |
| 1.00 | 17.08 | 1.02 | 17.60 | -16.72 | 231.43 | -58.44 | 111.07 | 0.8765 | -591.9 | -330.7 | |
| 6.81 | -7.00 | 7.03 | -7.00 | -16.92 | 231.14 | -58.72 | 111.23 | 0.8791 | -525.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
