SDO HMI 2014-07-03 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.48 | 513.73 | 131.10 | 765.07 | -7.88 | 219.50 | -69.81 | 99.52 | 0.9429 | 215.2 | 20.7 | |
|
previous
or next observation for the same group /

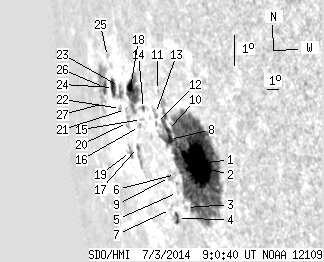

back to the solar disc SDO HMI 2014-07-03 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.98 | 391.34 | 48.00 | 536.74 | -8.32 | 221.85 | -67.46 | 100.24 | 0.9303 | 911.2 | 138.4 | |
| 25.71 | -1.00 | 35.54 | -1.00 | -8.42 | 221.16 | -68.16 | 100.26 | 0.9347 | 188.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 2.26 | -9.78 | 220.07 | -69.25 | 101.56 | 0.9421 | -144.0 | -177.0 | |
| 2.63 | 4.91 | 4.05 | 7.57 | -10.17 | 219.06 | -70.26 | 101.85 | 0.9480 | -13.7 | -195.3 | |
| 0.00 | 0.64 | 0.00 | 0.96 | -9.34 | 219.46 | -69.85 | 101.03 | 0.9452 | -478.0 | -475.4 | |
| 0.00 | 1.00 | 0.00 | 1.49 | -8.78 | 219.53 | -69.79 | 100.44 | 0.9445 | -501.0 | -437.7 | |
| 0.00 | 0.27 | 0.00 | 0.43 | -9.92 | 218.53 | -70.79 | 101.52 | 0.9507 | -501.0 | -446.0 | |
| 4.72 | -1.00 | 7.02 | -1.00 | -7.70 | 219.42 | -69.89 | 99.29 | 0.9444 | -217.6 | 999999 | |
| 0.00 | 3.27 | 0.00 | 5.02 | -8.90 | 218.92 | -70.39 | 100.50 | 0.9479 | -500.0 | -473.9 | |
| 2.00 | -1.00 | 2.97 | -1.00 | -7.42 | 219.34 | -69.97 | 99.00 | 0.9447 | 133.5 | 999999 | |
| 0.00 | 0.91 | 0.00 | 1.38 | -6.21 | 218.83 | -70.48 | 97.67 | 0.9468 | -372.0 | -372.6 | |
| 0.00 | 1.64 | 0.00 | 2.56 | -7.26 | 218.38 | -70.94 | 98.72 | 0.9499 | -514.0 | -441.1 | |
| 0.00 | 3.63 | 0.00 | 5.68 | -6.95 | 218.40 | -70.92 | 98.39 | 0.9496 | 19.0 | -48.7 | |
| 1.00 | 2.45 | 1.66 | 4.08 | -6.85 | 217.25 | -72.06 | 98.18 | 0.9556 | -175.1 | -270.6 | |
| 0.00 | 1.36 | 0.00 | 2.30 | -7.21 | 216.91 | -72.41 | 98.52 | 0.9575 | -320.0 | -250.9 | |
| 0.00 | 2.36 | 0.00 | 4.07 | -7.44 | 216.60 | -72.71 | 98.73 | 0.9591 | -488.0 | -432.2 | |
| 0.45 | 7.72 | 0.81 | 13.75 | -8.12 | 216.08 | -73.24 | 99.38 | 0.9620 | -544.4 | -491.0 | |
| 6.36 | 33.35 | 11.22 | 58.10 | -6.26 | 216.12 | -73.20 | 97.46 | 0.9609 | -646.9 | -561.5 | |
| 0.00 | 5.36 | 0.00 | 10.10 | -8.29 | 215.21 | -74.10 | 99.47 | 0.9660 | -509.0 | -329.0 | |
| 0.00 | 4.27 | 0.00 | 7.93 | -7.39 | 215.32 | -74.00 | 98.54 | 0.9651 | -630.0 | -559.1 | |
| 0.00 | 0.73 | 0.00 | 1.36 | -6.99 | 215.27 | -74.05 | 98.13 | 0.9652 | -684.0 | -655.6 | |
| 0.00 | 2.18 | 0.00 | 4.23 | -6.99 | 214.69 | -74.62 | 98.07 | 0.9678 | -525.0 | -401.7 | |
| 0.00 | 1.27 | 0.00 | 2.43 | -6.30 | 214.87 | -74.44 | 97.38 | 0.9667 | -452.0 | -420.9 | |
| 6.54 | 14.54 | 13.12 | 28.69 | -6.37 | 214.13 | -75.19 | 97.39 | 0.9699 | -194.9 | -306.7 | |
| 0.00 | 1.00 | 0.00 | 2.03 | -5.43 | 213.77 | -75.55 | 96.39 | 0.9711 | -112.0 | -107.3 | |
| 3.09 | 20.81 | 6.71 | 45.69 | -6.43 | 212.95 | -76.36 | 97.35 | 0.9747 | -86.4 | 149.1 | |
| 0.00 | 7.18 | 0.00 | 16.22 | -6.95 | 212.56 | -76.76 | 97.84 | 0.9764 | 458.0 | 291.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
