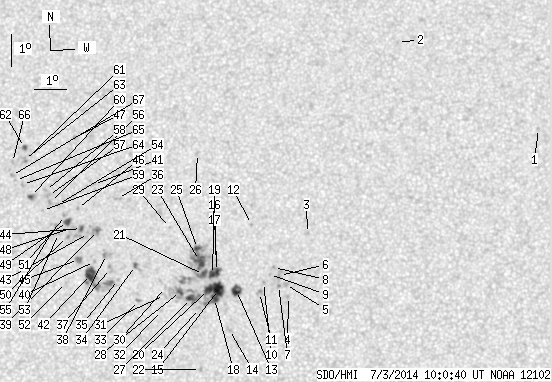

SDO HMI 2014-07-03 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.03 | 294.05 | 40.35 | 150.64 | 12.28 | 277.45 | -11.31 | 57.77 | 0.2519 | -230.9 | -60.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.51 | 16.47 | 289.23 | 0.46 | 358.08 | 0.2322 | -735.0 | -574.5 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 19.18 | 284.69 | -4.08 | 13.65 | 0.2861 | -768.0 | -677.3 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 13.19 | 281.97 | -6.80 | 33.31 | 0.2107 | -782.0 | -554.0 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 11.24 | 281.42 | -7.34 | 41.48 | 0.1901 | -845.0 | -672.6 | |
| 0.00 | 2.91 | 0.00 | 1.47 | 11.61 | 281.32 | -7.45 | 40.58 | 0.1960 | -814.0 | -644.5 | |
| 0.00 | 4.18 | 0.00 | 2.11 | 11.89 | 281.13 | -7.64 | 40.38 | 0.2017 | -923.0 | -782.3 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 11.58 | 281.10 | -7.66 | 41.50 | 0.1981 | -1063.0 | -860.7 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 12.13 | 280.93 | -7.84 | 40.29 | 0.2071 | -865.0 | -769.9 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 11.92 | 280.81 | -7.96 | 41.42 | 0.2056 | -853.0 | -700.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 11.67 | 280.63 | -8.14 | 42.89 | 0.2046 | -777.0 | -619.7 | |
| 0.00 | 2.82 | 0.00 | 1.42 | 11.36 | 280.51 | -8.26 | 44.36 | 0.2022 | -977.0 | -838.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 13.46 | 280.19 | -8.57 | 38.83 | 0.2323 | -880.0 | -711.3 | |
| 6.72 | 9.27 | 3.41 | 4.70 | 11.42 | 279.79 | -8.98 | 46.53 | 0.2118 | -1128.5 | -781.8 | |
| 0.00 | 3.00 | 0.00 | 1.52 | 10.22 | 279.60 | -9.16 | 51.59 | 0.2009 | -732.0 | -538.7 | |
| 12.63 | 65.87 | 6.41 | 33.49 | 11.44 | 279.22 | -9.55 | 48.16 | 0.2192 | -1275.4 | -624.3 | |
| 3.82 | 70.23 | 1.94 | 35.79 | 12.00 | 279.14 | -9.63 | 46.52 | 0.2265 | -1051.6 | -624.3 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 12.34 | 279.13 | -9.64 | 45.46 | 0.2306 | -161.0 | -171.4 | |
| 5.27 | -15.00 | 2.67 | -15.00 | 11.17 | 279.10 | -9.66 | 49.48 | 0.2177 | -1108.5 | 999999 | |
| 3.82 | -16.00 | 1.94 | -16.00 | 11.91 | 279.01 | -9.75 | 47.19 | 0.2270 | -1195.4 | 999999 | |
| 5.72 | -15.00 | 2.91 | -15.00 | 11.44 | 278.90 | -9.86 | 49.07 | 0.2232 | -1071.3 | 999999 | |
| 3.36 | -16.00 | 1.71 | -16.00 | 11.90 | 278.73 | -10.04 | 48.00 | 0.2305 | -1095.2 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 8.98 | 278.73 | -10.04 | 59.11 | 0.2016 | -900.0 | -750.0 | |
| 9.81 | -16.00 | 5.00 | -16.00 | 12.33 | 278.59 | -10.18 | 47.00 | 0.2371 | -983.8 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 10.86 | 278.64 | -10.13 | 51.89 | 0.2205 | -729.0 | -630.2 | |
| 2.63 | -16.00 | 1.35 | -16.00 | 12.70 | 278.51 | -10.26 | 46.06 | 0.2423 | -825.4 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 15.65 | 278.38 | -10.39 | 38.55 | 0.2799 | -694.0 | -488.3 | |
| 4.54 | -15.00 | 2.31 | -15.00 | 11.16 | 278.38 | -10.39 | 51.49 | 0.2271 | -962.0 | 999999 | |
| 2.36 | -15.00 | 1.20 | -15.00 | 11.37 | 278.02 | -10.75 | 51.67 | 0.2341 | -906.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 13.35 | 277.59 | -11.18 | 46.56 | 0.2609 | -737.0 | -544.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 11.49 | 277.54 | -11.23 | 52.44 | 0.2417 | -529.0 | -366.8 | |
| 0.00 | 2.91 | 0.00 | 1.48 | 11.25 | 277.52 | -11.25 | 53.33 | 0.2396 | -618.0 | -339.4 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 10.78 | 277.44 | -11.33 | 55.13 | 0.2362 | -667.0 | -415.6 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 11.08 | 276.70 | -12.07 | 55.73 | 0.2493 | -769.0 | -509.5 | |
| 1.00 | 3.91 | 0.51 | 2.00 | 12.16 | 276.56 | -12.21 | 52.54 | 0.2616 | 1076.1 | 581.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 11.72 | 276.04 | -12.73 | 55.02 | 0.2645 | 674.0 | 487.1 | |
| 0.00 | 3.00 | 0.00 | 1.55 | 14.23 | 275.88 | -12.89 | 48.10 | 0.2918 | -776.0 | -626.7 | |
| 0.00 | 3.63 | 0.00 | 1.87 | 12.06 | 275.77 | -13.00 | 54.52 | 0.2714 | 863.0 | 783.2 | |
| 0.00 | 5.27 | 0.00 | 2.72 | 12.49 | 275.62 | -13.15 | 53.52 | 0.2775 | 749.0 | 565.2 | |
| 0.64 | 7.90 | 0.33 | 4.09 | 13.23 | 275.29 | -13.48 | 52.04 | 0.2891 | 1157.4 | 848.2 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 12.27 | 275.24 | -13.52 | 54.91 | 0.2805 | 688.0 | 556.4 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 14.66 | 275.07 | -13.69 | 48.65 | 0.3064 | -750.0 | -583.5 | |
| 9.99 | 32.07 | 5.15 | 16.52 | 11.87 | 275.13 | -13.63 | 56.33 | 0.2784 | 1211.1 | 842.6 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 13.13 | 275.00 | -13.76 | 52.86 | 0.2919 | 846.0 | 671.3 | |
| 1.18 | 6.81 | 0.61 | 3.53 | 13.29 | 274.77 | -14.00 | 52.89 | 0.2965 | 1131.5 | 855.0 | |
| 0.00 | 4.36 | 0.00 | 2.26 | 12.33 | 274.73 | -14.04 | 55.71 | 0.2882 | 1031.0 | 833.4 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 13.90 | 274.60 | -14.16 | 51.53 | 0.3047 | 875.0 | 728.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 16.11 | 274.36 | -14.41 | 46.54 | 0.3308 | -934.0 | -762.9 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 13.31 | 274.51 | -14.26 | 53.30 | 0.3003 | 1038.0 | 880.2 | |
| 2.73 | 4.27 | 1.42 | 2.22 | 13.50 | 274.30 | -14.46 | 53.17 | 0.3047 | 1168.5 | 908.9 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 13.03 | 274.33 | -14.44 | 54.40 | 0.3000 | 886.0 | 783.4 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 13.68 | 274.23 | -14.54 | 52.82 | 0.3075 | 944.0 | 745.0 | |
| 0.00 | 0.55 | 0.00 | 0.28 | 11.61 | 274.34 | -14.42 | 58.52 | 0.2873 | 715.0 | 532.3 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 13.12 | 274.03 | -14.73 | 54.68 | 0.3049 | 775.0 | 614.1 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 14.02 | 273.95 | -14.82 | 52.43 | 0.3145 | 721.0 | 599.3 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 13.37 | 273.92 | -14.84 | 54.20 | 0.3086 | 933.0 | 802.9 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 14.08 | 273.71 | -15.05 | 52.69 | 0.3181 | 955.0 | 842.1 | |
| 0.00 | 2.09 | 0.00 | 1.09 | 14.30 | 273.63 | -15.13 | 52.27 | 0.3212 | 840.0 | 838.7 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 14.45 | 273.53 | -15.24 | 52.07 | 0.3241 | 927.0 | 756.7 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 13.83 | 273.47 | -15.30 | 53.76 | 0.3190 | 787.0 | 625.9 | |
| 1.45 | 2.82 | 0.76 | 1.48 | 14.26 | 273.05 | -15.72 | 53.37 | 0.3286 | 1047.9 | 932.8 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 15.53 | 272.92 | -15.84 | 50.48 | 0.3425 | 778.0 | 597.1 | |
| 1.36 | 2.18 | 0.72 | 1.15 | 15.78 | 272.74 | -16.03 | 50.22 | 0.3473 | 1028.1 | 853.6 | |
| 0.00 | 3.18 | 0.00 | 1.68 | 15.41 | 272.77 | -16.00 | 51.04 | 0.3432 | 907.0 | 748.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 14.63 | 272.76 | -16.01 | 52.93 | 0.3358 | 721.0 | 673.9 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 14.75 | 272.52 | -16.24 | 53.02 | 0.3401 | 732.0 | 646.4 | |
| 0.00 | 1.64 | 0.00 | 0.86 | 15.31 | 272.38 | -16.39 | 51.91 | 0.3472 | 691.0 | 532.7 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 14.90 | 272.38 | -16.39 | 52.88 | 0.3434 | 809.0 | 667.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
