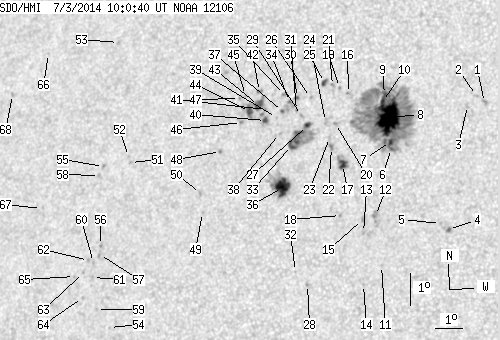

SDO HMI 2014-07-03 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.87 | 506.46 | 54.74 | 292.65 | 15.28 | 260.08 | -28.69 | 64.70 | 0.5138 | -202.9 | -89.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.00 | 0.00 | 1.66 | 16.34 | 265.01 | -23.75 | 58.90 | 0.4533 | -831.0 | -755.4 | |
| 0.00 | 1.73 | 0.00 | 0.96 | 16.55 | 264.71 | -24.06 | 58.78 | 0.4589 | -974.0 | -678.1 | |
| 0.00 | 2.00 | 0.00 | 1.11 | 16.23 | 264.44 | -24.33 | 59.65 | 0.4603 | -376.0 | -483.6 | |
| 0.55 | 2.18 | 0.30 | 1.20 | 12.37 | 264.22 | -24.55 | 67.80 | 0.4401 | -912.7 | -793.6 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 12.55 | 263.93 | -24.84 | 67.62 | 0.4452 | -737.0 | -556.3 | |
| 0.73 | 299.92 | 0.41 | 170.91 | 14.84 | 261.95 | -26.82 | 64.42 | 0.4854 | -837.4 | -328.1 | |
| 2.27 | -6.00 | 1.29 | -6.00 | 15.05 | 261.89 | -26.88 | 64.05 | 0.4875 | -1190.7 | 999999 | |
| 43.98 | -6.00 | 25.03 | -6.00 | 15.80 | 261.71 | -27.06 | 62.77 | 0.4942 | -1284.5 | 999999 | |
| 2.36 | -6.00 | 1.35 | -6.00 | 16.51 | 261.46 | -27.30 | 61.63 | 0.5018 | -370.9 | 999999 | |
| 1.64 | -6.00 | 0.94 | -6.00 | 16.29 | 261.42 | -27.34 | 62.06 | 0.5010 | -490.8 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.20 | 11.21 | 262.02 | -26.75 | 71.64 | 0.4670 | -719.0 | -622.2 | |
| 0.00 | 5.36 | 0.00 | 3.02 | 12.75 | 261.65 | -27.12 | 68.73 | 0.4791 | -952.0 | -724.1 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 12.21 | 261.28 | -27.48 | 70.01 | 0.4819 | -607.0 | -508.6 | |
| 0.00 | 0.73 | 0.00 | 0.41 | 10.61 | 261.45 | -27.32 | 73.17 | 0.4731 | -686.0 | -566.5 | |
| 0.00 | 1.73 | 0.00 | 0.98 | 12.61 | 261.20 | -27.56 | 69.26 | 0.4848 | -784.0 | -654.7 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 16.52 | 260.17 | -28.60 | 62.58 | 0.5191 | 556.0 | 530.1 | |
| 4.72 | 11.36 | 2.71 | 6.52 | 14.30 | 260.28 | -28.49 | 66.57 | 0.5057 | -921.7 | -640.4 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 12.72 | 260.41 | -28.36 | 69.51 | 0.4966 | -794.0 | -709.1 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 16.70 | 259.81 | -28.96 | 62.51 | 0.5248 | 811.0 | 687.1 | |
| 0.00 | 1.64 | 0.00 | 0.95 | 15.57 | 259.84 | -28.92 | 64.51 | 0.5182 | 936.0 | 730.6 | |
| 0.00 | 1.54 | 0.00 | 0.90 | 16.75 | 259.54 | -29.22 | 62.60 | 0.5286 | 913.0 | 782.8 | |
| 0.00 | 2.63 | 0.00 | 1.52 | 14.82 | 259.81 | -28.96 | 65.90 | 0.5148 | -596.0 | -369.9 | |
| 0.00 | 1.73 | 0.00 | 1.00 | 15.13 | 259.69 | -29.07 | 65.41 | 0.5179 | -460.0 | -304.4 | |
| 0.00 | 2.36 | 0.00 | 1.37 | 15.62 | 259.47 | -29.30 | 64.66 | 0.5235 | 788.0 | 682.6 | |
| 1.91 | 4.00 | 1.12 | 2.34 | 16.84 | 259.24 | -29.53 | 62.65 | 0.5332 | 776.3 | 553.0 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 16.36 | 258.80 | -29.96 | 63.78 | 0.5362 | 479.0 | 354.8 | |
| 2.45 | 38.89 | 1.43 | 22.71 | 15.48 | 258.84 | -29.93 | 65.31 | 0.5313 | 728.5 | 682.0 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 10.56 | 259.48 | -29.29 | 74.16 | 0.5019 | -586.0 | -496.5 | |
| 0.00 | 1.91 | 0.00 | 1.12 | 15.79 | 258.57 | -30.20 | 64.93 | 0.5364 | 744.0 | 559.2 | |
| 0.82 | 2.00 | 0.48 | 1.18 | 16.34 | 258.33 | -30.44 | 64.11 | 0.5425 | 709.6 | 566.3 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 15.94 | 258.36 | -30.41 | 64.79 | 0.5400 | 788.0 | 728.6 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 10.95 | 259.01 | -29.76 | 73.60 | 0.5099 | -632.0 | -492.3 | |
| 3.73 | -27.00 | 2.18 | -27.00 | 14.84 | 258.35 | -30.41 | 66.73 | 0.5348 | 954.8 | 999999 | |
| 0.36 | 9.72 | 0.21 | 5.74 | 16.21 | 258.06 | -30.71 | 64.50 | 0.5454 | 691.2 | 752.6 | |
| 0.00 | 2.00 | 0.00 | 1.18 | 16.43 | 257.83 | -30.93 | 64.27 | 0.5494 | 768.0 | 633.9 | |
| 17.35 | 38.16 | 10.13 | 22.31 | 13.53 | 258.22 | -30.55 | 69.16 | 0.5308 | -986.5 | -244.5 | |
| 0.55 | -34.00 | 0.32 | -34.00 | 15.89 | 257.85 | -30.92 | 65.18 | 0.5465 | 935.5 | 999999 | |
| 0.00 | 0.55 | 0.00 | 0.32 | 15.20 | 257.85 | -30.91 | 66.37 | 0.5432 | 865.0 | 702.0 | |
| 0.00 | 0.73 | 0.00 | 0.43 | 15.70 | 257.66 | -31.11 | 65.62 | 0.5481 | 838.0 | 677.2 | |
| 2.00 | 7.27 | 1.19 | 4.32 | 15.60 | 257.27 | -31.50 | 66.02 | 0.5528 | 970.5 | 704.8 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 15.94 | 257.21 | -31.56 | 65.47 | 0.5552 | 878.0 | 793.1 | |
| 0.00 | 2.45 | 0.00 | 1.47 | 16.49 | 256.89 | -31.88 | 64.71 | 0.5622 | 787.0 | 597.3 | |
| 5.36 | 17.99 | 3.20 | 10.75 | 16.06 | 256.93 | -31.84 | 65.43 | 0.5595 | 959.7 | 678.1 | |
| 4.09 | -43.00 | 2.45 | -43.00 | 15.86 | 256.63 | -32.14 | 65.93 | 0.5626 | 876.1 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.38 | 16.36 | 256.39 | -32.38 | 65.23 | 0.5681 | 514.0 | 391.9 | |
| 0.00 | 1.82 | 0.00 | 1.09 | 15.51 | 256.39 | -32.38 | 66.65 | 0.5642 | 738.0 | 640.5 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 16.26 | 256.18 | -32.59 | 65.51 | 0.5703 | 529.0 | 388.1 | |
| 0.00 | 1.73 | 0.00 | 1.04 | 14.59 | 255.76 | -33.01 | 68.53 | 0.5687 | 890.0 | 709.5 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 12.68 | 255.38 | -33.38 | 71.96 | 0.5667 | -575.0 | -463.6 | |
| 0.00 | 1.82 | 0.00 | 1.09 | 13.26 | 255.22 | -33.55 | 71.02 | 0.5710 | -761.0 | -608.5 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 14.14 | 252.38 | -36.38 | 70.69 | 0.6117 | 780.0 | 625.8 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 14.33 | 252.27 | -36.50 | 70.44 | 0.6138 | 750.0 | 576.2 | |
| 0.00 | 1.64 | 0.00 | 1.05 | 17.87 | 251.10 | -37.67 | 65.46 | 0.6416 | 637.0 | 469.7 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 9.04 | 252.34 | -36.43 | 79.02 | 0.5996 | 706.0 | 577.4 | |
| 0.00 | 2.00 | 0.00 | 1.27 | 13.99 | 251.35 | -37.42 | 71.31 | 0.6247 | 594.0 | 439.7 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 11.55 | 251.65 | -37.12 | 75.09 | 0.6140 | 877.0 | 653.9 | |
| 0.00 | 2.45 | 0.00 | 1.54 | 11.27 | 251.65 | -37.11 | 75.54 | 0.6133 | 759.0 | 608.3 | |
| 0.00 | 1.45 | 0.00 | 0.92 | 13.70 | 251.24 | -37.52 | 71.79 | 0.6252 | 562.0 | 474.9 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 9.58 | 251.77 | -37.00 | 78.26 | 0.6083 | 716.0 | 542.4 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 11.02 | 251.46 | -37.31 | 76.00 | 0.6154 | 693.0 | 587.0 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 10.55 | 251.48 | -37.28 | 76.74 | 0.6140 | 742.0 | 614.8 | |
| 0.00 | 1.54 | 0.00 | 0.97 | 11.07 | 251.25 | -37.52 | 75.96 | 0.6183 | 698.0 | 570.7 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 10.70 | 251.11 | -37.66 | 76.60 | 0.6193 | 724.0 | 590.4 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 9.93 | 251.18 | -37.59 | 77.82 | 0.6169 | 602.0 | 462.1 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 10.56 | 250.78 | -37.99 | 76.89 | 0.6235 | 462.0 | 353.9 | |
| 0.00 | 0.64 | 0.00 | 0.43 | 17.44 | 248.32 | -40.45 | 67.24 | 0.6735 | 472.0 | 408.3 | |
| 0.00 | 0.45 | 0.00 | 0.30 | 12.61 | 249.12 | -39.65 | 74.12 | 0.6497 | 493.0 | 495.0 | |
| 0.00 | 1.82 | 0.00 | 1.23 | 16.10 | 247.15 | -41.62 | 69.55 | 0.6833 | 530.0 | 460.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
