SDO HMI 2014-07-03 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.38 | 548.51 | 154.04 | 795.78 | -7.81 | 219.45 | -69.32 | 99.51 | 0.9400 | 218.6 | 14.3 | |
|
previous
or next observation for the same group /

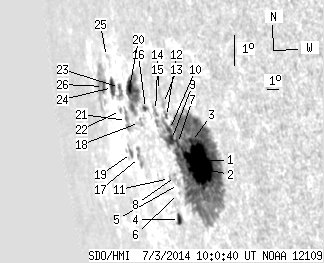

back to the solar disc SDO HMI 2014-07-03 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.52 | 410.77 | 47.54 | 549.69 | -8.26 | 221.90 | -66.87 | 100.25 | 0.9264 | 918.3 | 138.4 | |
| 30.16 | -1.00 | 40.60 | -1.00 | -8.48 | 221.17 | -67.59 | 100.40 | 0.9312 | 225.8 | 999999 | |
| 2.36 | -1.00 | 3.17 | -1.00 | -7.67 | 221.21 | -67.56 | 99.54 | 0.9304 | 374.9 | 999999 | |
| 4.27 | 6.45 | 6.37 | 9.60 | -10.20 | 219.15 | -69.62 | 101.97 | 0.9445 | -39.7 | -20.6 | |
| 0.00 | 1.73 | 0.00 | 2.50 | -9.09 | 219.57 | -69.20 | 100.85 | 0.9413 | -141.0 | -203.1 | |
| 0.00 | 0.73 | 0.00 | 1.06 | -9.38 | 219.44 | -69.32 | 101.13 | 0.9422 | -303.0 | -259.5 | |
| 3.09 | -1.00 | 4.36 | -1.00 | -7.80 | 220.00 | -68.77 | 99.53 | 0.9379 | 29.1 | 999999 | |
| 0.00 | 1.73 | 0.00 | 2.52 | -8.85 | 219.41 | -69.36 | 100.57 | 0.9421 | -454.0 | -363.3 | |
| 5.36 | -1.00 | 7.75 | -1.00 | -7.70 | 219.51 | -69.26 | 99.37 | 0.9407 | -143.6 | 999999 | |
| 2.36 | -1.00 | 3.42 | -1.00 | -7.39 | 219.44 | -69.32 | 99.03 | 0.9409 | 131.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 2.18 | -8.94 | 218.83 | -69.94 | 100.60 | 0.9454 | -592.0 | -465.4 | |
| 0.82 | -1.00 | 1.19 | -1.00 | -7.00 | 219.31 | -69.45 | 98.60 | 0.9414 | 45.8 | 999999 | |
| 0.00 | 4.36 | 0.00 | 6.37 | -6.60 | 219.18 | -69.59 | 98.17 | 0.9420 | -165.0 | -139.6 | |
| 0.00 | 2.00 | 0.00 | 2.95 | -6.22 | 218.85 | -69.92 | 97.73 | 0.9437 | -440.0 | -366.8 | |
| 0.00 | 4.63 | 0.00 | 7.06 | -6.86 | 218.36 | -70.41 | 98.36 | 0.9468 | -51.0 | -106.0 | |
| 1.54 | 2.91 | 2.47 | 4.65 | -6.85 | 217.41 | -71.35 | 98.25 | 0.9519 | -95.4 | -193.7 | |
| 0.00 | 7.72 | 0.00 | 13.32 | -8.43 | 216.14 | -72.63 | 99.76 | 0.9592 | -598.0 | -477.3 | |
| 0.00 | 4.18 | 0.00 | 6.96 | -7.32 | 216.63 | -72.13 | 98.66 | 0.9562 | -458.0 | -398.2 | |
| 1.73 | 4.63 | 3.13 | 8.42 | -8.35 | 215.32 | -73.45 | 99.60 | 0.9631 | -384.9 | -356.6 | |
| 7.18 | 38.61 | 12.35 | 65.32 | -6.27 | 216.00 | -72.76 | 97.51 | 0.9588 | -566.5 | -570.4 | |
| 0.00 | 8.81 | 0.00 | 15.89 | -7.33 | 215.25 | -73.51 | 98.54 | 0.9629 | -625.0 | -552.8 | |
| 0.00 | 1.64 | 0.00 | 3.05 | -7.05 | 214.71 | -74.06 | 98.19 | 0.9653 | -481.0 | -426.4 | |
| 1.27 | 7.90 | 2.34 | 14.54 | -6.33 | 214.90 | -73.87 | 97.47 | 0.9641 | -485.2 | -476.1 | |
| 6.27 | 9.18 | 12.14 | 17.78 | -6.37 | 214.07 | -74.70 | 97.44 | 0.9678 | -203.2 | -40.8 | |
| 0.00 | 0.82 | 0.00 | 1.61 | -5.44 | 213.72 | -75.04 | 96.44 | 0.9690 | -103.0 | -96.1 | |
| 3.45 | 28.26 | 7.21 | 60.31 | -6.40 | 212.95 | -75.82 | 97.37 | 0.9725 | -74.4 | 216.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
