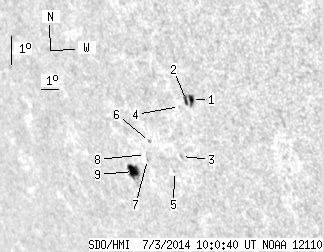

SDO HMI 2014-07-03 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.63 | 33.89 | 15.93 | 32.38 | -16.17 | 232.60 | -56.16 | 111.05 | 0.8563 | -119.6 | -43.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.91 | 10.27 | 3.44 | 9.05 | -14.46 | 235.43 | -53.34 | 109.87 | 0.8281 | 677.2 | 399.2 | |
| 2.09 | -1.00 | 1.85 | -1.00 | -14.50 | 235.15 | -53.62 | 109.85 | 0.8308 | 346.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.17 | -16.34 | 234.17 | -54.60 | 111.69 | 0.8439 | 506.0 | 375.9 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -14.72 | 234.69 | -54.07 | 109.96 | 0.8354 | 271.0 | 272.3 | |
| 0.00 | 0.91 | 0.00 | 0.85 | -16.85 | 233.56 | -55.21 | 112.10 | 0.8504 | 259.0 | 224.9 | |
| 0.00 | 1.18 | 0.00 | 1.13 | -15.93 | 232.54 | -56.23 | 110.77 | 0.8569 | 252.0 | 191.0 | |
| 0.00 | 0.91 | 0.00 | 0.88 | -16.53 | 232.16 | -56.61 | 111.34 | 0.8614 | -548.0 | -543.5 | |
| 0.00 | 0.82 | 0.00 | 0.79 | -16.37 | 232.11 | -56.66 | 111.15 | 0.8614 | -496.0 | -541.3 | |
| 10.63 | 18.26 | 10.64 | 18.27 | -16.97 | 231.12 | -57.64 | 111.56 | 0.8707 | -548.5 | -292.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
