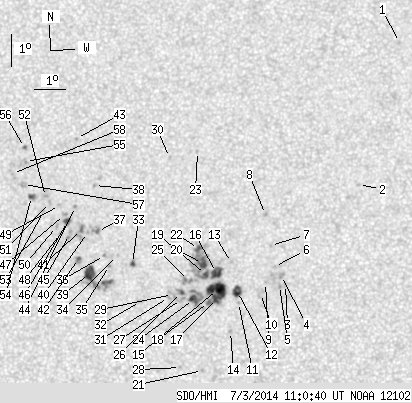

SDO HMI 2014-07-03 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.96 | 269.93 | 39.23 | 138.02 | 12.26 | 277.44 | -10.78 | 48.35 | 0.2449 | -284.2 | -77.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 0.84 | 19.18 | 284.75 | -3.47 | 11.66 | 0.2839 | -825.0 | -635.6 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 14.72 | 283.53 | -4.69 | 21.43 | 0.2172 | -772.0 | -546.9 | |
| 0.00 | 2.27 | 0.00 | 1.15 | 11.62 | 281.30 | -6.91 | 38.52 | 0.1902 | -818.0 | -595.0 | |
| 0.00 | 3.91 | 0.00 | 1.97 | 11.89 | 281.17 | -7.05 | 38.13 | 0.1953 | -860.0 | -778.5 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 11.58 | 281.12 | -7.10 | 39.36 | 0.1918 | -1150.0 | -901.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.17 | 280.95 | -7.27 | 38.12 | 0.2014 | -847.0 | -655.0 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 12.82 | 280.80 | -7.42 | 36.69 | 0.2116 | -657.0 | -512.5 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 13.78 | 280.61 | -7.60 | 34.73 | 0.2266 | -839.0 | -697.0 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 11.67 | 280.68 | -7.54 | 40.74 | 0.1978 | -801.0 | -554.5 | |
| 0.00 | 4.36 | 0.00 | 2.20 | 11.33 | 280.53 | -7.69 | 42.46 | 0.1952 | -757.0 | -658.8 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 11.05 | 279.84 | -8.37 | 45.88 | 0.2000 | -877.0 | -722.8 | |
| 6.36 | 8.72 | 3.22 | 4.41 | 11.39 | 279.80 | -8.41 | 44.80 | 0.2045 | -1165.6 | -827.9 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 12.28 | 279.59 | -8.63 | 42.52 | 0.2179 | -757.0 | -650.8 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 10.16 | 279.62 | -8.60 | 50.07 | 0.1928 | -903.0 | -734.0 | |
| 19.17 | 35.70 | 9.72 | 18.10 | 11.45 | 279.17 | -9.04 | 46.63 | 0.2129 | -1193.4 | -769.4 | |
| 7.99 | 55.69 | 4.06 | 28.33 | 11.97 | 279.12 | -9.09 | 45.00 | 0.2196 | -1087.1 | -634.7 | |
| 5.36 | -15.00 | 2.72 | -15.00 | 11.17 | 279.15 | -9.07 | 47.69 | 0.2100 | -1155.9 | 999999 | |
| 1.36 | -15.00 | 0.69 | -15.00 | 11.05 | 278.90 | -9.32 | 48.89 | 0.2118 | -821.1 | 999999 | |
| 2.36 | -16.00 | 1.20 | -16.00 | 11.91 | 278.78 | -9.44 | 46.26 | 0.2231 | -1118.6 | 999999 | |
| 6.00 | -16.00 | 3.05 | -16.00 | 12.25 | 278.67 | -9.54 | 45.47 | 0.2283 | -1023.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 8.96 | 278.77 | -9.45 | 57.70 | 0.1926 | -936.0 | -694.2 | |
| 2.27 | -16.00 | 1.16 | -16.00 | 12.71 | 278.53 | -9.69 | 44.45 | 0.2355 | -856.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 15.72 | 278.37 | -9.85 | 36.94 | 0.2752 | -818.0 | -555.2 | |
| 5.00 | 18.99 | 2.54 | 9.64 | 11.14 | 278.43 | -9.79 | 49.95 | 0.2189 | -989.1 | -735.3 | |
| 0.00 | 8.36 | 0.00 | 4.25 | 11.72 | 278.25 | -9.97 | 48.43 | 0.2276 | -675.0 | -641.1 | |
| 1.27 | 3.45 | 0.65 | 1.76 | 11.35 | 278.04 | -10.18 | 50.27 | 0.2263 | -946.4 | -647.2 | |
| 0.00 | 2.45 | 0.00 | 1.25 | 11.13 | 278.05 | -10.17 | 51.01 | 0.2239 | -444.0 | -383.3 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 9.04 | 278.08 | -10.14 | 59.09 | 0.2035 | -747.0 | -550.1 | |
| 0.00 | 4.00 | 0.00 | 2.03 | 11.28 | 277.76 | -10.46 | 51.24 | 0.2293 | -425.0 | -405.7 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 15.53 | 277.48 | -10.74 | 39.76 | 0.2819 | -739.0 | -579.7 | |
| 0.00 | 2.18 | 0.00 | 1.11 | 11.19 | 277.64 | -10.58 | 51.89 | 0.2300 | -722.0 | -518.9 | |
| 0.00 | 2.27 | 0.00 | 1.16 | 11.06 | 276.75 | -11.46 | 54.48 | 0.2407 | -639.0 | -462.0 | |
| 1.54 | 3.63 | 0.79 | 1.86 | 12.23 | 276.45 | -11.77 | 51.34 | 0.2563 | 1145.8 | 865.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 12.47 | 275.96 | -12.25 | 51.70 | 0.2653 | 771.0 | 634.5 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 12.16 | 275.72 | -12.50 | 53.17 | 0.2654 | 1067.0 | 863.1 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 12.47 | 275.55 | -12.67 | 52.61 | 0.2708 | 931.0 | 699.4 | |
| 0.64 | 6.09 | 0.33 | 3.14 | 13.21 | 275.29 | -12.93 | 50.99 | 0.2816 | 1120.1 | 843.1 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 14.63 | 275.11 | -13.11 | 47.52 | 0.2989 | -865.0 | -597.9 | |
| 10.36 | 32.25 | 5.33 | 16.58 | 11.90 | 275.09 | -13.12 | 55.25 | 0.2716 | 1188.2 | 856.8 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 13.17 | 274.97 | -13.25 | 51.75 | 0.2855 | 973.0 | 745.7 | |
| 1.00 | 9.27 | 0.52 | 4.79 | 13.26 | 274.77 | -13.45 | 51.89 | 0.2890 | 1174.8 | 810.2 | |
| 1.09 | 3.91 | 0.56 | 2.02 | 12.36 | 274.72 | -13.50 | 54.58 | 0.2810 | 996.4 | 745.4 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 16.09 | 274.43 | -13.79 | 45.38 | 0.3231 | -909.0 | -662.1 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 13.97 | 274.53 | -13.68 | 50.42 | 0.2992 | 933.0 | 819.4 | |
| 0.00 | 4.18 | 0.00 | 2.16 | 13.10 | 274.39 | -13.83 | 53.08 | 0.2924 | 733.0 | 742.6 | |
| 2.82 | 4.45 | 1.46 | 2.31 | 13.50 | 274.30 | -13.92 | 52.13 | 0.2975 | 1145.9 | 850.4 | |
| 0.00 | 2.09 | 0.00 | 1.09 | 13.72 | 274.19 | -14.02 | 51.76 | 0.3011 | 967.0 | 766.5 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 13.13 | 274.10 | -14.12 | 53.55 | 0.2966 | 815.0 | 652.0 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 14.00 | 274.01 | -14.20 | 51.36 | 0.3061 | 834.0 | 704.1 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 13.34 | 273.96 | -14.26 | 53.22 | 0.3006 | 882.0 | 670.8 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 14.09 | 273.68 | -14.53 | 51.74 | 0.3113 | 843.0 | 754.0 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 14.27 | 273.54 | -14.68 | 51.52 | 0.3150 | 918.0 | 858.7 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 13.80 | 273.51 | -14.71 | 52.80 | 0.3109 | 650.0 | 594.9 | |
| 1.73 | 4.09 | 0.90 | 2.14 | 14.27 | 273.09 | -15.13 | 52.35 | 0.3209 | 1036.5 | 887.0 | |
| 0.00 | 2.00 | 0.00 | 1.05 | 15.35 | 272.81 | -15.40 | 50.15 | 0.3351 | 1113.0 | 838.8 | |
| 0.64 | 1.82 | 0.33 | 0.96 | 15.79 | 272.75 | -15.47 | 49.24 | 0.3403 | 1000.3 | 885.5 | |
| 0.00 | 4.72 | 0.00 | 2.48 | 14.63 | 272.80 | -15.42 | 51.92 | 0.3282 | 681.0 | 654.7 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 14.97 | 272.42 | -15.80 | 51.75 | 0.3364 | 815.0 | 657.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
