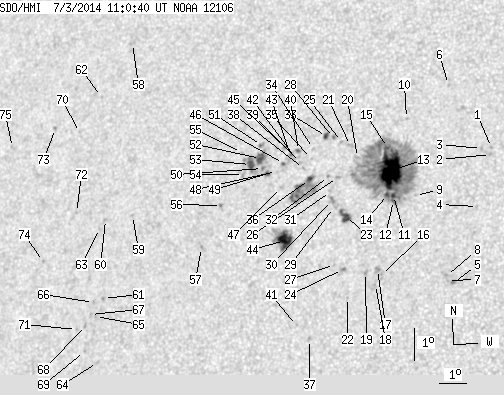

SDO HMI 2014-07-03 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.85 | 488.80 | 51.58 | 281.22 | 15.36 | 260.06 | -28.16 | 64.22 | 0.5069 | -230.8 | -81.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.70 | 16.60 | 265.12 | -23.09 | 57.73 | 0.4464 | -836.0 | -624.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 16.38 | 265.12 | -23.10 | 58.17 | 0.4449 | -901.0 | -718.3 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 16.57 | 264.78 | -23.44 | 58.15 | 0.4506 | -947.0 | -683.0 | |
| 0.00 | 1.64 | 0.00 | 0.90 | 14.75 | 264.86 | -23.36 | 61.75 | 0.4370 | -608.0 | -500.2 | |
| 0.00 | 2.18 | 0.00 | 1.20 | 12.38 | 264.29 | -23.93 | 67.32 | 0.4312 | -966.0 | -827.8 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 18.55 | 263.34 | -24.87 | 55.81 | 0.4840 | -718.0 | -538.3 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 12.44 | 264.08 | -24.14 | 67.35 | 0.4345 | -766.0 | -673.4 | |
| 0.00 | 1.73 | 0.00 | 0.95 | 12.59 | 264.03 | -24.19 | 67.05 | 0.4361 | -801.0 | -678.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 15.05 | 262.68 | -25.54 | 63.03 | 0.4691 | -208.0 | -224.0 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 17.45 | 262.02 | -26.20 | 59.02 | 0.4932 | -748.0 | -546.1 | |
| 2.09 | 278.19 | 1.18 | 157.78 | 15.03 | 261.91 | -26.31 | 63.66 | 0.4796 | -1194.4 | -344.7 | |
| 0.27 | -11.00 | 0.15 | -11.00 | 14.88 | 261.93 | -26.29 | 63.95 | 0.4784 | -928.0 | 999999 | |
| 44.43 | -11.00 | 25.17 | -11.00 | 15.81 | 261.73 | -26.49 | 62.31 | 0.4866 | -1253.8 | 999999 | |
| 1.73 | -11.00 | 0.98 | -11.00 | 15.06 | 261.69 | -26.53 | 63.78 | 0.4827 | -916.2 | 999999 | |
| 0.73 | -11.00 | 0.41 | -11.00 | 16.53 | 261.48 | -26.73 | 61.16 | 0.4943 | -441.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 12.58 | 261.78 | -26.44 | 68.65 | 0.4684 | -861.0 | -687.9 | |
| 0.00 | 3.36 | 0.00 | 1.89 | 12.73 | 261.62 | -26.59 | 68.44 | 0.4714 | -888.0 | -745.9 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 12.26 | 261.61 | -26.61 | 69.40 | 0.4695 | -674.0 | -553.0 | |
| 0.00 | 1.64 | 0.00 | 0.92 | 12.63 | 261.22 | -27.00 | 68.90 | 0.4768 | -702.0 | -655.3 | |
| 0.00 | 2.00 | 0.00 | 1.15 | 16.19 | 260.46 | -27.76 | 62.57 | 0.5059 | 300.0 | 275.0 | |
| 0.00 | 3.00 | 0.00 | 1.73 | 16.56 | 260.15 | -28.07 | 62.12 | 0.5122 | 571.0 | 460.8 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 11.84 | 260.67 | -27.55 | 70.79 | 0.4813 | -644.0 | -493.3 | |
| 6.36 | 9.45 | 3.63 | 5.39 | 14.34 | 260.30 | -27.92 | 66.13 | 0.4981 | -857.6 | -617.4 | |
| 0.00 | 2.73 | 0.00 | 1.55 | 12.70 | 260.40 | -27.82 | 69.24 | 0.4889 | -871.0 | -681.6 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 16.68 | 259.81 | -28.41 | 62.16 | 0.5175 | 816.0 | 611.6 | |
| 0.00 | 1.91 | 0.00 | 1.10 | 15.55 | 259.84 | -28.38 | 64.18 | 0.5107 | 775.0 | 673.3 | |
| 0.00 | 0.55 | 0.00 | 0.31 | 12.85 | 260.10 | -28.12 | 69.13 | 0.4938 | -572.0 | -469.0 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 16.80 | 259.50 | -28.72 | 62.17 | 0.5222 | 882.0 | 749.9 | |
| 0.00 | 0.64 | 0.00 | 0.36 | 14.61 | 259.83 | -28.39 | 65.92 | 0.5059 | 97.0 | 110.3 | |
| 0.00 | 4.00 | 0.00 | 2.30 | 14.83 | 259.73 | -28.49 | 65.59 | 0.5084 | -195.0 | -212.0 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 15.11 | 259.65 | -28.57 | 65.12 | 0.5109 | -587.0 | -452.4 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 15.57 | 259.51 | -28.71 | 64.36 | 0.5153 | 798.0 | 734.8 | |
| 1.91 | 3.45 | 1.11 | 2.01 | 16.82 | 259.24 | -28.98 | 62.31 | 0.5258 | 743.6 | 548.4 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 16.43 | 258.83 | -29.39 | 63.27 | 0.5291 | 626.0 | 451.5 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 16.12 | 258.81 | -29.41 | 63.84 | 0.5276 | 674.0 | 475.9 | |
| 2.54 | 41.61 | 1.48 | 24.17 | 15.46 | 258.84 | -29.38 | 65.00 | 0.5238 | 601.8 | 668.0 | |
| 0.00 | 2.00 | 0.00 | 1.14 | 10.52 | 259.47 | -28.75 | 74.03 | 0.4939 | -555.0 | -449.9 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 15.80 | 258.57 | -29.65 | 64.57 | 0.5292 | 724.0 | 616.2 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 15.98 | 258.43 | -29.79 | 64.33 | 0.5320 | 833.0 | 724.9 | |
| 0.73 | 2.09 | 0.43 | 1.22 | 16.36 | 258.29 | -29.93 | 63.76 | 0.5358 | 778.5 | 619.1 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 10.94 | 258.96 | -29.26 | 73.42 | 0.5026 | -629.0 | -521.4 | |
| 0.00 | 2.54 | 0.00 | 1.49 | 16.14 | 258.22 | -30.00 | 64.19 | 0.5356 | 728.0 | 671.3 | |
| 0.36 | 1.36 | 0.21 | 0.80 | 16.22 | 258.02 | -30.20 | 64.16 | 0.5387 | 732.8 | 603.7 | |
| 16.08 | 31.62 | 9.34 | 18.37 | 13.55 | 258.21 | -30.01 | 68.85 | 0.5233 | -984.4 | -388.8 | |
| 0.00 | 0.73 | 0.00 | 0.43 | 16.44 | 257.76 | -30.46 | 63.96 | 0.5432 | 746.0 | 654.2 | |
| 0.55 | 4.72 | 0.32 | 2.77 | 15.94 | 257.81 | -30.41 | 64.80 | 0.5400 | 921.5 | 791.8 | |
| 0.00 | 2.00 | 0.00 | 1.17 | 15.19 | 257.86 | -30.36 | 66.09 | 0.5356 | 814.0 | 652.4 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 15.68 | 257.60 | -30.62 | 65.37 | 0.5416 | 861.0 | 739.8 | |
| 1.54 | 2.73 | 0.91 | 1.61 | 15.61 | 257.27 | -30.94 | 65.69 | 0.5455 | 998.4 | 830.4 | |
| 0.00 | 2.00 | 0.00 | 1.18 | 15.76 | 257.06 | -31.15 | 65.55 | 0.5490 | 813.0 | 721.9 | |
| 0.00 | 2.91 | 0.00 | 1.73 | 16.48 | 256.90 | -31.32 | 64.41 | 0.5547 | 748.0 | 537.7 | |
| 5.81 | 23.89 | 3.45 | 14.19 | 16.07 | 256.94 | -31.28 | 65.09 | 0.5522 | 939.6 | 570.0 | |
| 4.72 | -52.00 | 2.81 | -52.00 | 15.87 | 256.60 | -31.62 | 65.62 | 0.5558 | 855.3 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.79 | 15.56 | 256.39 | -31.82 | 66.28 | 0.5570 | 735.0 | 576.9 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 16.24 | 256.20 | -32.02 | 65.23 | 0.5628 | 640.0 | 489.4 | |
| 0.00 | 2.00 | 0.00 | 1.19 | 14.57 | 255.74 | -32.48 | 68.31 | 0.5615 | 858.0 | 706.8 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 13.25 | 255.20 | -33.02 | 70.83 | 0.5637 | -678.0 | -576.6 | |
| 0.00 | 2.45 | 0.00 | 1.58 | 19.55 | 251.22 | -37.00 | 62.67 | 0.6407 | 97.0 | 216.0 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 14.16 | 252.42 | -35.80 | 70.44 | 0.6041 | 724.0 | 615.9 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 14.01 | 251.39 | -36.83 | 71.07 | 0.6171 | 689.0 | 503.3 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 11.57 | 251.72 | -36.50 | 74.89 | 0.6058 | 801.0 | 635.8 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 17.84 | 250.40 | -37.82 | 65.59 | 0.6433 | 581.0 | 412.5 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 13.72 | 251.21 | -37.01 | 71.59 | 0.6186 | 557.0 | 472.2 | |
| 0.00 | 1.54 | 0.00 | 0.96 | 9.60 | 251.76 | -36.46 | 78.12 | 0.6010 | 776.0 | 605.0 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 11.00 | 251.49 | -36.72 | 75.87 | 0.6075 | 723.0 | 612.3 | |
| 0.00 | 1.36 | 0.00 | 0.85 | 11.43 | 251.35 | -36.86 | 75.21 | 0.6104 | 576.0 | 468.1 | |
| 0.00 | 0.73 | 0.00 | 0.45 | 11.06 | 251.29 | -36.93 | 75.83 | 0.6103 | 632.0 | 558.2 | |
| 0.00 | 1.64 | 0.00 | 1.02 | 10.72 | 251.15 | -37.07 | 76.43 | 0.6115 | 685.0 | 582.8 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 9.92 | 251.22 | -37.00 | 77.71 | 0.6090 | 649.0 | 544.9 | |
| 0.00 | 1.18 | 0.00 | 0.76 | 16.68 | 249.78 | -38.43 | 67.57 | 0.6464 | 470.0 | 337.7 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 10.58 | 250.81 | -37.40 | 76.72 | 0.6157 | 465.0 | 315.9 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 14.19 | 250.20 | -38.01 | 71.21 | 0.6329 | 678.0 | 568.8 | |
| 0.00 | 1.27 | 0.00 | 0.84 | 16.77 | 248.78 | -39.44 | 67.82 | 0.6591 | 620.0 | 555.1 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 12.63 | 249.17 | -39.05 | 73.93 | 0.6420 | 545.0 | 458.6 | |
| 0.00 | 1.82 | 0.00 | 1.22 | 16.12 | 247.14 | -41.07 | 69.35 | 0.6768 | 517.0 | 443.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
