SDO HMI 2014-07-03 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.70 | 237.75 | 36.73 | 178.72 | -7.99 | 240.73 | -47.49 | 103.51 | 0.7527 | 330.9 | 135.8 | |
|
previous
or next observation for the same group /

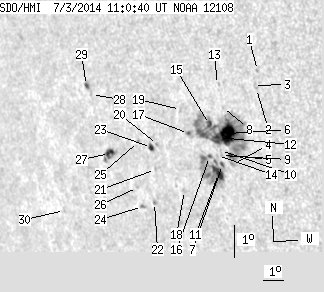

back to the solar disc SDO HMI 2014-07-03 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.97 | -5.57 | 243.27 | -44.95 | 100.89 | 0.7183 | 549.0 | 496.5 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -6.13 | 243.17 | -45.05 | 101.64 | 0.7207 | 631.0 | 542.4 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -6.05 | 243.04 | -45.17 | 101.49 | 0.7220 | 445.0 | 467.0 | |
| 0.00 | 2.45 | 0.00 | 1.81 | -8.54 | 241.78 | -46.44 | 104.50 | 0.7425 | 309.0 | 317.4 | |
| 1.73 | 136.19 | 1.27 | 100.46 | -8.26 | 241.73 | -46.48 | 104.12 | 0.7423 | 802.2 | 312.9 | |
| 20.99 | -5.00 | 15.43 | -5.00 | -7.58 | 241.70 | -46.52 | 103.21 | 0.7411 | 938.9 | 999999 | |
| 1.09 | 55.24 | 0.81 | 41.48 | -8.56 | 241.32 | -46.89 | 104.40 | 0.7476 | 714.3 | 12.7 | |
| 0.00 | 0.64 | 0.00 | 0.47 | -6.78 | 241.58 | -46.63 | 102.12 | 0.7406 | 519.0 | 508.0 | |
| 0.00 | 1.00 | 0.00 | 0.74 | -8.28 | 241.32 | -46.89 | 104.03 | 0.7470 | 629.0 | 560.5 | |
| 0.00 | 0.82 | 0.00 | 0.61 | -8.13 | 241.30 | -46.91 | 103.83 | 0.7468 | 594.0 | 485.7 | |
| 9.27 | -7.00 | 6.93 | -7.00 | -8.85 | 241.09 | -47.12 | 104.72 | 0.7509 | 681.0 | 999999 | |
| 2.45 | -5.00 | 1.82 | -5.00 | -7.73 | 241.23 | -46.99 | 103.28 | 0.7468 | 558.7 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.27 | -6.08 | 241.45 | -46.77 | 101.15 | 0.7407 | 523.0 | 561.5 | |
| 0.00 | 1.09 | 0.00 | 0.81 | -8.29 | 241.14 | -47.08 | 103.99 | 0.7490 | 468.0 | 437.0 | |
| 3.00 | -5.00 | 2.23 | -5.00 | -7.33 | 240.92 | -47.30 | 102.69 | 0.7494 | 413.6 | 999999 | |
| 0.82 | -7.00 | 0.61 | -7.00 | -8.33 | 240.77 | -47.45 | 103.95 | 0.7533 | 212.7 | 999999 | |
| 0.73 | 4.00 | 0.55 | 3.04 | -7.65 | 239.91 | -48.31 | 102.85 | 0.7614 | -704.5 | -531.4 | |
| 0.00 | 2.27 | 0.00 | 1.76 | -9.45 | 239.41 | -48.81 | 105.02 | 0.7708 | 206.0 | 269.2 | |
| 0.00 | 1.54 | 0.00 | 1.18 | -6.92 | 239.64 | -48.57 | 101.84 | 0.7628 | -348.0 | -380.1 | |
| 0.00 | 1.18 | 0.00 | 0.93 | -8.06 | 238.38 | -49.84 | 103.00 | 0.7788 | -692.0 | -655.1 | |
| 0.00 | 1.36 | 0.00 | 1.08 | -8.85 | 238.14 | -50.08 | 103.94 | 0.7830 | -470.0 | -350.4 | |
| 0.00 | 1.18 | 0.00 | 0.95 | -9.88 | 237.88 | -50.33 | 105.17 | 0.7880 | -559.0 | -513.0 | |
| 2.45 | 3.91 | 1.94 | 3.09 | -8.16 | 238.07 | -50.15 | 103.06 | 0.7823 | -578.1 | -425.5 | |
| 0.00 | 2.00 | 0.00 | 1.62 | -10.04 | 237.26 | -50.96 | 105.20 | 0.7947 | -637.0 | -598.0 | |
| 0.00 | 1.18 | 0.00 | 0.95 | -8.00 | 237.47 | -50.75 | 102.72 | 0.7884 | -398.0 | -365.6 | |
| 0.00 | 1.00 | 0.00 | 0.81 | -9.45 | 237.14 | -51.08 | 104.44 | 0.7947 | -276.0 | -238.3 | |
| 4.72 | 11.99 | 3.92 | 9.96 | -8.44 | 235.94 | -52.27 | 102.92 | 0.8049 | -713.4 | -474.8 | |
| 0.00 | 1.36 | 0.00 | 1.14 | -6.64 | 235.35 | -52.87 | 100.59 | 0.8079 | -332.0 | -411.9 | |
| 1.45 | 2.63 | 1.22 | 2.21 | -6.37 | 235.13 | -53.09 | 100.22 | 0.8096 | -713.8 | -557.5 | |
| 0.00 | 1.36 | 0.00 | 1.22 | -10.34 | 233.15 | -55.07 | 104.59 | 0.8355 | -417.0 | -428.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
