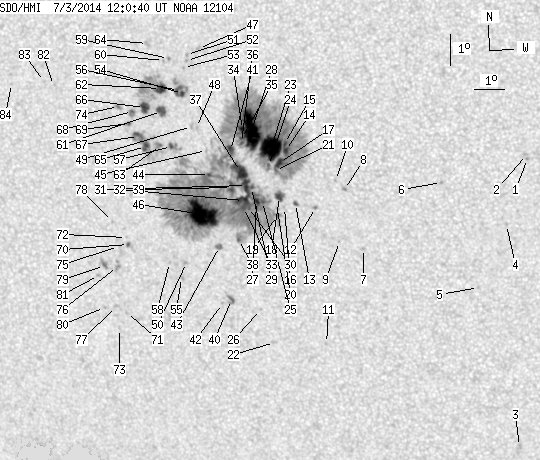

SDO HMI 2014-07-03 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 261.54 | 1336.17 | 141.90 | 726.15 | -11.23 | 268.34 | -19.33 | 127.04 | 0.4089 | 479.1 | 138.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.71 | -10.75 | 277.86 | -9.81 | 145.00 | 0.2930 | 1010.0 | 810.3 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -10.63 | 277.83 | -9.83 | 144.67 | 0.2916 | 841.0 | 665.1 | |
| 0.00 | 3.00 | 0.00 | 1.64 | -20.03 | 277.13 | -10.54 | 156.34 | 0.4300 | 843.0 | 697.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -12.84 | 277.11 | -10.55 | 146.91 | 0.3285 | 895.0 | 624.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -14.86 | 276.12 | -11.55 | 147.82 | 0.3649 | 719.0 | 553.3 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -11.53 | 275.11 | -12.56 | 139.74 | 0.3312 | 855.0 | 691.1 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -13.65 | 272.47 | -15.19 | 138.39 | 0.3851 | 881.0 | 585.4 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -11.79 | 271.98 | -15.69 | 133.97 | 0.3694 | 1012.0 | 860.6 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -13.44 | 271.71 | -15.96 | 136.62 | 0.3910 | 578.0 | 551.8 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -11.51 | 271.70 | -15.96 | 132.91 | 0.3696 | 823.0 | 545.2 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -16.73 | 271.02 | -16.65 | 140.87 | 0.4366 | 666.0 | 538.7 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -12.37 | 271.00 | -16.67 | 133.40 | 0.3872 | 984.0 | 804.4 | |
| 0.82 | 2.54 | 0.44 | 1.37 | -12.26 | 270.35 | -17.31 | 132.10 | 0.3936 | 927.8 | 762.4 | |
| 3.72 | 1098.67 | 1.99 | 595.99 | -10.59 | 270.14 | -17.53 | 128.39 | 0.3794 | 1235.8 | 106.6 | |
| 1.82 | -14.00 | 0.97 | -14.00 | -10.37 | 270.12 | -17.55 | 127.89 | 0.3775 | 1397.3 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -12.39 | 269.98 | -17.68 | 131.76 | 0.3994 | 673.0 | 573.0 | |
| 6.00 | -14.00 | 3.22 | -14.00 | -10.97 | 269.92 | -17.75 | 128.84 | 0.3859 | 1066.6 | 999999 | |
| 5.36 | 8.63 | 2.89 | 4.66 | -12.04 | 269.85 | -17.82 | 130.87 | 0.3975 | 1066.7 | 844.0 | |
| 0.82 | -14.00 | 0.44 | -14.00 | -12.65 | 269.74 | -17.93 | 131.86 | 0.4050 | 919.0 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -12.43 | 269.75 | -17.92 | 131.46 | 0.4026 | 773.0 | 725.4 | |
| 1.91 | -14.00 | 1.03 | -14.00 | -11.23 | 269.77 | -17.90 | 129.13 | 0.3902 | 832.5 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.36 | -16.72 | 269.28 | -18.39 | 138.10 | 0.4543 | 344.0 | 276.4 | |
| 36.79 | -14.00 | 19.73 | -14.00 | -10.51 | 269.69 | -17.98 | 127.51 | 0.3843 | 1402.0 | 999999 | |
| 0.91 | -14.00 | 0.49 | -14.00 | -11.07 | 269.55 | -18.12 | 128.48 | 0.3915 | 684.0 | 999999 | |
| 3.18 | -14.00 | 1.72 | -14.00 | -12.21 | 269.28 | -18.39 | 130.32 | 0.4062 | 955.7 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -15.66 | 268.92 | -18.75 | 135.88 | 0.4465 | 670.0 | 565.9 | |
| 3.18 | -14.00 | 1.72 | -14.00 | -12.22 | 269.08 | -18.59 | 130.03 | 0.4086 | 947.8 | 999999 | |
| 40.97 | -14.00 | 22.00 | -14.00 | -9.98 | 269.07 | -18.60 | 125.48 | 0.3874 | 1376.4 | 999999 | |
| 1.64 | -14.00 | 0.89 | -14.00 | -11.78 | 268.95 | -18.72 | 128.98 | 0.4059 | 1002.4 | 999999 | |
| 2.63 | -14.00 | 1.43 | -14.00 | -12.41 | 268.80 | -18.87 | 129.99 | 0.4139 | 209.6 | 999999 | |
| 7.81 | -14.00 | 4.23 | -14.00 | -11.72 | 268.79 | -18.88 | 128.62 | 0.4073 | 854.3 | 999999 | |
| 12.45 | -14.00 | 6.77 | -14.00 | -12.19 | 268.65 | -19.02 | 129.35 | 0.4136 | 285.1 | 999999 | |
| 4.09 | -14.00 | 2.23 | -14.00 | -12.41 | 268.63 | -19.03 | 129.75 | 0.4160 | -459.6 | 999999 | |
| 3.27 | -14.00 | 1.76 | -14.00 | -9.96 | 268.77 | -18.90 | 125.00 | 0.3910 | 1106.5 | 999999 | |
| 0.27 | -14.00 | 0.15 | -14.00 | -10.24 | 268.72 | -18.95 | 125.53 | 0.3943 | 810.7 | 999999 | |
| 1.45 | -14.00 | 0.78 | -14.00 | -10.37 | 268.71 | -18.95 | 125.78 | 0.3955 | 571.3 | 999999 | |
| 16.99 | -14.00 | 9.20 | -14.00 | -11.28 | 268.62 | -19.05 | 127.51 | 0.4052 | 997.7 | 999999 | |
| 0.91 | -14.00 | 0.50 | -14.00 | -13.43 | 268.39 | -19.28 | 131.27 | 0.4291 | -1075.5 | 999999 | |
| 5.63 | -14.00 | 3.06 | -14.00 | -11.79 | 268.29 | -19.38 | 128.05 | 0.4142 | 74.2 | 999999 | |
| 1.45 | 5.27 | 0.81 | 2.93 | -15.36 | 267.97 | -19.69 | 134.00 | 0.4536 | 817.9 | 578.5 | |
| 5.54 | -14.00 | 3.00 | -14.00 | -10.62 | 268.34 | -19.33 | 125.79 | 0.4028 | 952.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -15.49 | 267.66 | -20.01 | 133.78 | 0.4586 | 617.0 | 415.6 | |
| 1.64 | 4.27 | 0.90 | 2.35 | -13.67 | 267.73 | -19.94 | 130.77 | 0.4392 | -1100.6 | -837.1 | |
| 1.45 | -14.00 | 0.79 | -14.00 | -11.39 | 267.59 | -20.08 | 126.31 | 0.4194 | 694.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -10.64 | 267.54 | -20.12 | 124.74 | 0.4132 | -385.0 | -339.1 | |
| 47.60 | -14.00 | 26.17 | -14.00 | -12.66 | 267.25 | -20.41 | 128.28 | 0.4353 | -1234.3 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -7.46 | 267.47 | -20.20 | 117.77 | 0.3885 | 945.0 | 711.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -9.92 | 267.26 | -20.41 | 122.91 | 0.4108 | 831.0 | 600.0 | |
| 0.00 | 2.45 | 0.00 | 1.33 | -9.89 | 267.10 | -20.57 | 122.65 | 0.4128 | 847.0 | 678.2 | |
| 0.00 | 1.64 | 0.00 | 0.91 | -14.20 | 266.57 | -21.09 | 130.13 | 0.4582 | -807.0 | -651.8 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -7.65 | 267.07 | -20.60 | 117.75 | 0.3957 | 778.0 | 654.2 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -7.84 | 267.06 | -20.61 | 118.16 | 0.3972 | 910.0 | 737.9 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -8.06 | 266.95 | -20.72 | 118.52 | 0.4004 | 836.0 | 686.8 | |
| 2.00 | 16.99 | 1.08 | 9.21 | -8.87 | 266.87 | -20.80 | 120.20 | 0.4077 | 1122.3 | 830.2 | |
| 0.00 | 2.09 | 0.00 | 1.17 | -14.68 | 266.36 | -21.31 | 130.67 | 0.4654 | -790.0 | -641.7 | |
| 3.72 | -54.00 | 2.02 | -54.00 | -8.78 | 266.74 | -20.93 | 119.85 | 0.4087 | 1001.7 | 999999 | |
| 1.91 | 8.90 | 1.04 | 4.87 | -10.53 | 266.39 | -21.28 | 123.08 | 0.4275 | 774.6 | 541.8 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -14.21 | 266.00 | -21.67 | 129.41 | 0.4652 | -769.0 | -611.8 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -7.79 | 266.47 | -21.20 | 117.38 | 0.4052 | 863.0 | 772.9 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -7.85 | 266.30 | -21.37 | 117.34 | 0.4081 | 719.0 | 642.6 | |
| 5.72 | 8.63 | 3.13 | 4.71 | -9.44 | 266.13 | -21.53 | 120.56 | 0.4222 | 1072.5 | 763.3 | |
| 7.54 | 59.59 | 4.11 | 32.54 | -8.73 | 266.15 | -21.52 | 119.06 | 0.4165 | 985.0 | 330.6 | |
| 0.55 | 41.70 | 0.30 | 22.96 | -10.51 | 266.03 | -21.64 | 122.59 | 0.4322 | -586.5 | 248.4 | |
| 0.00 | 2.82 | 0.00 | 1.53 | -7.33 | 265.80 | -21.87 | 115.67 | 0.4116 | 663.0 | 546.5 | |
| 4.45 | -63.00 | 2.45 | -63.00 | -10.55 | 265.52 | -22.15 | 122.09 | 0.4392 | 752.8 | 999999 | |
| 6.72 | -62.00 | 3.68 | -62.00 | -9.33 | 265.58 | -22.09 | 119.69 | 0.4290 | 923.3 | 999999 | |
| 4.81 | -63.00 | 2.65 | -63.00 | -10.24 | 265.31 | -22.36 | 121.24 | 0.4396 | 779.4 | 999999 | |
| 1.00 | 4.72 | 0.55 | 2.60 | -9.46 | 265.17 | -22.50 | 119.52 | 0.4356 | 967.3 | 739.1 | |
| 0.64 | 3.00 | 0.35 | 1.65 | -9.84 | 265.04 | -22.63 | 120.14 | 0.4402 | 861.4 | 708.2 | |
| 0.82 | 3.09 | 0.46 | 1.74 | -13.66 | 264.66 | -23.01 | 126.84 | 0.4764 | -905.8 | -742.4 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -15.85 | 264.34 | -23.32 | 130.10 | 0.4999 | -758.0 | -629.4 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -13.44 | 264.62 | -23.05 | 126.40 | 0.4751 | -853.0 | -620.6 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -16.37 | 264.03 | -23.63 | 130.56 | 0.5083 | -525.0 | -469.7 | |
| 0.36 | 2.82 | 0.20 | 1.55 | -9.32 | 264.71 | -22.96 | 118.74 | 0.4408 | 817.8 | 667.2 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -13.73 | 264.31 | -23.35 | 126.56 | 0.4814 | -614.0 | -604.7 | |
| 0.00 | 5.09 | 0.00 | 2.88 | -14.37 | 264.21 | -23.46 | 127.53 | 0.4882 | -855.0 | -738.6 | |
| 0.00 | 2.36 | 0.00 | 1.35 | -15.66 | 264.02 | -23.65 | 129.43 | 0.5020 | -641.0 | -549.0 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -12.94 | 264.19 | -23.48 | 125.04 | 0.4761 | -589.0 | -502.6 | |
| 1.00 | 5.45 | 0.57 | 3.10 | -14.35 | 263.76 | -23.90 | 126.99 | 0.4934 | -861.1 | -685.7 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -15.70 | 263.60 | -24.07 | 129.01 | 0.5073 | -644.0 | -518.6 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -14.68 | 263.52 | -24.15 | 127.26 | 0.4992 | -703.0 | -553.5 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -8.71 | 262.55 | -25.12 | 115.47 | 0.4666 | -655.0 | -626.0 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -8.59 | 262.25 | -25.41 | 114.99 | 0.4700 | -461.0 | -447.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -8.68 | 261.11 | -26.55 | 114.22 | 0.4865 | -650.0 | -526.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
