SDO HMI 2014-07-03 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 148.54 | 782.62 | 92.13 | 487.33 | -19.56 | 257.81 | -29.86 | 129.05 | 0.6060 | 479.9 | 200.5 | |
|
previous
or next observation for the same group /

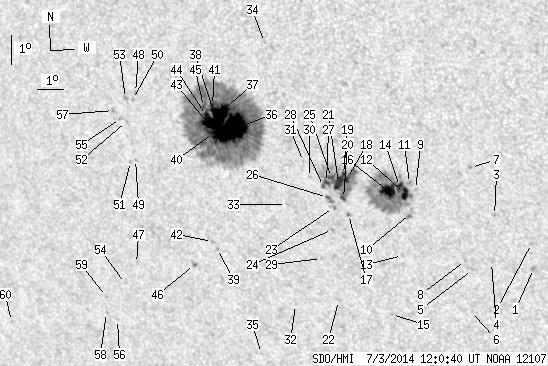

back to the solar disc SDO HMI 2014-07-03 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 1.29 | -23.40 | 266.81 | -20.86 | 143.60 | 0.5528 | 661.0 | 514.6 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -22.55 | 266.87 | -20.79 | 142.67 | 0.5428 | 808.0 | 634.4 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -21.63 | 265.71 | -21.95 | 140.06 | 0.5434 | 772.0 | 661.8 | |
| 0.00 | 0.55 | 0.00 | 0.33 | -23.23 | 265.34 | -22.33 | 141.57 | 0.5639 | 709.0 | 574.3 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -23.48 | 264.61 | -23.06 | 141.00 | 0.5731 | 485.0 | 443.9 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -24.93 | 264.29 | -23.38 | 142.33 | 0.5911 | 653.0 | 528.6 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -20.04 | 265.12 | -22.55 | 137.23 | 0.5326 | 828.0 | 770.9 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -23.18 | 264.41 | -23.26 | 140.41 | 0.5718 | 650.0 | 509.8 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -20.82 | 263.04 | -24.63 | 135.84 | 0.5613 | 641.0 | 423.4 | |
| 0.00 | 5.27 | 0.00 | 3.18 | -21.63 | 262.71 | -24.96 | 136.54 | 0.5724 | 814.0 | 557.9 | |
| 0.00 | 2.63 | 0.00 | 1.57 | -20.62 | 262.86 | -24.81 | 135.38 | 0.5612 | 964.0 | 745.9 | |
| 6.72 | 126.64 | 4.04 | 76.41 | -20.96 | 262.61 | -25.05 | 135.56 | 0.5669 | 992.5 | 209.0 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -23.06 | 262.14 | -25.53 | 137.73 | 0.5918 | -579.0 | -444.3 | |
| 4.18 | -12.00 | 2.51 | -12.00 | -20.73 | 262.48 | -25.19 | 135.10 | 0.5661 | 1073.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -25.10 | 261.28 | -26.39 | 139.29 | 0.6193 | -727.0 | -541.2 | |
| 14.72 | -12.00 | 8.87 | -12.00 | -20.91 | 262.05 | -25.62 | 134.88 | 0.5722 | 916.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -21.72 | 260.42 | -27.24 | 134.26 | 0.5960 | -746.0 | -652.4 | |
| 3.27 | 75.58 | 1.99 | 46.18 | -20.54 | 260.59 | -27.08 | 132.87 | 0.5839 | -1016.4 | -490.8 | |
| 2.18 | -18.00 | 1.33 | -18.00 | -20.38 | 260.51 | -27.16 | 132.57 | 0.5833 | -1023.2 | 999999 | |
| 1.64 | -18.00 | 1.00 | -18.00 | -21.18 | 260.35 | -27.32 | 133.49 | 0.5920 | -565.9 | 999999 | |
| 9.36 | -18.00 | 5.72 | -18.00 | -20.65 | 260.27 | -27.40 | 132.70 | 0.5881 | -993.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -24.67 | 259.38 | -28.29 | 136.90 | 0.6326 | -647.0 | -443.5 | |
| 0.00 | 1.82 | 0.00 | 1.12 | -21.50 | 259.91 | -27.75 | 133.47 | 0.5992 | -836.0 | -667.5 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -22.24 | 259.72 | -27.95 | 134.24 | 0.6077 | -601.0 | -510.5 | |
| 2.36 | -18.00 | 1.45 | -18.00 | -20.49 | 260.05 | -27.62 | 132.27 | 0.5891 | -901.7 | 999999 | |
| 0.73 | 4.81 | 0.45 | 2.97 | -21.17 | 259.76 | -27.91 | 132.89 | 0.5979 | -715.6 | -640.2 | |
| 2.09 | -18.00 | 1.28 | -18.00 | -20.66 | 259.83 | -27.84 | 132.28 | 0.5928 | -777.4 | 999999 | |
| 0.73 | -18.00 | 0.45 | -18.00 | -20.80 | 259.69 | -27.98 | 132.33 | 0.5955 | -608.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -23.24 | 259.08 | -28.59 | 134.88 | 0.6228 | -619.0 | -591.5 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -20.51 | 259.23 | -28.44 | 131.51 | 0.5978 | -616.0 | -470.3 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -19.99 | 259.11 | -28.55 | 130.69 | 0.5946 | -353.0 | -381.1 | |
| 0.00 | 0.73 | 0.00 | 0.47 | -24.85 | 257.67 | -30.00 | 135.55 | 0.6500 | -627.0 | -485.2 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -21.44 | 258.17 | -29.50 | 131.75 | 0.6166 | 641.0 | 480.3 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -16.12 | 258.39 | -29.28 | 124.49 | 0.5722 | -544.0 | -311.4 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -26.61 | 255.82 | -31.85 | 136.00 | 0.6815 | -458.0 | -423.1 | |
| 55.32 | 520.72 | 34.63 | 326.87 | -19.00 | 256.67 | -31.00 | 127.16 | 0.6133 | 1243.0 | 339.2 | |
| 17.44 | -36.00 | 10.91 | -36.00 | -18.42 | 256.33 | -31.33 | 126.08 | 0.6127 | 1262.1 | 999999 | |
| 12.81 | -36.00 | 8.05 | -36.00 | -18.82 | 256.14 | -31.53 | 126.48 | 0.6178 | 1030.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -23.01 | 255.12 | -32.54 | 131.14 | 0.6598 | -683.0 | -588.3 | |
| 2.27 | -36.00 | 1.43 | -36.00 | -19.12 | 255.96 | -31.71 | 126.74 | 0.6220 | 721.0 | 999999 | |
| 0.82 | -36.00 | 0.51 | -36.00 | -18.23 | 256.07 | -31.60 | 125.61 | 0.6143 | 1030.4 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.07 | -22.78 | 254.99 | -32.68 | 130.74 | 0.6593 | -589.0 | -443.4 | |
| 8.36 | -36.00 | 5.27 | -36.00 | -18.79 | 255.76 | -31.90 | 126.14 | 0.6218 | 858.9 | 999999 | |
| 2.45 | -36.00 | 1.54 | -36.00 | -18.56 | 255.77 | -31.89 | 125.83 | 0.6200 | 884.2 | 999999 | |
| 0.73 | -36.00 | 0.46 | -36.00 | -18.27 | 255.72 | -31.95 | 125.39 | 0.6185 | 796.9 | 999999 | |
| 0.36 | 2.45 | 0.24 | 1.64 | -23.59 | 254.05 | -33.62 | 131.00 | 0.6746 | -774.2 | -645.5 | |
| 0.00 | 0.64 | 0.00 | 0.44 | -23.63 | 251.68 | -35.99 | 129.29 | 0.6979 | -607.0 | -491.4 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -17.89 | 253.19 | -34.47 | 122.97 | 0.6443 | -606.0 | -535.0 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -20.11 | 252.66 | -35.01 | 125.56 | 0.6645 | -667.0 | -597.5 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -18.12 | 253.02 | -34.64 | 123.17 | 0.6477 | -737.0 | -613.8 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -20.18 | 252.44 | -35.23 | 125.50 | 0.6673 | -520.0 | -413.2 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -18.86 | 252.61 | -35.05 | 123.87 | 0.6569 | -690.0 | -582.4 | |
| 0.00 | 2.09 | 0.00 | 1.36 | -18.10 | 252.75 | -34.91 | 122.95 | 0.6506 | -821.0 | -700.7 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -24.33 | 250.99 | -36.68 | 129.66 | 0.7093 | -600.0 | -453.4 | |
| 0.00 | 1.54 | 0.00 | 1.01 | -18.76 | 252.40 | -35.27 | 123.60 | 0.6587 | -734.0 | -644.3 | |
| 0.00 | 1.09 | 0.00 | 0.78 | -25.60 | 250.20 | -37.47 | 130.61 | 0.7250 | -251.0 | -186.3 | |
| 0.00 | 1.82 | 0.00 | 1.19 | -18.51 | 252.19 | -35.48 | 123.11 | 0.6594 | -576.0 | -537.4 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -25.37 | 249.81 | -37.85 | 130.09 | 0.7270 | -580.0 | -499.5 | |
| 0.00 | 1.18 | 0.00 | 0.84 | -24.81 | 250.02 | -37.65 | 129.57 | 0.7215 | -424.0 | -388.2 | |
| 0.00 | 1.36 | 0.00 | 1.05 | -25.84 | 245.41 | -42.26 | 127.92 | 0.7694 | -594.0 | -481.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
