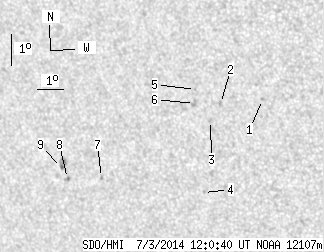

SDO HMI 2014-07-03 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.64 | 19.63 | 0.42 | 12.45 | -13.98 | 252.72 | -34.95 | 117.15 | 0.6258 | 303.8 | 18.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-03 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.59 | -12.40 | 257.77 | -29.89 | 118.15 | 0.5542 | 778.0 | 622.0 | |
| 0.00 | 1.64 | 0.00 | 0.99 | -12.57 | 256.22 | -31.44 | 117.28 | 0.5751 | 787.0 | 669.2 | |
| 0.00 | 1.73 | 0.00 | 1.05 | -13.12 | 255.78 | -31.89 | 117.84 | 0.5840 | 648.0 | 505.5 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -15.44 | 255.14 | -32.53 | 120.88 | 0.6062 | 622.0 | 511.1 | |
| 0.00 | 0.64 | 0.00 | 0.39 | -12.15 | 255.36 | -32.31 | 116.03 | 0.5836 | 591.0 | 557.7 | |
| 0.00 | 3.72 | 0.00 | 2.28 | -12.60 | 255.26 | -32.41 | 116.66 | 0.5874 | 669.0 | 527.3 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -15.08 | 251.29 | -36.38 | 117.81 | 0.6497 | 633.0 | 445.5 | |
| 0.00 | 2.27 | 0.00 | 1.50 | -15.15 | 249.92 | -37.74 | 117.12 | 0.6661 | -813.0 | -658.0 | |
| 0.64 | 6.27 | 0.42 | 4.15 | -14.81 | 249.76 | -37.91 | 116.54 | 0.6663 | -741.6 | -665.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
