SDO HMI 2014-07-03 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 118.74 | 556.88 | 166.76 | 771.25 | -7.81 | 219.43 | -68.23 | 99.63 | 0.9335 | 189.2 | 17.6 | |
|
previous
or next observation for the same group /

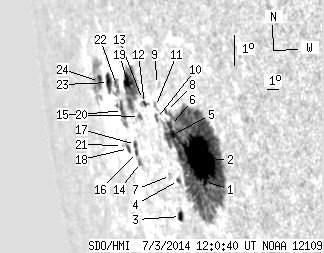

back to the solar disc SDO HMI 2014-07-03 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.64 | 407.44 | 2.06 | 519.32 | -9.05 | 221.69 | -65.98 | 101.22 | 0.9212 | 461.2 | 135.1 | |
| 70.13 | -1.00 | 88.40 | -1.00 | -8.34 | 221.63 | -66.03 | 100.44 | 0.9210 | 632.8 | 999999 | |
| 3.72 | 5.72 | 5.24 | 8.04 | -10.26 | 219.25 | -68.42 | 102.19 | 0.9376 | 61.5 | 76.2 | |
| 1.00 | 3.18 | 1.38 | 4.37 | -9.13 | 219.58 | -68.09 | 101.02 | 0.9348 | -343.3 | -264.6 | |
| 3.45 | -1.00 | 4.71 | -1.00 | -7.70 | 219.61 | -68.05 | 99.50 | 0.9335 | 72.1 | 999999 | |
| 2.91 | -1.00 | 3.99 | -1.00 | -7.42 | 219.54 | -68.13 | 99.20 | 0.9338 | 178.1 | 999999 | |
| 0.00 | 2.27 | 0.00 | 3.23 | -9.00 | 218.95 | -68.72 | 100.81 | 0.9384 | -552.0 | -452.0 | |
| 0.64 | -1.00 | 0.88 | -1.00 | -7.00 | 219.34 | -68.33 | 98.73 | 0.9347 | 93.1 | 999999 | |
| 0.00 | 0.73 | 0.00 | 1.02 | -6.19 | 218.82 | -68.85 | 97.81 | 0.9374 | -516.0 | -452.0 | |
| 1.18 | 3.00 | 1.70 | 4.32 | -7.26 | 218.39 | -69.27 | 98.90 | 0.9406 | -330.5 | -256.2 | |
| 0.00 | 3.36 | 0.00 | 4.82 | -6.89 | 218.43 | -69.24 | 98.51 | 0.9401 | 126.0 | 41.1 | |
| 1.64 | 3.82 | 2.46 | 5.76 | -6.85 | 217.46 | -70.21 | 98.36 | 0.9457 | 3.2 | -162.4 | |
| 0.00 | 0.45 | 0.00 | 0.69 | -6.73 | 217.31 | -70.36 | 98.23 | 0.9464 | -242.0 | -241.4 | |
| 0.00 | 3.00 | 0.00 | 4.84 | -8.73 | 216.32 | -71.35 | 100.22 | 0.9529 | -455.0 | -446.6 | |
| 1.09 | 3.18 | 1.69 | 4.94 | -7.28 | 216.83 | -70.83 | 98.75 | 0.9494 | -435.2 | -351.2 | |
| 1.45 | 6.36 | 2.37 | 10.36 | -8.44 | 216.06 | -71.61 | 99.88 | 0.9541 | -456.4 | -471.7 | |
| 1.36 | -16.00 | 2.22 | -16.00 | -8.19 | 216.07 | -71.59 | 99.62 | 0.9539 | -549.9 | 999999 | |
| 1.82 | 3.27 | 3.09 | 5.57 | -8.35 | 215.29 | -72.38 | 99.71 | 0.9579 | -391.6 | -380.4 | |
| 8.36 | 45.79 | 13.49 | 73.01 | -6.24 | 216.04 | -71.62 | 97.58 | 0.9530 | -625.4 | -519.6 | |
| 4.45 | 14.17 | 7.57 | 24.16 | -7.18 | 215.19 | -72.48 | 98.48 | 0.9579 | -567.7 | -488.4 | |
| 0.00 | 0.45 | 0.00 | 0.80 | -8.29 | 214.69 | -72.98 | 99.58 | 0.9608 | 1.0 | 5.8 | |
| 2.36 | 8.90 | 4.08 | 15.39 | -6.40 | 214.87 | -72.80 | 97.63 | 0.9591 | -538.3 | -495.5 | |
| 7.27 | 9.72 | 13.17 | 17.59 | -6.38 | 214.01 | -73.66 | 97.54 | 0.9632 | -195.6 | -124.0 | |
| 4.27 | 32.07 | 8.26 | 63.02 | -6.40 | 212.97 | -74.70 | 97.47 | 0.9679 | -149.2 | 179.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
