SDO HMI 2014-07-03 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.41 | 270.95 | 37.75 | 138.01 | 12.09 | 277.45 | -9.66 | 62.74 | 0.2293 | -259.6 | -23.5 | |
|
previous
or next observation for the same group /

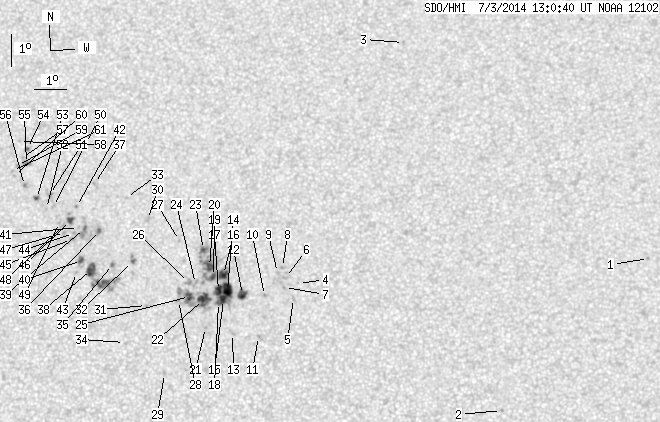

back to the solar disc SDO HMI 2014-07-03 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.50 | 12.42 | 292.50 | 5.38 | 330.47 | 0.1867 | -823.0 | -688.6 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 7.77 | 287.89 | 0.77 | 350.63 | 0.0825 | -916.0 | -722.3 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 19.19 | 284.78 | -2.34 | 7.92 | 0.2807 | -746.0 | -641.7 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 11.66 | 281.58 | -5.54 | 32.44 | 0.1770 | -651.0 | -473.2 | |
| 0.00 | 2.09 | 0.00 | 1.05 | 11.19 | 281.43 | -5.68 | 34.63 | 0.1718 | -776.0 | -646.6 | |
| 0.00 | 2.27 | 0.00 | 1.14 | 11.84 | 281.17 | -5.95 | 33.73 | 0.1834 | -841.0 | -772.7 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 11.53 | 281.14 | -5.97 | 34.82 | 0.1793 | -1138.0 | -918.7 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.15 | 281.07 | -6.05 | 33.24 | 0.1888 | -856.0 | -707.1 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 11.99 | 280.92 | -6.20 | 34.36 | 0.1881 | -702.0 | -581.9 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 11.28 | 280.52 | -6.59 | 38.35 | 0.1823 | -966.0 | -800.0 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 10.02 | 280.36 | -6.75 | 43.86 | 0.1679 | -890.0 | -675.0 | |
| 5.36 | 7.45 | 2.70 | 3.76 | 11.31 | 279.83 | -7.28 | 41.02 | 0.1902 | -1187.2 | -858.5 | |
| 0.00 | 2.91 | 0.00 | 1.46 | 10.11 | 279.55 | -7.57 | 46.71 | 0.1789 | -830.0 | -693.4 | |
| 11.45 | 92.29 | 5.78 | 46.72 | 11.43 | 279.36 | -7.76 | 42.37 | 0.1972 | -1275.9 | -674.1 | |
| 5.27 | -14.00 | 2.66 | -14.00 | 11.15 | 279.24 | -7.87 | 43.79 | 0.1951 | -1157.3 | 999999 | |
| 5.90 | -14.00 | 2.99 | -14.00 | 11.92 | 279.22 | -7.89 | 41.20 | 0.2049 | -1126.7 | 999999 | |
| 6.81 | -14.00 | 3.44 | -14.00 | 11.43 | 279.08 | -8.04 | 43.39 | 0.2004 | -1085.7 | 999999 | |
| 1.45 | -14.00 | 0.73 | -14.00 | 11.06 | 279.09 | -8.03 | 44.68 | 0.1958 | -932.1 | 999999 | |
| 2.36 | -14.00 | 1.20 | -14.00 | 11.86 | 278.91 | -8.21 | 42.50 | 0.2077 | -1116.0 | 999999 | |
| 5.09 | -14.00 | 2.58 | -14.00 | 12.17 | 278.77 | -8.34 | 41.95 | 0.2131 | -1021.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 10.29 | 278.70 | -8.42 | 48.96 | 0.1918 | -871.0 | -640.2 | |
| 9.54 | 38.97 | 4.82 | 19.73 | 11.15 | 278.62 | -8.50 | 45.97 | 0.2027 | -1001.8 | -457.2 | |
| 1.36 | -14.00 | 0.69 | -14.00 | 12.69 | 278.57 | -8.55 | 41.00 | 0.2220 | -920.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 11.64 | 278.35 | -8.77 | 45.10 | 0.2117 | -750.0 | -538.1 | |
| 4.00 | -22.00 | 2.02 | -22.00 | 11.24 | 278.17 | -8.94 | 47.07 | 0.2092 | -783.4 | 999999 | |
| 0.00 | 4.18 | 0.00 | 2.12 | 11.67 | 278.13 | -8.99 | 45.71 | 0.2147 | -698.0 | -555.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 12.96 | 277.80 | -9.32 | 42.59 | 0.2342 | -769.0 | -537.3 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 11.11 | 277.83 | -9.29 | 48.57 | 0.2121 | -775.0 | -584.9 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 8.87 | 277.45 | -9.66 | 58.68 | 0.1950 | -841.0 | -604.1 | |
| 0.00 | 3.09 | 0.00 | 1.58 | 13.61 | 276.76 | -10.36 | 43.71 | 0.2541 | -751.0 | -501.0 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 10.95 | 276.83 | -10.29 | 51.98 | 0.2236 | -708.0 | -550.0 | |
| 0.64 | 4.54 | 0.32 | 2.32 | 12.30 | 276.33 | -10.78 | 48.71 | 0.2443 | 1142.0 | 869.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 14.28 | 276.05 | -11.06 | 43.70 | 0.2703 | -737.0 | -467.4 | |
| 0.00 | 0.36 | 0.00 | 0.18 | 9.81 | 276.17 | -10.94 | 57.89 | 0.2219 | -467.0 | -464.2 | |
| 0.45 | 1.91 | 0.23 | 0.98 | 12.20 | 275.70 | -11.41 | 50.59 | 0.2514 | 1104.2 | 893.5 | |
| 0.82 | 3.18 | 0.42 | 1.63 | 13.25 | 275.24 | -11.88 | 48.53 | 0.2685 | 1102.9 | 874.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 14.71 | 275.00 | -12.11 | 45.13 | 0.2876 | -632.0 | -503.0 | |
| 7.54 | 35.88 | 3.87 | 18.36 | 12.04 | 275.04 | -12.08 | 52.63 | 0.2586 | 1167.2 | 904.7 | |
| 0.64 | 9.54 | 0.33 | 4.91 | 13.31 | 274.76 | -12.36 | 49.47 | 0.2753 | 1182.3 | 820.4 | |
| 1.73 | 5.90 | 0.89 | 3.03 | 12.32 | 274.71 | -12.41 | 52.50 | 0.2658 | 877.8 | 525.0 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 13.34 | 274.56 | -12.55 | 49.82 | 0.2780 | 974.0 | 743.4 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 13.99 | 274.46 | -12.65 | 48.24 | 0.2862 | 942.0 | 817.6 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 11.95 | 274.57 | -12.55 | 53.96 | 0.2641 | 599.0 | 489.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 13.15 | 274.41 | -12.70 | 50.68 | 0.2781 | 855.0 | 701.9 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 12.96 | 274.36 | -12.76 | 51.33 | 0.2769 | 873.0 | 752.9 | |
| 2.36 | 4.91 | 1.22 | 2.53 | 13.55 | 274.29 | -12.82 | 49.79 | 0.2837 | 1133.8 | 859.7 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 13.18 | 274.12 | -12.99 | 51.21 | 0.2821 | 793.0 | 709.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 13.43 | 274.11 | -13.01 | 50.54 | 0.2848 | 751.0 | 631.3 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 13.49 | 273.94 | -13.17 | 50.71 | 0.2876 | 804.0 | 587.0 | |
| 0.00 | 2.27 | 0.00 | 1.18 | 13.98 | 273.72 | -13.39 | 49.82 | 0.2955 | 739.0 | 649.2 | |
| 0.00 | 2.54 | 0.00 | 1.32 | 14.35 | 273.57 | -13.54 | 49.15 | 0.3013 | 1010.0 | 826.4 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 13.91 | 273.50 | -13.62 | 50.44 | 0.2977 | 808.0 | 644.5 | |
| 1.09 | 3.27 | 0.57 | 1.70 | 14.22 | 273.16 | -13.96 | 50.31 | 0.3052 | 962.1 | 813.0 | |
| 0.55 | 2.00 | 0.29 | 1.05 | 15.77 | 272.76 | -14.35 | 47.23 | 0.3264 | 934.3 | 791.2 | |
| 0.00 | 4.09 | 0.00 | 2.14 | 15.31 | 272.76 | -14.35 | 48.35 | 0.3214 | 876.0 | 802.5 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 14.62 | 272.74 | -14.37 | 50.08 | 0.3146 | 863.0 | 746.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 15.49 | 272.62 | -14.50 | 48.17 | 0.3251 | 713.0 | 575.9 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 15.99 | 272.48 | -14.63 | 47.26 | 0.3321 | 505.0 | 404.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 15.24 | 272.47 | -14.64 | 49.05 | 0.3243 | 790.0 | 573.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 14.93 | 272.40 | -14.72 | 49.96 | 0.3221 | 889.0 | 597.4 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 15.08 | 272.32 | -14.80 | 49.72 | 0.3246 | 634.0 | 451.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
